Rough Country 253X User Manual
Page 5

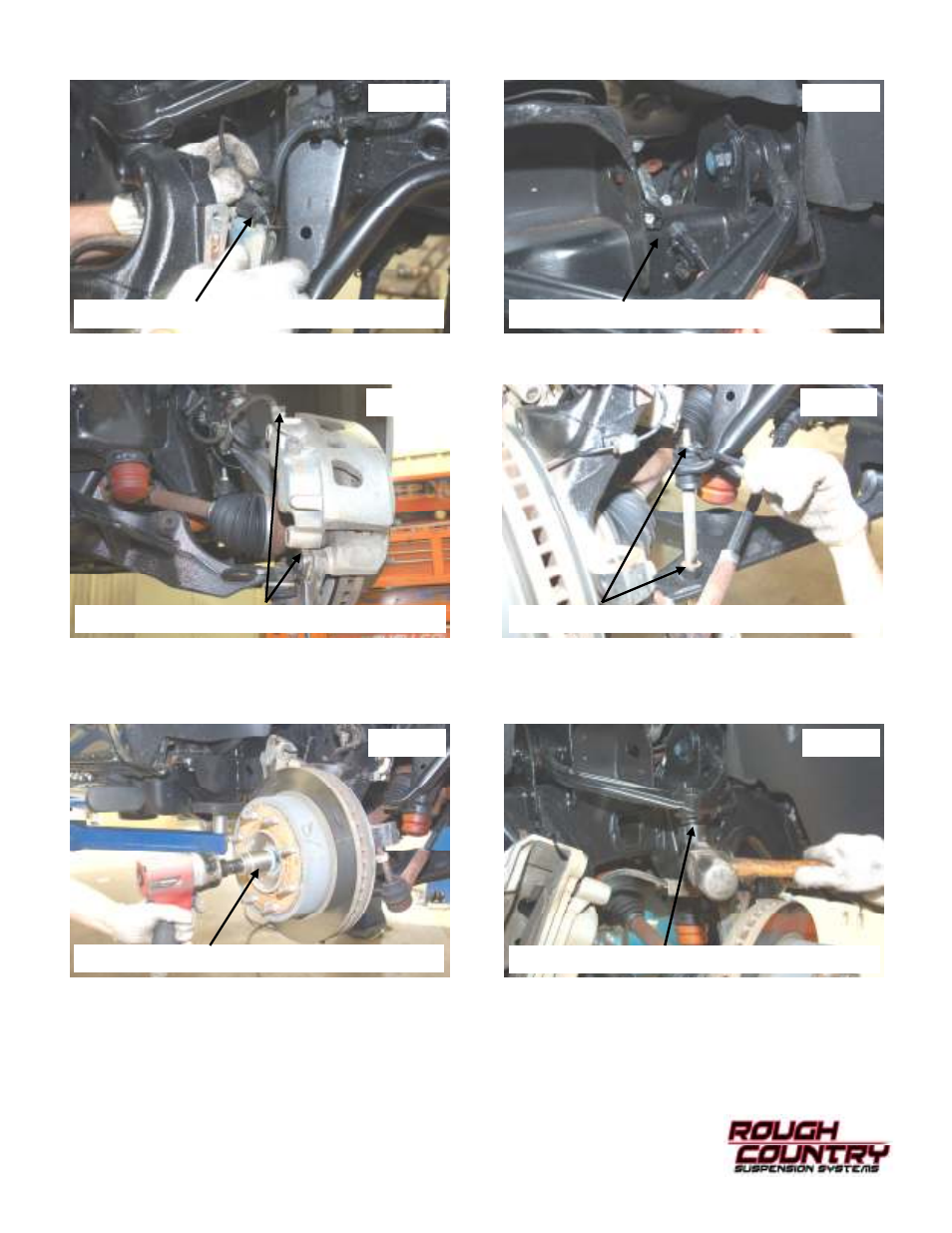

14. Remove the ABS wire from the bracket as shown in Photo 7 and from disconnect at the frame as in Photo 8.
15. Remove brake caliper from the rotor using a 21mm socket / wrench. Retain the factory hardware. See Photo 9.
16. Remove sway-bar link hardware as shown in Photo 10 using a 15mm socket/ wrench. Retain the factory hardware.
17. Remove dust cap using a flat head screwdriver to access the axle nut.
18. Remove axle nut using a 33mm socket. Retain the factory hardware. See Photo 11.
19. Loosen but do not remove the upper ball-joint nut using a 18mm socket/ wrench. Strike the knuckle to release the
ball joint and remove the nut. Retain the factory hardware. See Photo 12.
Photo 7
Photo 8
Photo 9
Photo 10
Photo 11
Photo 12
REMOVE THE ABS WIRE
UNPLUG THE ABS WIRE
REMOVE THE BRAKE CALIPER
REMOVE THE SWAY BAR LINK
REMOVE THE AXLE NUT
REMOVE THE FRONT SHOCKS
