Chapter 3 The Control Panel
The Control Panel
Figure 5 shows the keys, displays, and indicators as they appear on the
control panel. The following section provides the descriptions, and functions
of the control panel keys.
Key combinations are indicated with the plus (+) sign. For example, “Press 
+
” means to press the  key and the  key at the same time.
N7000 and N7000 H-Series Printers

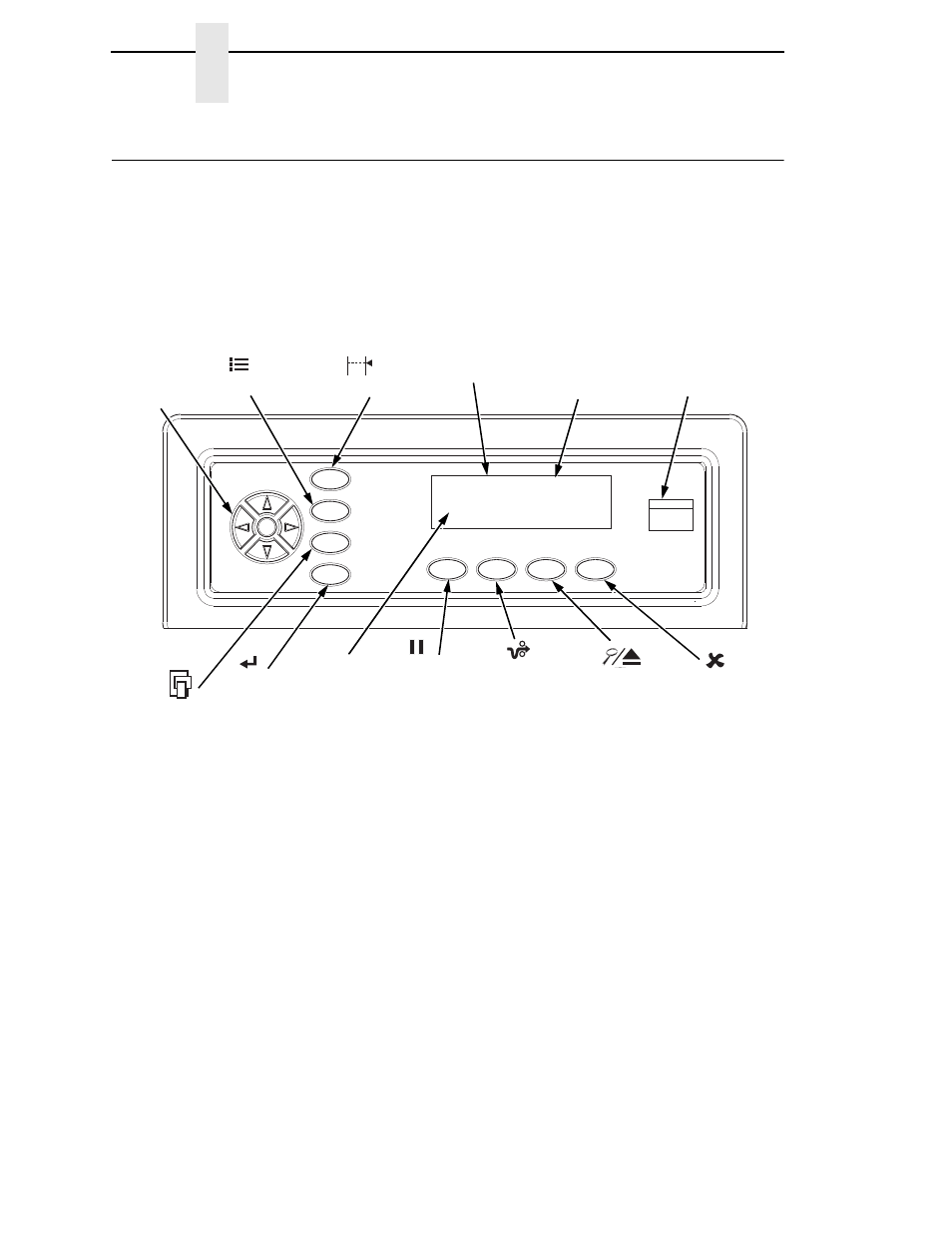

Figure 5. Control Panel
SET TOF
PRT CONFIG
JOB SELECT 1 /
JOB SELECT/PRINT MODE 2
ENTER
ON LINE/
CLEAR PAPER
ADVANCE
VIEW/EJECT
CANCEL
Status Indicator Circular
Pad
ONLINE
RIBBON LIFE 100%
Emulation
Ribbon Life
Indicator
Message Display
NOTE:
1
For N7000 STD printers.
2 For N7000 H-Series printers.
