8 VEGAPULS 56V
Product description
Adjustment with adjustment module
MINICOM
With the (3,2␣ cm␣ x␣ 6,7␣ cm) 6-key adjustment
module with display you can carry out the
adjustment in clear text. The adjustment mod-
ule can be plugged into the radar sensor or
into the optional external indicating instru-
ment.
By removing the adjustment module unau-
thorized adjustments are avoided.
Adjustment with signal conditioning in-
strument VEGAMET
The radar sensors with digital
output signal can be adjusted
beside the PC also with the
signal conditioning instrument
VEGAMET.
For adjustment the digital signal
conditioning instruments VEGA-
MET 514V and 515V are pro-
vided with a 6-key-adjustment
field with display. There the
parameter adjustment can be
carried out in clear text. The
adjustment structure corre-
sponds to the adjustment on
the adjustment module MINI-
COM.
Detachable adjustment module MINICOM
Adjustment with the detachable adjustment module on
the radar sensor or on the external indicating instru-
ment VEGADIS 50
- + ESC
OK
2
4
Tank 1
m (d)
12.345
- + ESC
OK
Tank 1
m (d)
12.345
- +
ESC
OK
Tank 1
m (d)
12.345

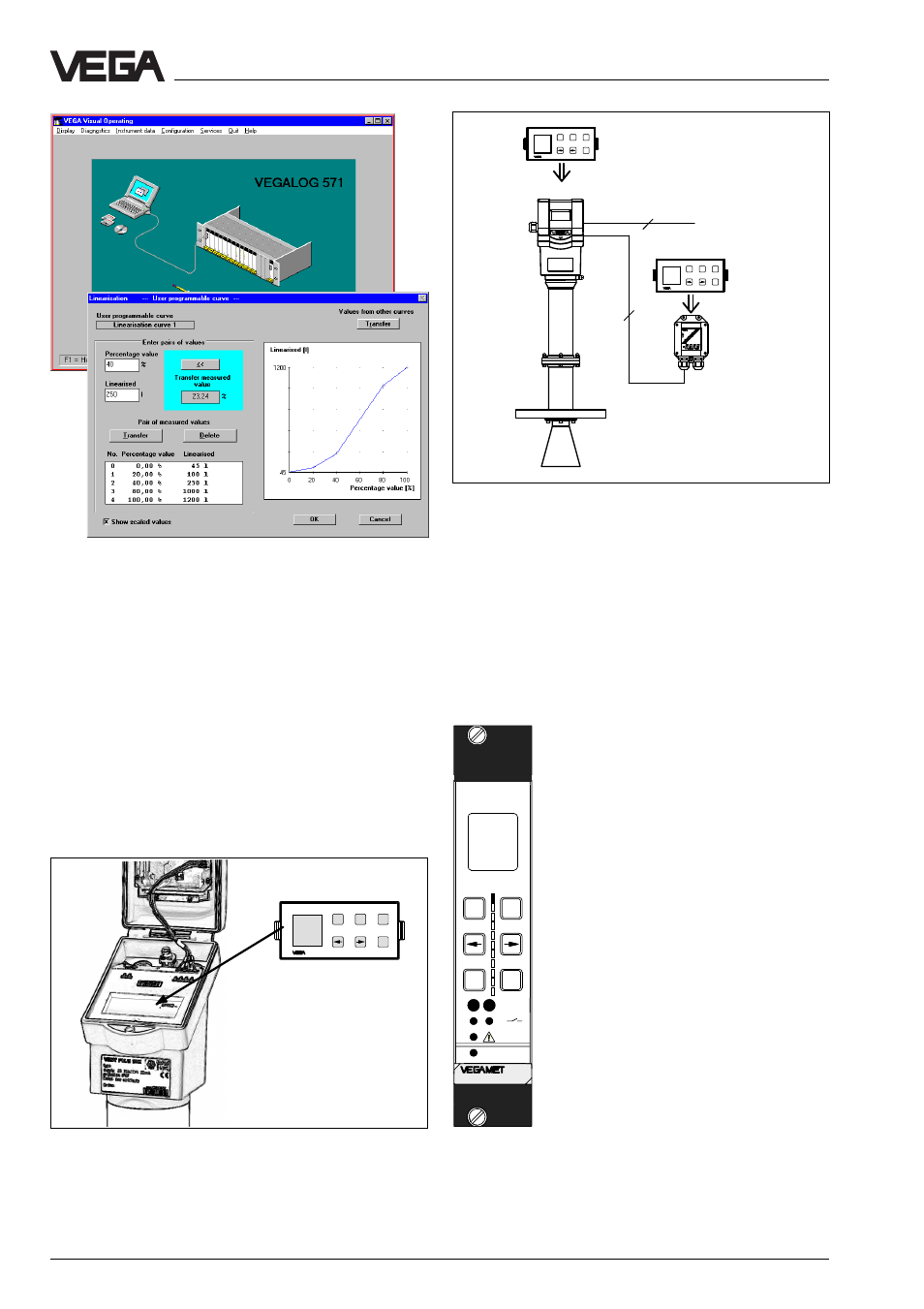

Automatic sensor determination (above figure) and
visualized adjustment, e.g. of a vessel linearisation
curve (bottom figure)
Signal conditioning instru-
ment VEGAMET with 6-key
adjustment field on the
instrument front
ESC OK
- +
1 2
on
100
%
CONNECT
514 Ex
