2 Types and versions
VEGAPULS 56 sensors are a new developed
generation of very compact high temperature
radar sensors. For the first time it is now
possible to carry out a non-contact level
measurement under high temperatures and
pressures. They open the advantages of a
radar level measurement for applications
where the special advantages of radar were
formerly not applicable due to the extreme
process conditions.
VEGAPULS 56 radar sensors dominate the
two-wire technology perfectly. They are the
first radar sensors transmitting the supply
voltage and the output signal via one two-
wire line. As output or measuring signal they
operate with an analogue 4␣ …␣ 20␣ mA-output
signal or with a digital output signal. This
operating instruction describes the sensors
with digital output signal.

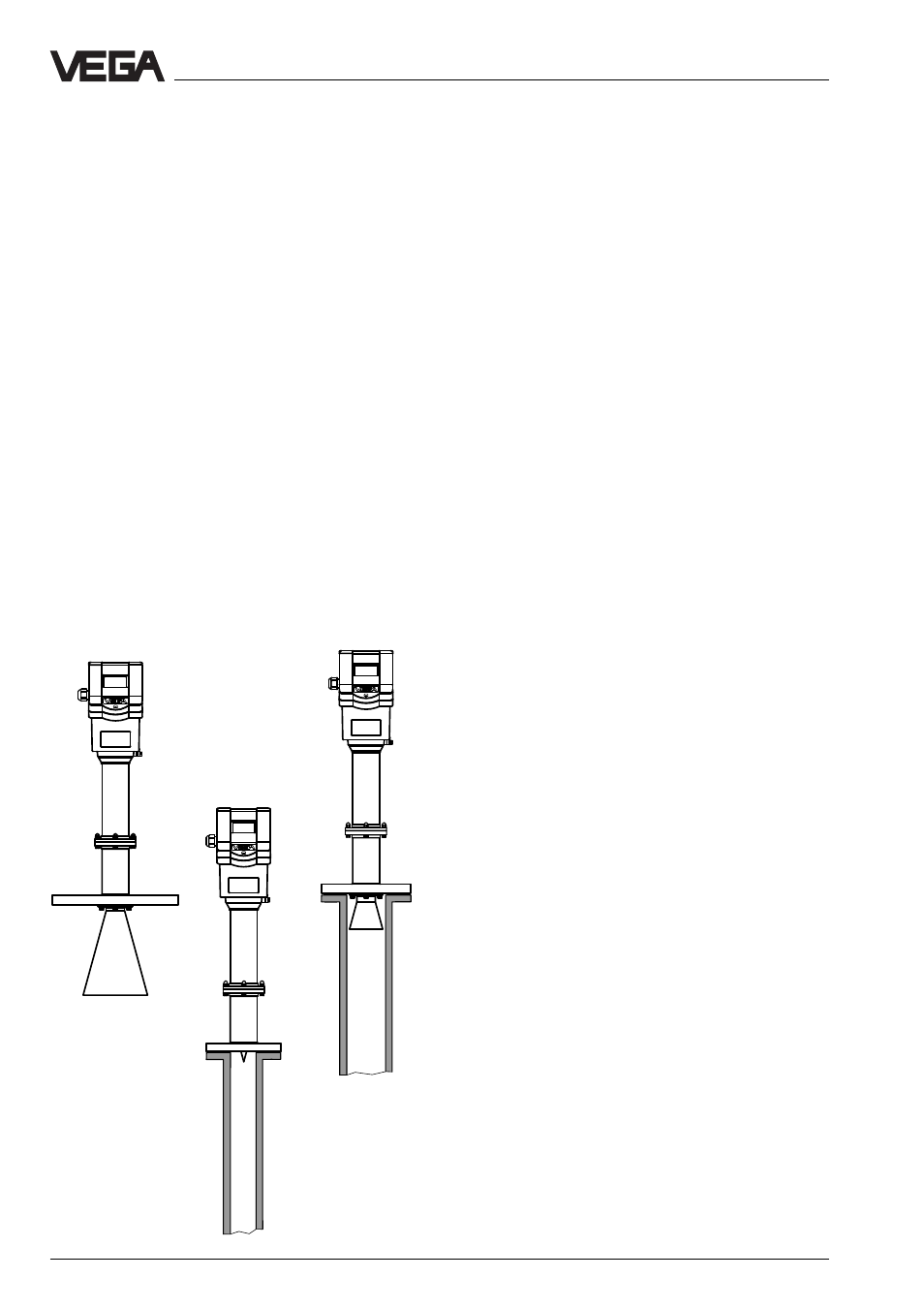

Types and versions
VEGAPULS 56
DN 150
VEGAPULS 56
DN 80 pipe antenna
VEGAPULS 56
DN 50 pipe antenna
2.1 Type survey
General features
• level measurement on processes and
products under high temperatures and
high pressures
• measuring range 0 … 20 m
• Ex-approved in zone 1 and zone 10 (IEC)
or zone 0 and zone 20 (ATEX) classification
EEx␣ ia␣ IIC␣ T6 or EEx d ia IIC T6
• integral measured value indication
• external measured value indication which
can be mounted up to 25 m separated in
Ex-area
Survey of features
Signal output
- digital transmission of measuring signal to
a signal conditioning instrument VEGAMET
or the processing system VEGALOG
Voltage supply
– two-wire technology (voltage supply and
digital signal via one two-wire line)
Process connection
– DN 50; ANSI 2“
– DN 80; ANSI 3“
– DN 100; ANSI 4“
– DN 150; ANSI 6“
– DN 200; ANSI 8“
– DN 250; ANSI 10“
Adjustment
– PC
– adjustment module in the sensor
– adjustment module in external indicating
instrument
– VEGA-signal conditioning instrument
Antennas
– horn antenna with stainless steel horn and
ceramic tip
– standpipe antenna only with ceramic tip or
with small horn and ceramic tip
