56 VEGAPULS 56V

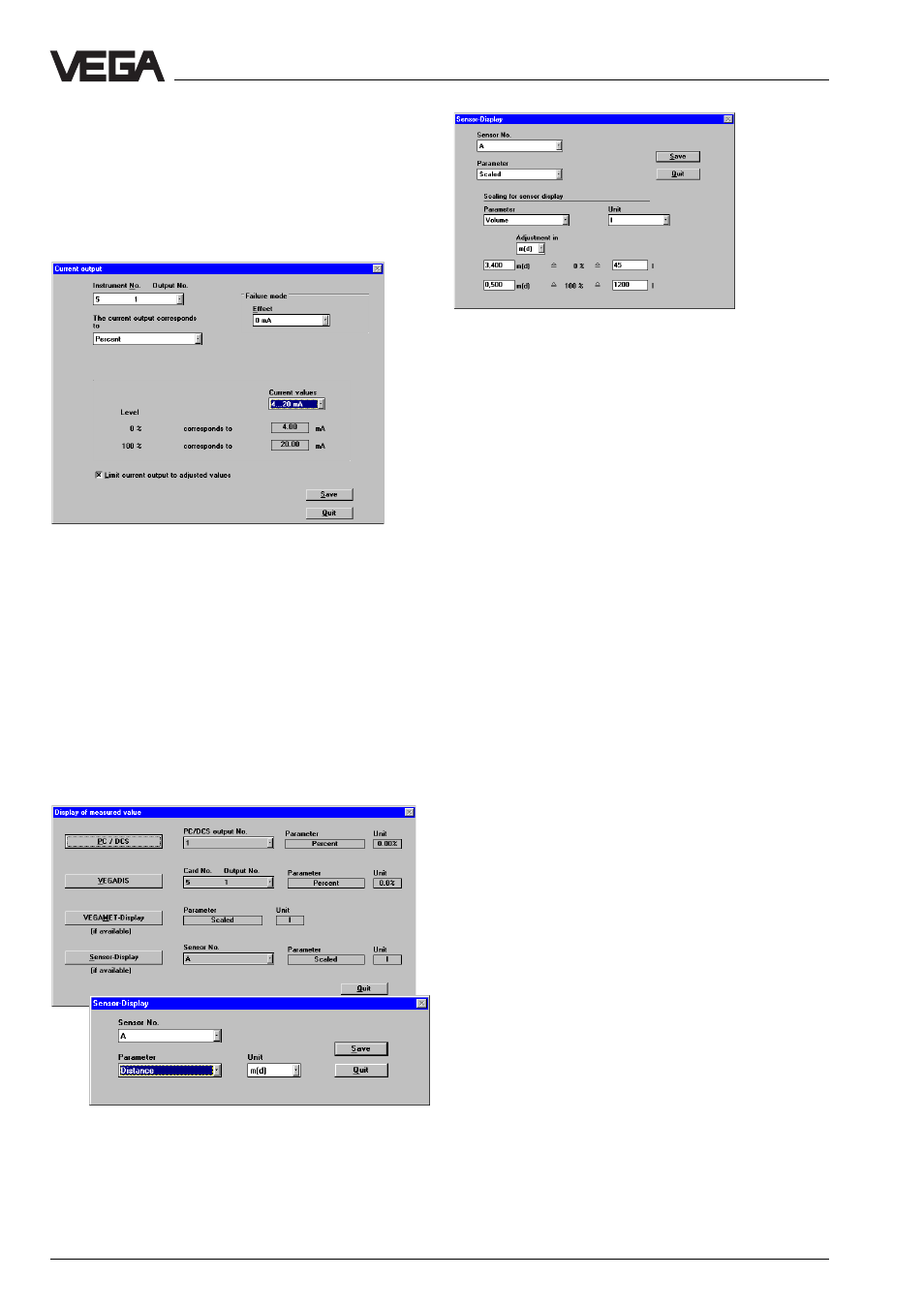

• Choose under " Scaling for sensor display“
e.g. liter.
• Enter the measuring distance in meter,
which you have entered in the min./max.
adjustment and the appropriate liters which
correspond to the min. and the max. value.
In this example this would be 45 liters and
1200 liters.
• Click to "Save“.
• Click in the " Sensor-Display“ to "Quit“.
• Click in the window " Display of measured
value“ to "Quit“.
You are again in the menu window " Outputs“
• Click to "Quit“.
You are again in the menu window " Instru-
ment data parameter adjustment“.
Sensor optimisation
In the menu " Sensor optimisation“ you can
carry out special optimising adjustments of
the sensors and for example optimize the
installation position of the sensor by means of
the echo curve.
Meas. environment
• Choose in the main menu window the menu
"Instrument data/Parameter adjustment“.
• Choose in the menu window " Instrument
data parameter adjustment“ the menu point
"Sensor optimisation“ and then click to
"Sensor A“.
• If you have carried out adjustments in this
menu window, click to "Save“.
• Click to "Quit“.
You are again in the menu window " Outputs“.
• Click in the menu window " Outputs“ to the
menu point "Display of measured value“ and
choose "Sensor-Display“.
• Choose under " Sensor-no“ "A“ and under
" Parameter“ "Scaled“.
Set-up
You are in the menu window " Outputs“.
• Click to "Current output“, to adjust the
signal reaction of the 0/4␣ …␣ 20 mA-output
signal.
