VEGAPULS 56V 7

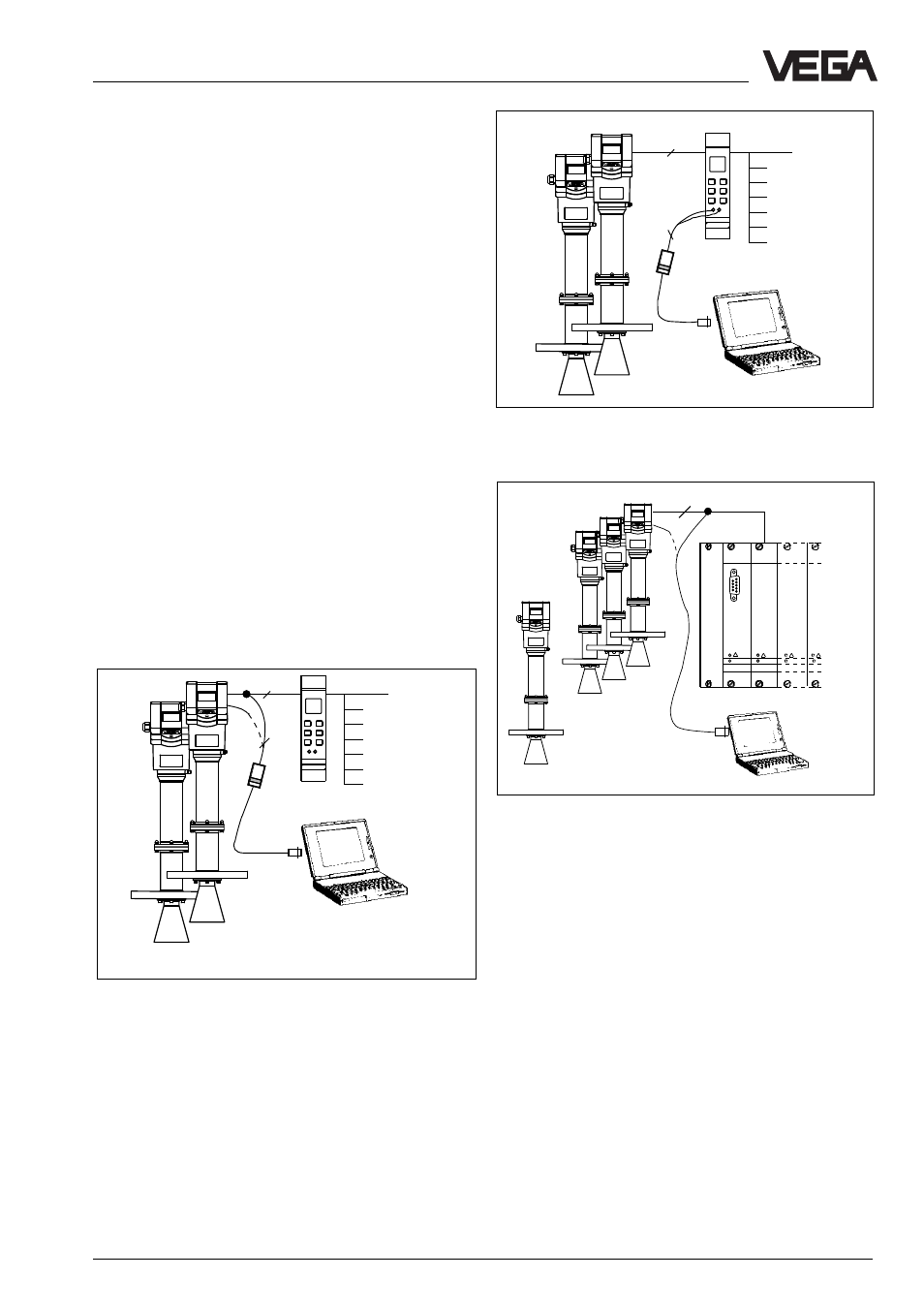

One or two sensors on the signal conditioning instru-
ment; adjustment with the PC on the signal condition-
ing instrument
With the standard cable (RS␣ 232) the PC is
directly connected to the processing system
VEGALOG.
The adjustment and parameter adjustment
data can be saved with the adjustment soft-
ware on the PC and protected by pass-
words. If required the adjustments can be
transmitted quickly to other sensors.
Product description
Adjustment with PC on the digital signal and supply
line between sensors and signal conditioning instru-
ment VEGAMET
1.3 Adjustment
Each measuring distance is different, hence
each radar sensor must be given some
basic information on the application and the
environment.
The adjustment and parameter adjustment of
the radar sensors are carried out with
- the PC
- the detachable adjustment module
MINICOM
- the signal conditioning instrument
VEGAMET
Adjustment with PC
The set-up and adjustment of the radar
sensors is generally made on the PC with the
adjustment program VVO (
V EGA V isual
O perating) under Windows ® .
The program leads quickly through the ad-
justment and parameter adjustment via pic-
tures, graphics and process visualisations.
The PC can be connected to any individual
position of the system or the signal line. It is
hence connected with the two-wire PC-inter-
face converter VEGACONNECT␣ 2 to the sen-
sor or to the signal line.
1␣ …␣ 15 sensors on the processing system VEGA-
LOG. Adjustment with the PC on the digital signal and
supply line to the processing system or on the sen-
sor directly
2
2
2
2
VEGALOG
571 CPU
VEGALOG
571 EA
2
1 ... 15
...
...
