VEGAPULS 56V 35

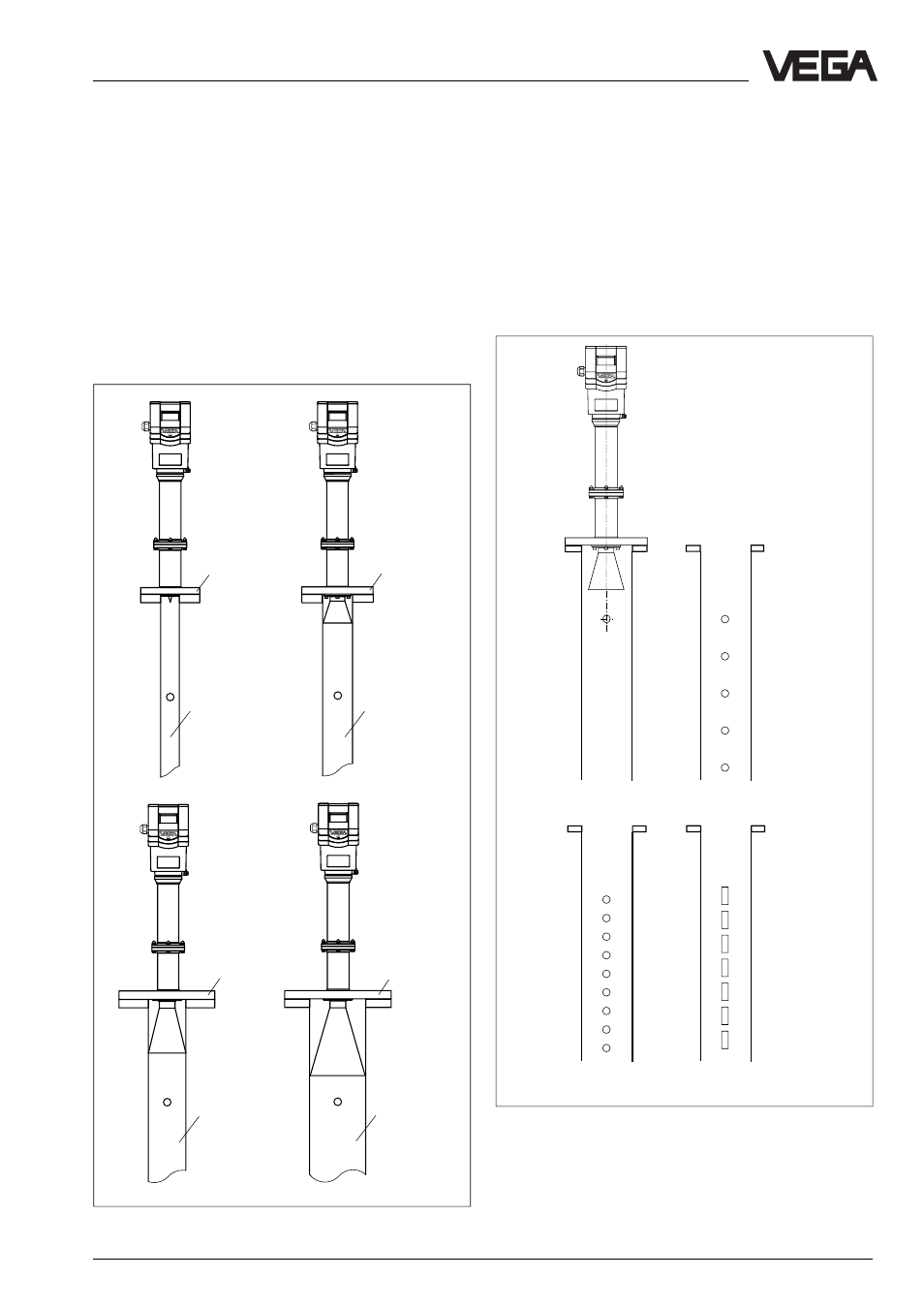

Openings in a surge pipe for mixing of inhomogene-
ous products
Mounting and installation
slightly inhomogeneous
liquids homogeneous
liquids
Pipe antenna with DN 50, DN 80, DN 100 and DN 150
DN 150
DN 80 DN 50
ш 150
ш 80 ш 50
DN 100
ø 100
Adhesive products
When measuring adhesive products, the
inner diameter of the surge pipe must have a
longer nominal width, e.g. 100 mm, so that
build-up does not cause measuring errors.
Surge pipe diameters of DN 50 to DN 150
can be connected.
The more inhomogeneous the measured
product, the closer the openings should be.
strongly inhomogeneous
liquids inhomogeneous
liquids
Standpipe measurement in inhomoge-
neous products
If you want to measure inhomogeneous or
laminated products in a surge pipe, it must
have holes, long holes or slots. These open-
ings ensure that the liquid is mixed and cor-
responds to the other vessel liquid.
