10 VEGAMET 515V
Mounting
2 Mounting
VEGAMET 515V signal conditioning instru-
ment can be either mounted with a socket
module in a carrier BGT 596 or BGT
596 Ex.M or in a single housing type 505 or
506 .
Mounting in carrier
Mount the respective socket module (stand-
ard or Ex version) in your carrier. Wire the
connection of the multipoint connector ac-
cording to the wiring plan.
Module
Multipoint connector DIN 41 612, series F, 33-
pole (d, b, z) with coded pins and mounting
material for mounting in carrier BGT 596 or
BGT 596 Ex.M.
The multipoint connector is available in the
following versions:
- Wire-Wrap standard connection
1.0 x 1.0 mm
- Plug connection 2.8 x 0.8 mm
- Termi-Point standard connection
1.6 x 0.8 mm
- Soldering connection
- Screw terminals 2 x 0.5 mm
2
For further mounting information, see the
operating instructions of the carrier.
Mounting in single housing
Either screw the housing socket directly to
the mounting plate or plug onto a carrier rail
(35 x 15 acc. to EN 50 022 or 32 acc. to
EN 50 035). Connect the terminals according
to the wiring plans on the following pages.
For further mounting information, see the
operating instructions of the housing.
Transparent cover
To protect the instrument against unauthor-
ised adjustment, the front plate of VEGAMET
can be provided with a lockable transparent
cover (supplied with the instrument).
Coding
To prevent an interchanging of the different
signal conditioning instruments, the multipoint
connector of the carrier or the housing can
be equipped with coded pins.
The multiple plug of the signal conditioning
instrument is equipped with corresponding
holes (mechanical coding). An instrument
coding ensures that the different signal con-
ditioning instruments are not interchanged.
The appropriate coded pins are supplied
with each module or housing. Equip the
multipoint connector with these coded pins
acc. to the following table.

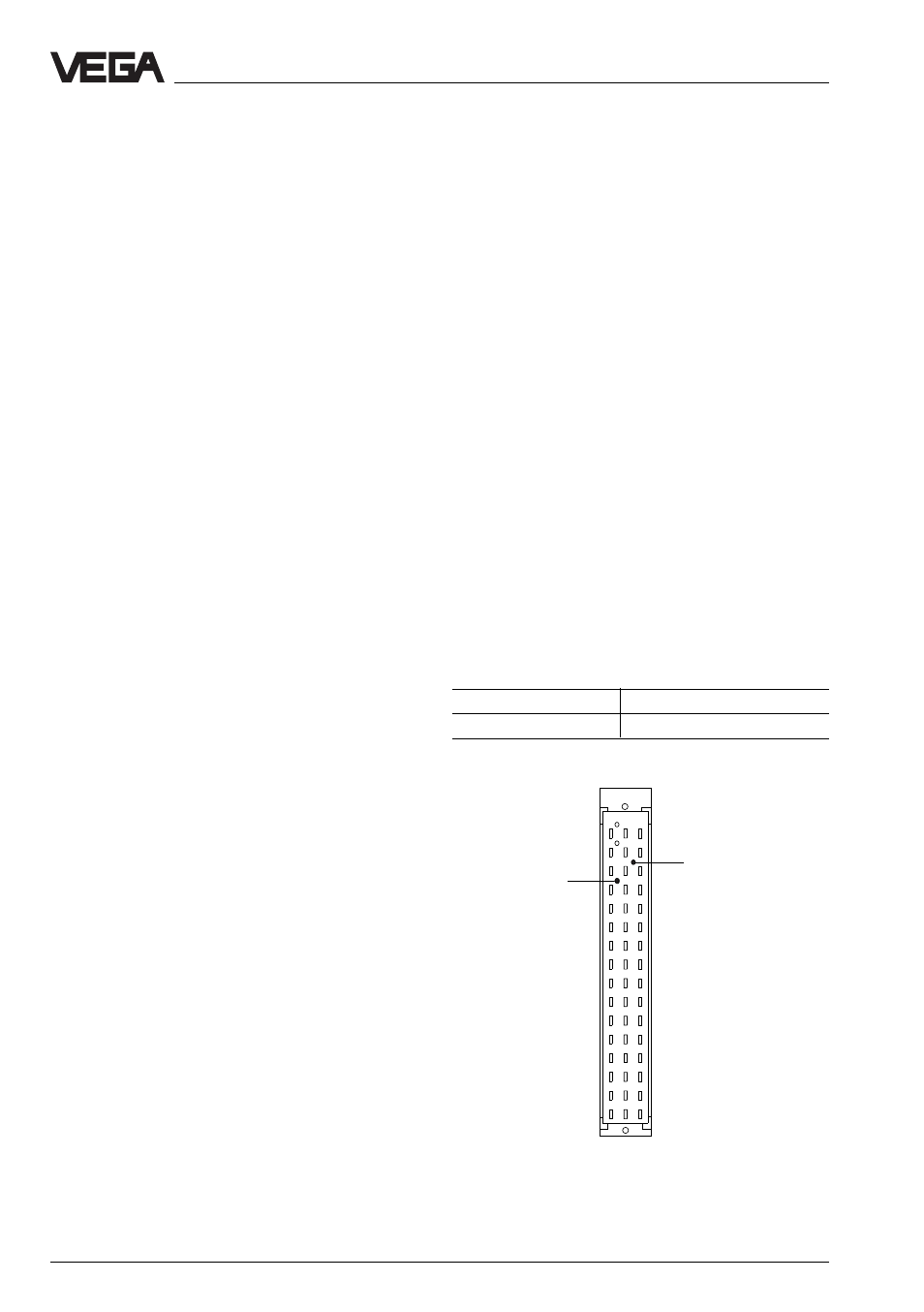

Instrument coding
VEGAMET 515V(N) a7 / c5
o 9 o
z b d
o 1 o
a c
a7
o 3 o
o 5 o
o 7 o
o11o
o13o
o15o
o17o
o19o
o21o
o23o
o25o
o27o
o29o
o31o
c5
