6
© Dana Spicer
Data Sheet
Standard Variant 0.04
Driveshaft
without length compensation with midship bearing
Recommended connection
Companion flanges
- XS : Cross serration according to ISO 8667
Driveshaft flange yokes
- XS : Cross serration according to ISO 12667
Please note:
All values given are nominal. Exact information
should only be obtained from drawing.
* Optional 193,5

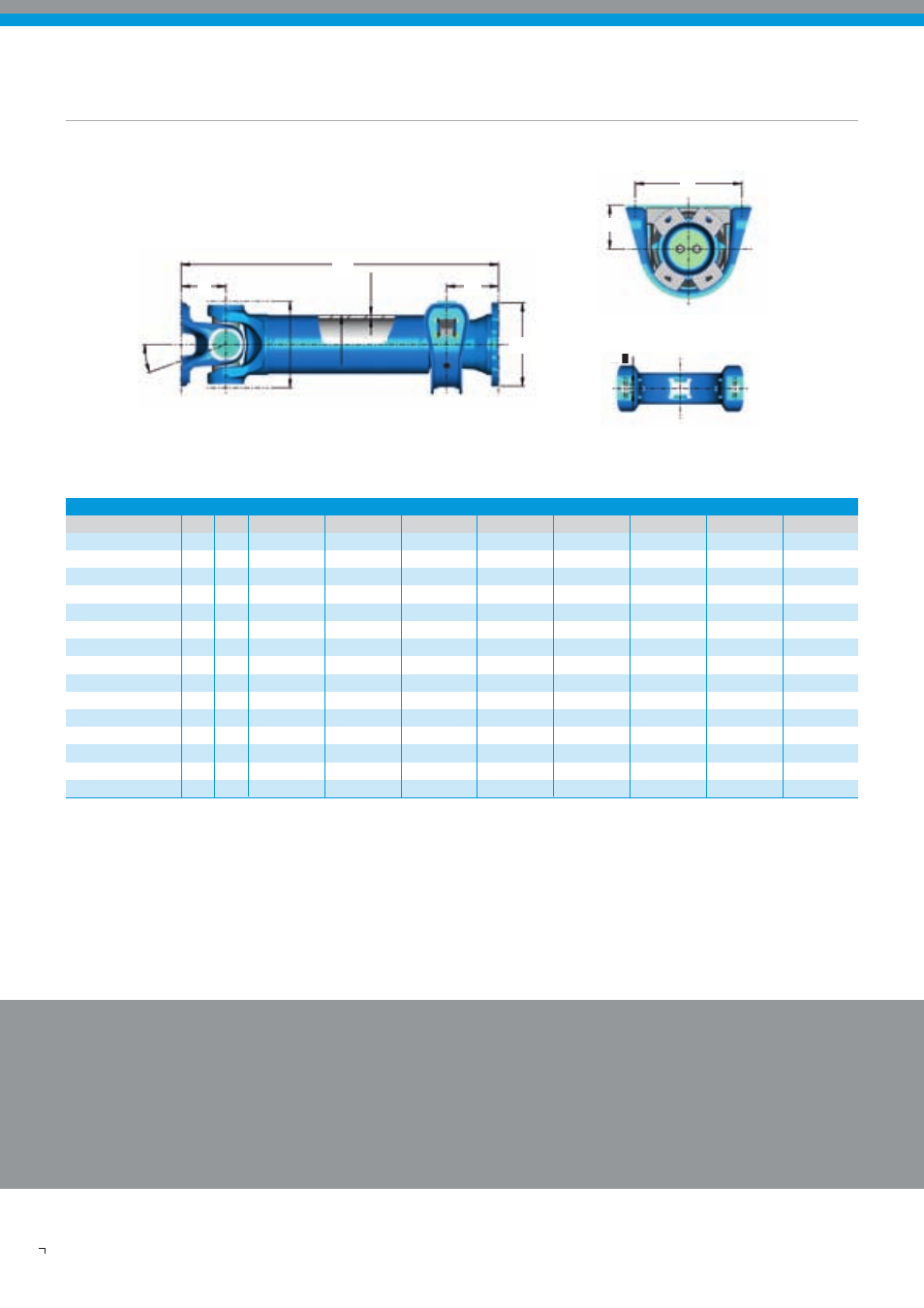

Design
X
N
β
K D
S M Q
A
L
F
d
All applications must be approved by Dana. Specifications and/or design are subject to change without notice or obligation.
Compact 2030 2035 2040 2045 2047 2055 2060 2065
Funktional limit torque T cs kNm 6,5 10,0 14,0 17,0 19,0 25,0 30,0 35,0
Connection - KV 120 KV 150 KV 150 KV 180 KV 180 KV180 KV 180 KV 180
Optional KV 150 KV 120 KV 180 KV 150 KV 150
Flange-ø A mm 120 155 155 180 180 180 180 180
Max. Joint angle ß ° 25 25 25 25 25 25 25 25
Max. Rotation-ø K mm 129 144 160 174 174 178 196 206
Standout M mm 63,5 75 82 87 87 92 100 105
Compressed length L F min. mm 325 324 350 363 363 399 412 425
Tube D x S mm 90 x 3 100 x 3 120 x 3 120 x 4 120 x 5 120 x 6 130 x 6 142 x 6
Joint overhang Q mm 73 80 80 80 80 107 107 107
Hole distance x mm 220* 220* 220 220 220 220 220 220
Drop height N mm 90 90 90 90 90 90 90 90
Hole-ø d kg 15 15 15 15 15 15 15 15
Weight of 1m-shaft G
W
kg 18,8 22,6 25,6 30,2 32,0 37,7 42,8 53,0
Weight of 1m-tube G
R
kg 6,4 7,2 8,7 11,4 14,2 16,9 18,4 20,1
