Issue 5.9.B
IPDirector Version 5.9 – User Manual – Part 2 – Logging
EVS Broadcast Equipment – January 2011
2
1.2.2 O
VERVIEW OF
IP
L
OGGER
IP
L
OGGER
W
INDOW
O
UTLINE

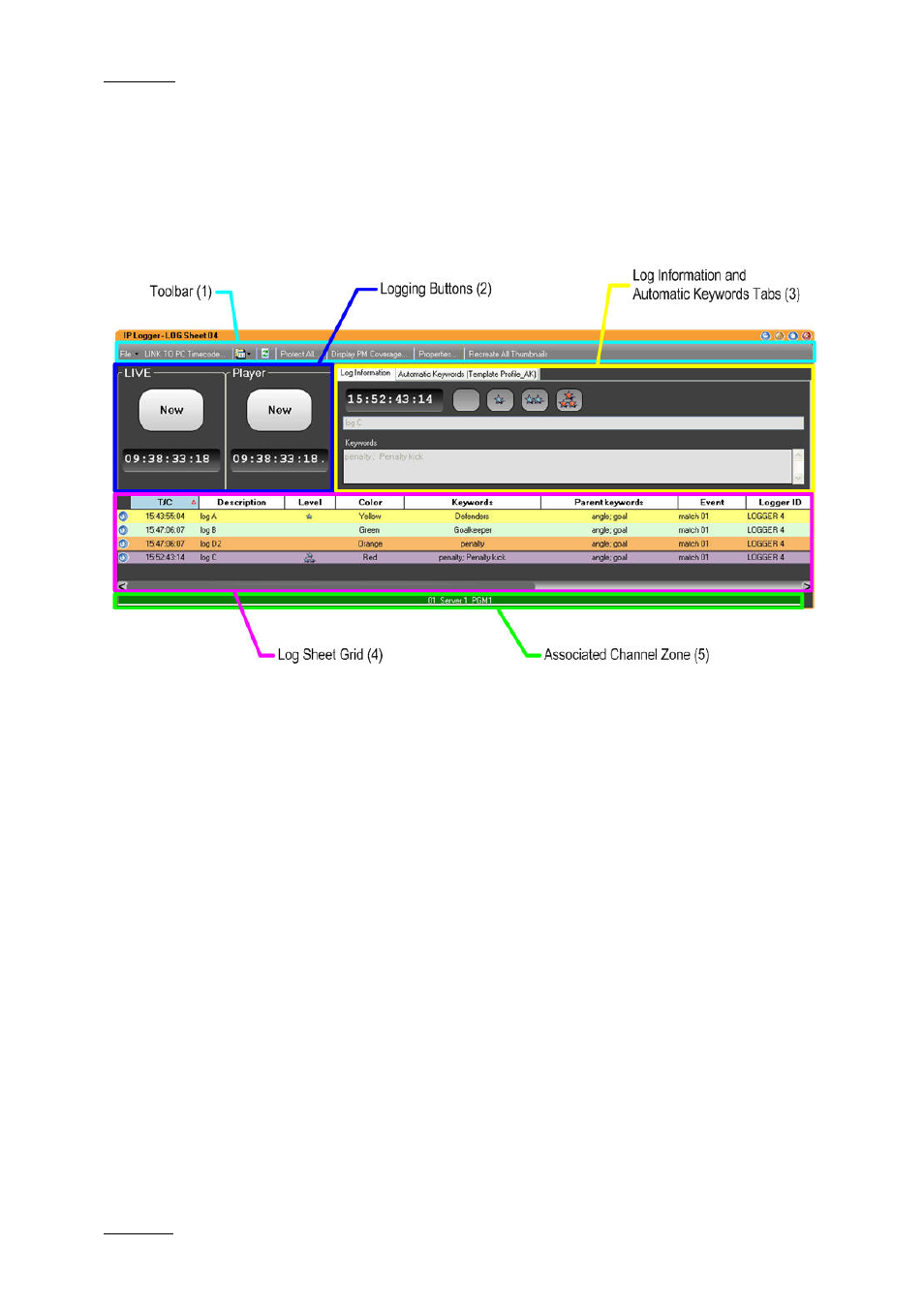

The IP Logger window is resizable vertically and horizontally. It contains five main
areas highglighted in the screenshot below:
T
OOLBAR
(1)
This area, highlighted in light blue on the above outline, provides functions for
performing operations on log sheets and buttons mainly for viewing options.
L
OGGING
B
UTTONS
(2)
This area, highlighted in dark blue on the above outline, provides buttons to log
events.
L
OG
I
NFORMATION AND
A
UTOMATIC
K
EYWORDS
T
ABS
(3)
This area, highlighted in yellow on the above outline, provides two tabs: one with
the log information and one with the automatic keywords which can be defined if a
log sheet profile with automatic keywords fields has been associated to the log
sheet.
L
OG
S
HEET
G
RID
(4)
This area, highlighted in pink on the above outline, displays all log entries in
columns. When all the elements cannot be displayed in the window, vertical and/or
horizontal scroll bars are available in order to move along the elements.
