Issue 2.12.D

XFile Version 2.12 – User Manual

EVS Broadcast Equipment – July 2009

18

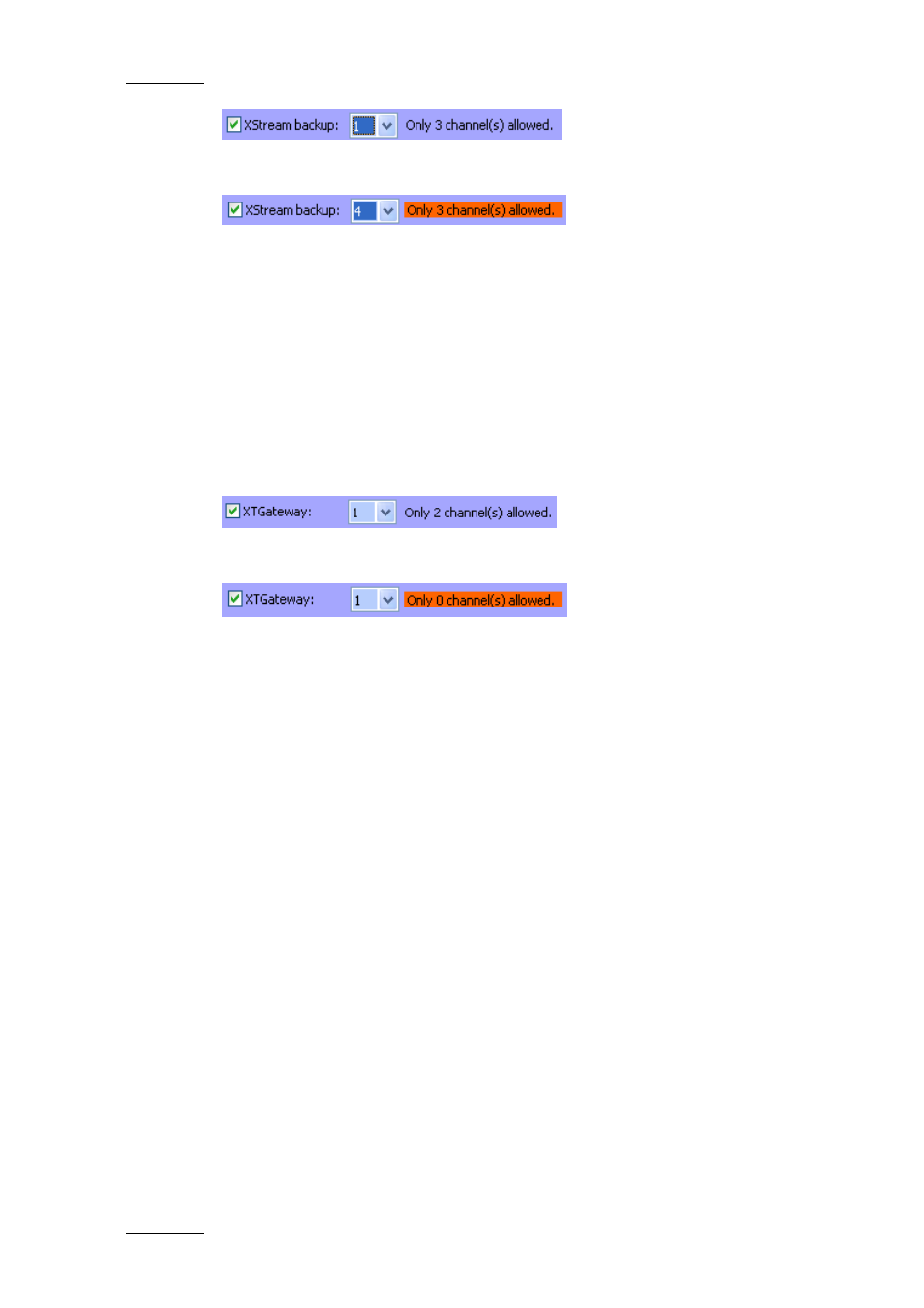

This information is highlighted in red when the number of channels assigned
is higher than the maximum supported number.

If you assign more channels than supported in the defined configuration, the
system will automatically adapt the number of assigned channels when the
configuration is saved.

XT Gateway

Selecting this check box will enable connections with CleanEdit.

You also need to select the number of channels to assign to this function
with the drop-down list on the right of the check box. Possible values are 1

to 7.

Taking into account the backup functions selected above in the dialog box,
the application displays the maximum number of channels which can be
assigned to the XT Gateway.

This information is highlighted in red when the number of channels assigned
is higher than the maximum supported number.

If you assign more channels than supported in the defined configuration, the
system will automatically adapt the number of assigned channels when the

configuration is saved.

The channels assigned to the XStream backup have priority over the ones
assigned to the XT Gateway.

Available Channels

Read-only display of the available channels depending on the backup
functions selected in the dialog box.

OK

Clicking the OK button will confirm and save the defined configuration.

Cancel

Clicking the Cancel button will cancel the changes and brings the users
back to the XFile Config System window.
