1.3.2 Additional Specifications
Rise Time (No Load, Full Load): 1 7.5V to 60V models: 100 ms; 100V to 600V models: 170 ms
Fall Time (No Load): 2 7.5V to 60V models: 3 s; 100V to 600V models: 4 s
Fall Time (Full Load): 3 7.5V to 60V models: 100 ms; 100V to 600V models: 170 ms
Voltage Mode Transient Response: 4 <3 ms
Time Delay from power on until output stable 7 s maximum
1.3.3 Input Conditions
AC Input Voltage Ranges 85-130Vac or 190-264Vac, 1 1 (20A maximum at 120Vac;
10A maximum at 230Vac)
Auto range select function.
Source Frequency 47-63Hz
Power Factor 0.65 minimum at full load and 100Vac input;
0.55 minimum at full load and 200Vac input

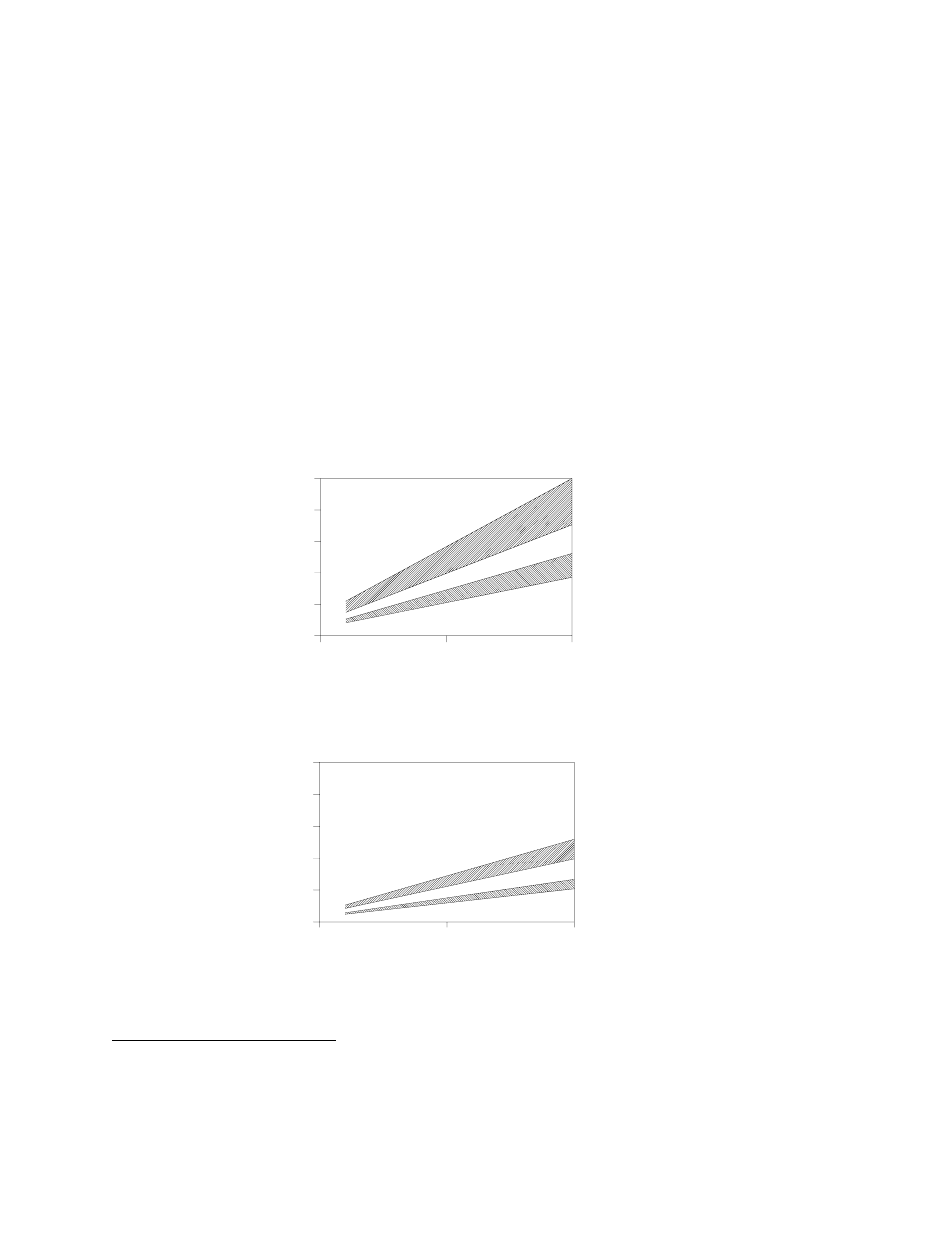

Figure 1.3-1 Typical Input Current Characteristics, 85-130Vac Range
(Based on 60V, 20A model.)
Figure 1.3-2 Typical Input Current Characteristics, 190-264Vac Range
(Based on 60V, 20A model.)
1 Measured with stepped 0-10V analog programming source and a resistive load.
2 Measured with stepped 0-10V analog programming source and a resistive load.
3 Measured with stepped 0-10V analog programming source and a resistive load.
4 Time for the output voltage to recover within 0.5% of its previous level after a step change in load current of 10% to 90% of
rated output. Load slew rate <6A/ 2 s.
