200S i

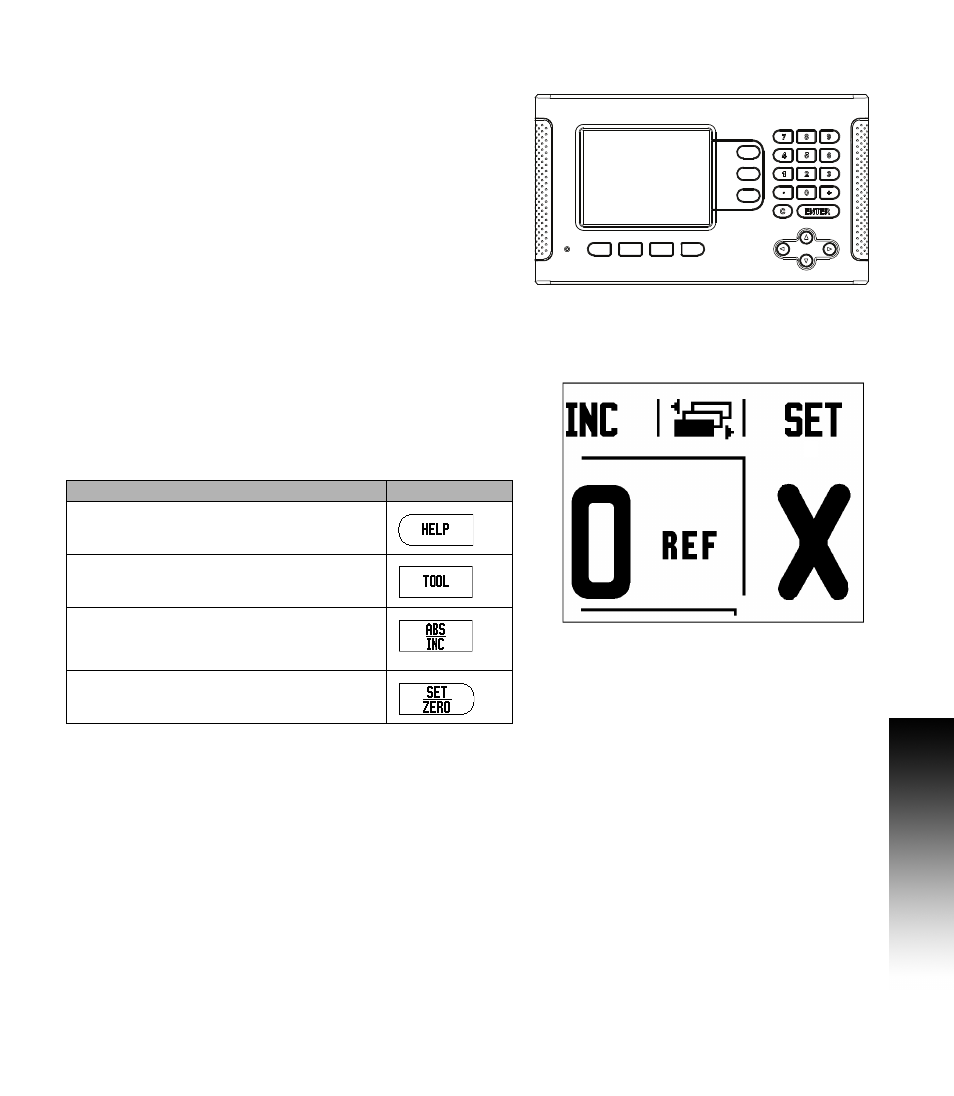

200S Key Layout
200S Soft keys
There are multiple pages of soft key functions to select from the
operating modes. Use the LEFT/RIGHT arrow keys [4] to cursor
through each page. The page indicator in the Status Bar will show the
page orientation. The darkened page indicates the page you are
currently on.
1 Display Area
2 Soft keys
3 Power Indicator light
4 Arrow Keys: Use the UP/DOWN keys to adjust the
screen contrast.
5 Axis Keys
6 Numeric Keypad
7 ENTER key
8 CLEAR key
1 Page Indicator
2 Set Zero Indicator
Soft Key function (Page 1) Soft key
Opens on-screen help instructions.
Opens the Tool Table. Page 21 for Milling, and
page 46 for Turning.
Switches display between operating modes
Actual Value (Absolute) / Distance-to-Go
(incremental). See page 12.
Toggles between Set/Zero functions. Used
with individual axis keys (page 19).
1 1
1 2 1 4
1 5
1 6
1 7 1 8
3
1 1
1 2
