200S 61
II - 1 Installation Set
u

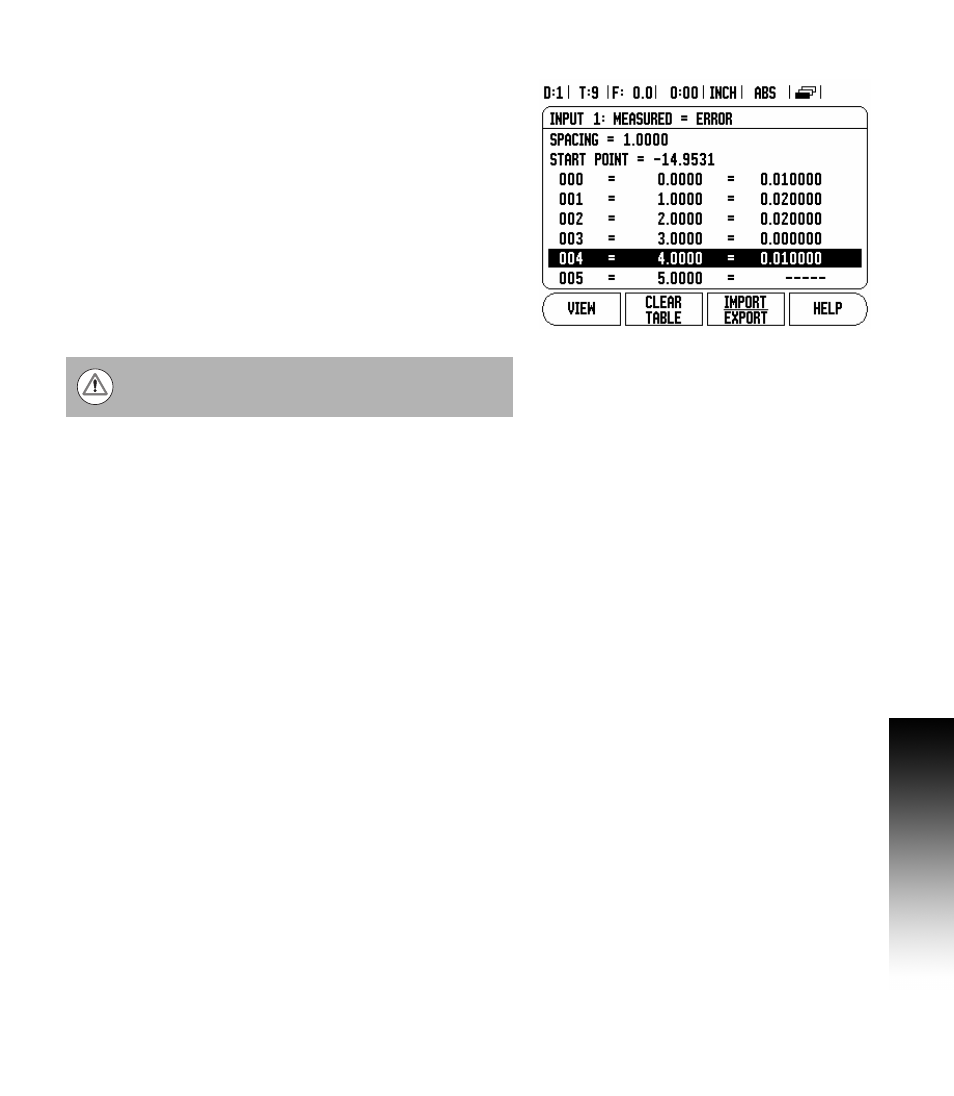

p Setup procedure for Non-linear Error
„ The encoder has an inherent count direction. This may not reflect
the user defined count direction, and is only required for
determining the non-linear error compensation.
To establish the inherent count direction for any installed encoder on
a given axis, complete the following:
8 Open the Encoder Setup form, and select the encoder on the axis
that is to be addressed.
8 Arrow down to high light the count direction.
8 Use the POSITIVE/NEGATIVE soft key and select Positive. Press
enter.
8 Using the C key, return to the main display
8 Move the axis that the encoder is mounted on, and note the
direction of movement required for the positive direction.
„ The encoder’s inherent count direction is now established.
Single reference mark encoders must cross the same
reference mark each time the DRO is powered on.
