Entering a tool:

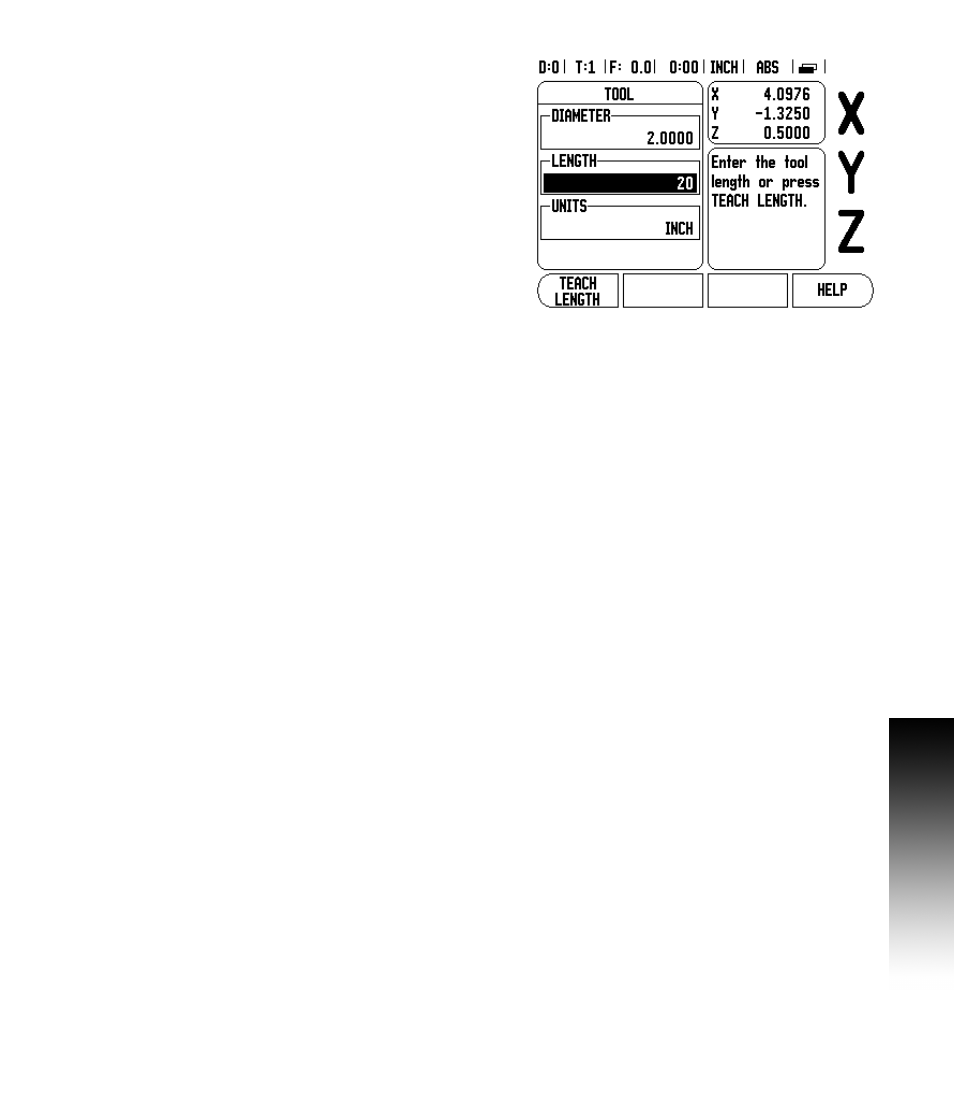

8 Press the TOOL. soft key. The cursor will default to the Tool Table
form.
8 Cursor to the tool you want to define or enter the tool number. Press
ENTER.
8 Enter the tool diameter, for example (2).
8 Press the DOWN ARROW key.
8 Enter the tool length, for example, (20).
8 Press the DOWN ARROW key.
-ALTERNATIVE METHOD -
It is also possible to have 200S determine an offset. This method
involves touching the tip of each tool to a common reference surface.
This allows 200S to determine the difference between the length of
each tool.
8 Move the tool until its tip is touching the reference surface.
8 Press the TEACH LENGTH soft key. 200S will calculate an offset
relative to this surface.
8 Repeat the procedure for each additional tool using the same
reference surface.
8 Press ENTER.
