200S 39
I - 3 Milling Specific Oper
ations
Circle, or Linear Pattern Execution
8 To execute a circle, or linear pattern, enter the data in the pattern
form to be executed.
8 Press the ENTER key.
„ The 200S then calculates the positions of the holes. It can also
provide a graphical view of the hole pattern.

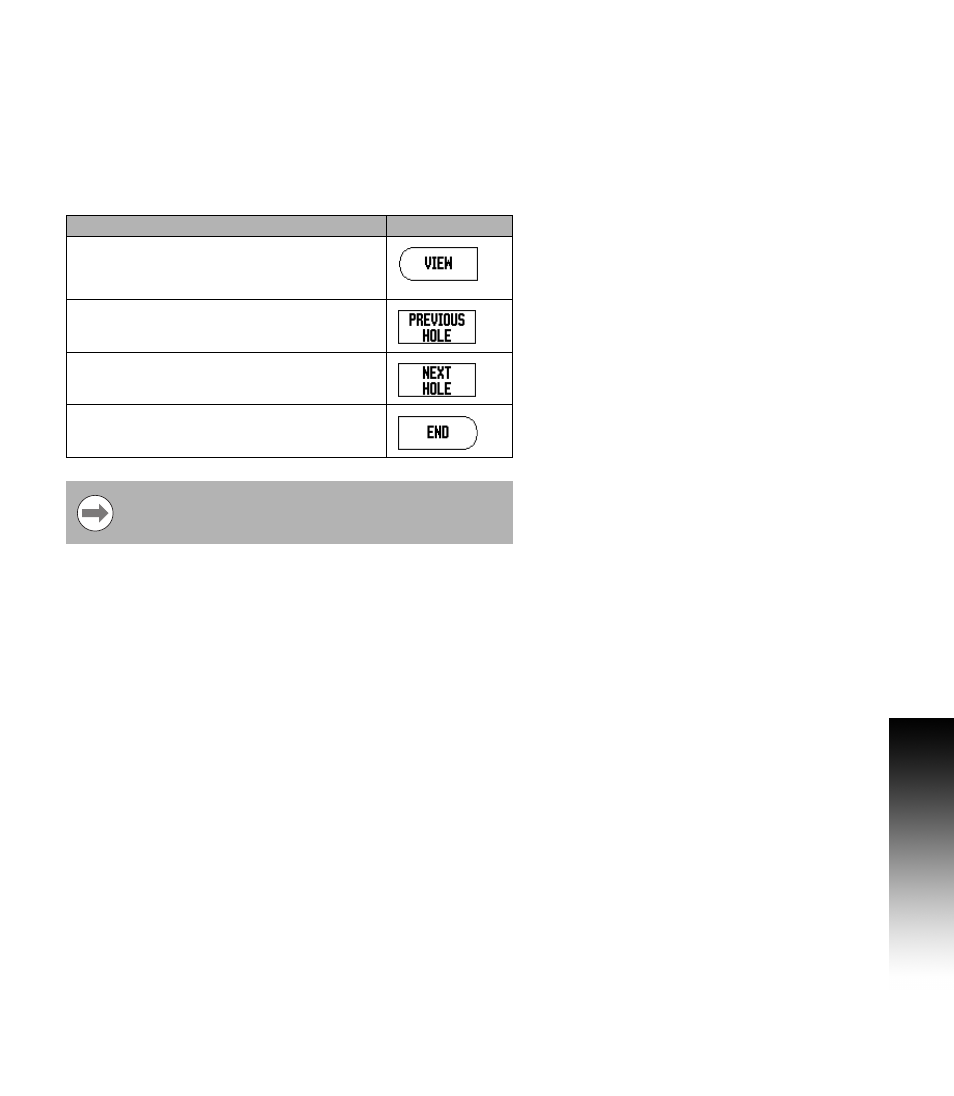

The following soft keys are available while running a Circle, or
Linear Pattern
Function Soft key
Press to select the graphic view of the pattern.
Available in both incremental DRO, or
absolute DRO.
Press to select the previous hole in the pattern.
Press to select the next hole in the pattern.
Press to end execution of the pattern.
Press the VIEW soft key to toggle the views between
distance-to-go positions, graphic view, and
absolute positions.
