38 I
I - 3 Milling Specific Oper
ations
Circle, and Linear Pattern Soft keys
The following additional soft keys are available while in the Circle, and
Linear Pattern Milling feature.
Circle Pattern Information Required
„ Type: type of pattern, FULL, or SEGMENT.
„ Holes: number of holes in the pattern.
„ Center: location of the center of the hole pattern.
„ Radius: radius of the pattern.
„ Start Angle: angle between X axis and the first hole.
„ End Angle: angle between X axis and the last hole.
„ Depth: the target depth for drilling in the tool axis.

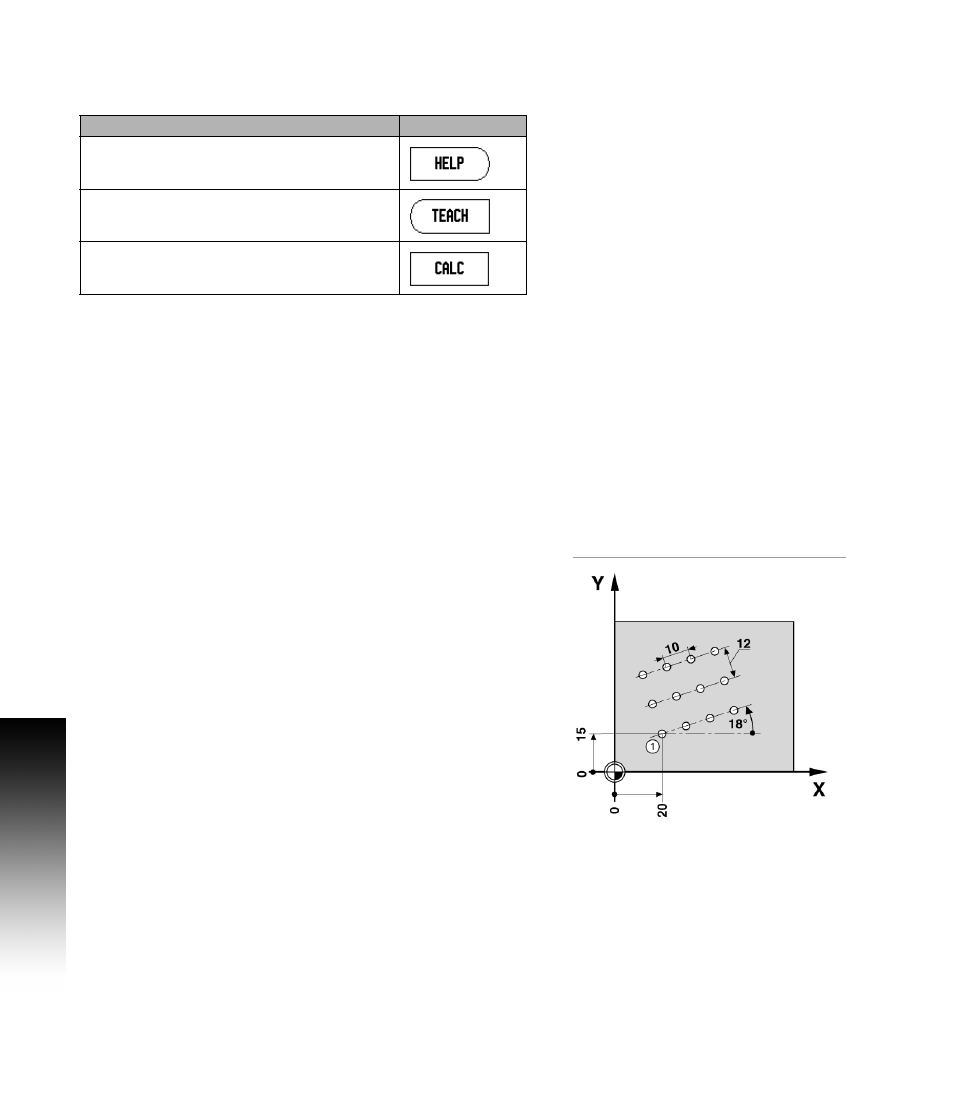

Linear Pattern Information Required
„ Type: type of pattern, ARRAY or FRAME.
„ First Hole: location of the first hole of the pattern.
„ Holes per Row: number of holes in each row of a pattern.
„ Angle: the angle, or rotation of the pattern.
„ Depth: the target depth for drilling in the tool axis.
„ Number of Rows: the number of rows in the pattern.
„ Row Spacing: the spacing between each row of the pattern.
Function Soft key
Press HELP for additional information about
the pattern.
Press to use the current absolute position.
Press to open the Calculator for standard math, and
trigonometry functions.
