On-Chip Frame Buffer Size This item allows you to select the memory buffer for on-chip graphics.
Boot Display This item allows you to select the display mode in booting.
Panel Type This item allows the user to define the panel resolution.

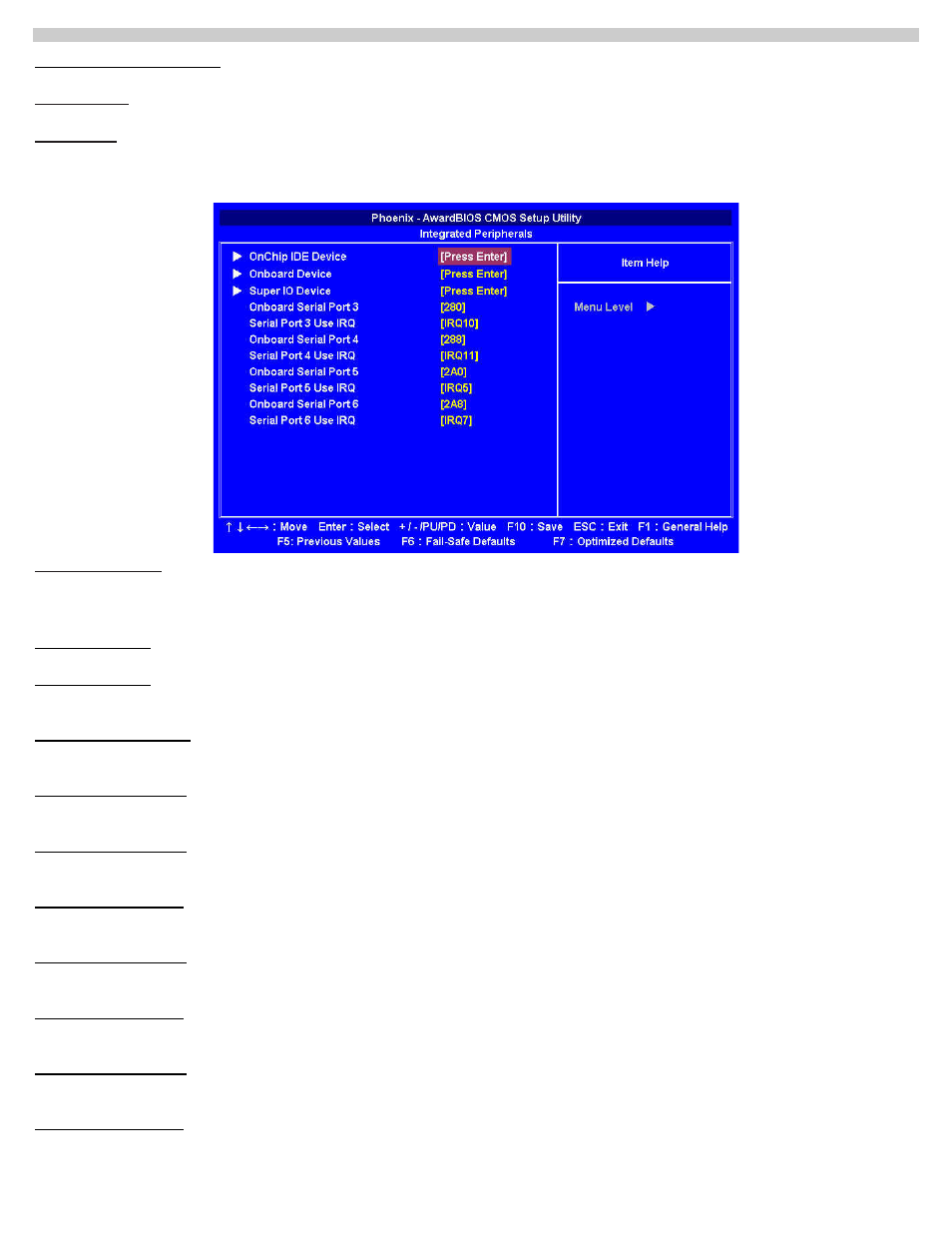

4.5. Integrated Peripherals
OnChip IDE Device
This item enables users to set the OnChip IDE device status, including IDE devices and setting PIO and DMA access modes. Some chipsets
support newer SATA devices (Serial-ATA)
Onboard Device This item enables users to set the Onboard Device status, including USB AC97, MC97 and LAN devices.
Super IO Device This item enables users to set the Super IO device status, including Floppy, COM, LPT, IR and to control GPIO and Power
fail status.
Onboard Serial Port 3 Lets you modify the serial port parameters when the serial port 3 uses the onboard I/O controller. The options are:
Disabled, 280, 288, 2A0 and 2A8.
Serial Port 3 Use IRQ Lets you specify the parameter for Serial Port 3 use IRQ. The options are: IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10
and IRQ11.
Onboard Serial Port 4 Lets you modify the serial port parameters when the serial port 4 uses the onboard I/O controller,. The options are:
Disabled, 280, 288, 2A0 and 2A8.
Serial Port 4 Use IRQ Lets you specify the parameter for Serial Port 4 use IRQ. The options are: IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10 and
IRQ11.
Onboard Serial Port 5 Lets you modify the serial port parameters when the serial port 5 uses the onboard I/O controller. The options are:
Disabled, 280, 288, 2A0 and 2A8.
Serial Port 5 Use IRQ Lets you specify the parameter for Serial Port 5 use IRQ. The options are: IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10 and
IRQ11.
Onboard Serial Port 6 Lets you modify the serial port parameters when the serial port 6 uses the onboard I/O controller. The options are:
Disabled, 280, 288, 2A0 and 2A8.
Serial Port 6 Use IRQ Lets you specify the parameter for Serial Port 6 use IRQ. The options are: IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10 and
IRQ11.
