AcuPanel 12 User Manual
1.6. Stand Installing Instruction(Option)
1.6.1. Physical Dimensions

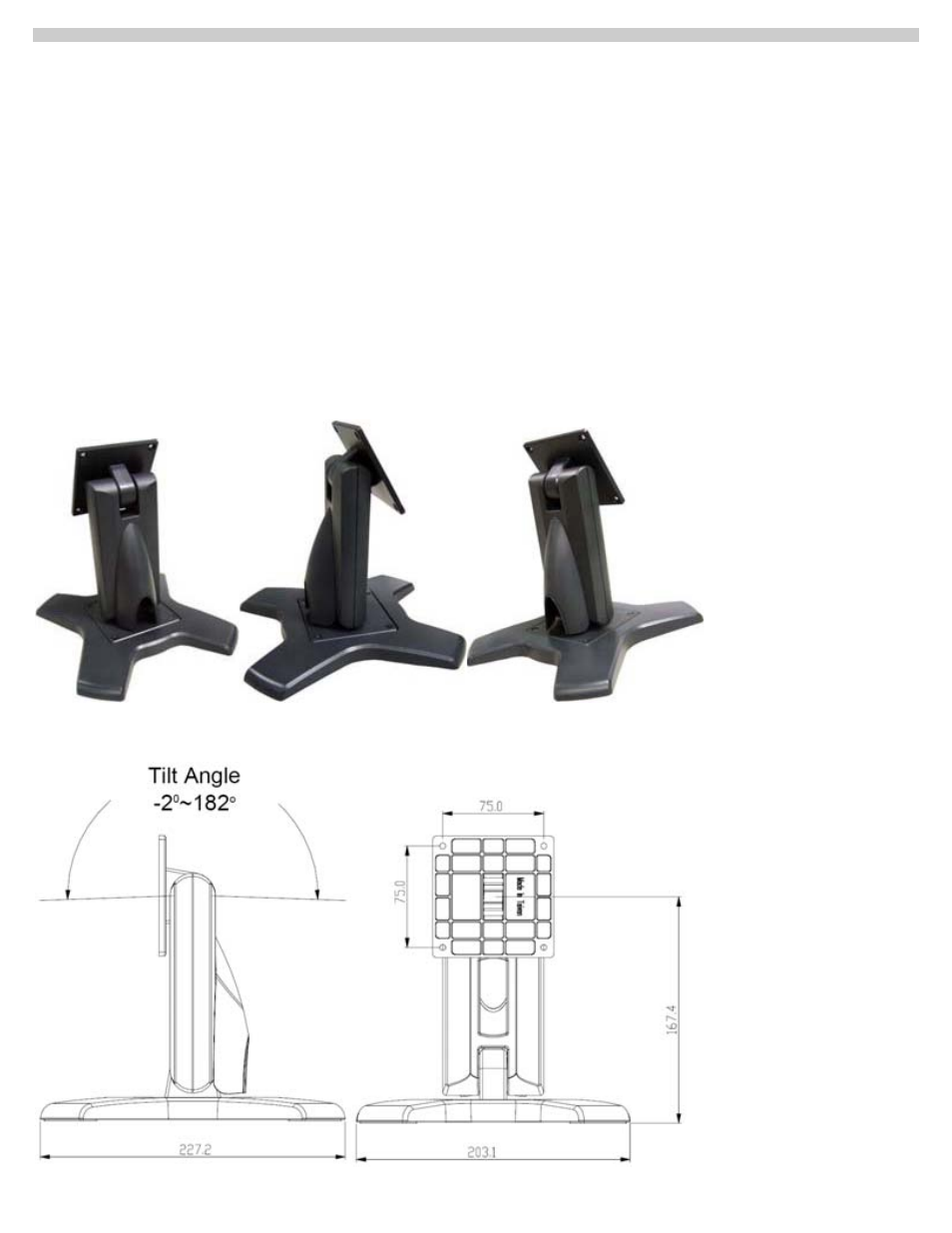

Your panel PC is equipped with stand to fit your flexibility and necessity and let you execute your system comfortably. The
following drawing shows you detailed information for the dimensions.
SPECIFICATIONS
Max. wall mount hole pitch 75*75mm
Screw type M4
Material Steel/Aluminum
Dimension(W*H*D) 203.1*227.2*167.5 mm
Weight 1.8Kg(4lbs)
Tilt 2°(down)~182°(up)
Support max. weight 13kg(28lbs)
Dimensions (units in mm)
