1.6.2. Stand Installation

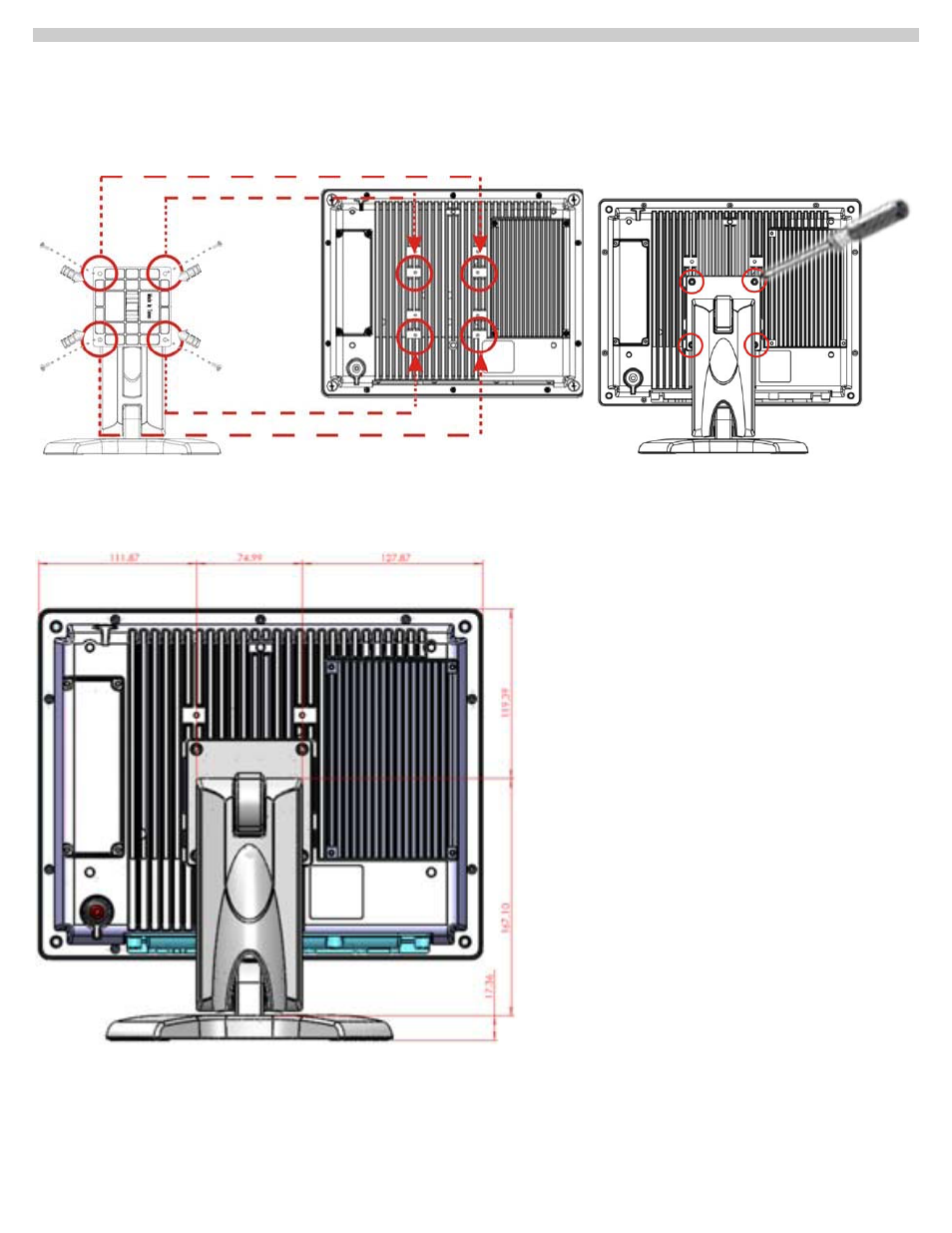

To install the stand into AcuPanel12 System:
1. Align the hole on the stand to the hole on the rear side of AcuPanel12 system.
2. Then stick them by rotating and tightening the screws securely and firmly.
After the stand is installed to the system, please find the dimension for different angles as listed below. (units in mm)
Dimensions in Rear View
