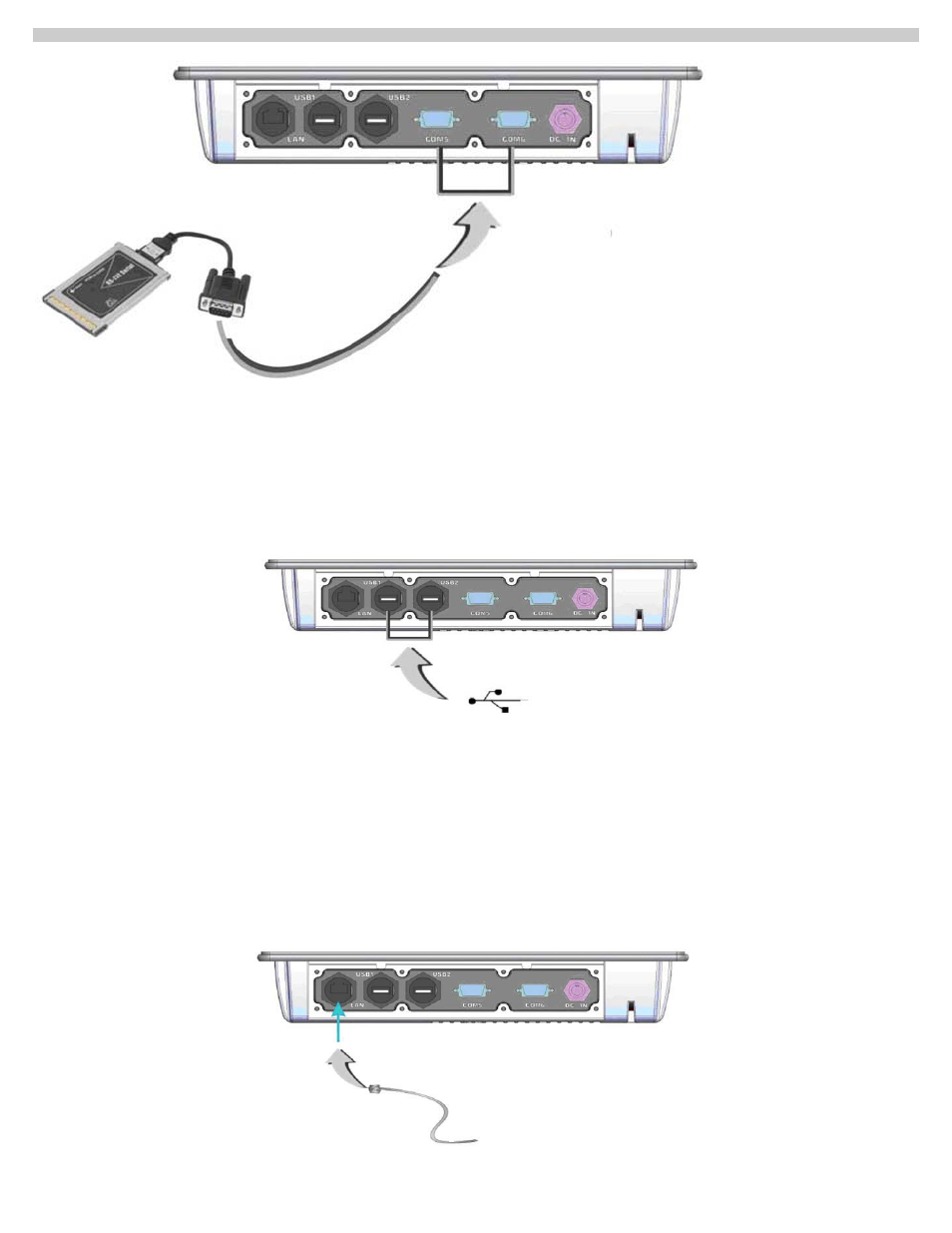

3.4 Using the USB Ports
An external USB device may be connected to the system through the
4-pin USB ports located on the bottom side of the system unit.
1. Connect the external device to the system.
2. The USB ports support hot plug-in connections. Install the device driver before using the device.
3.5 Using the LAN Port
This unit comes with an internal 10Base-T/100Base-TX LAN module that connects your panel PC to other computers/networks through a local
area network (LAN) and supports data transfer rates at 10Mbps and can be up to 100Mbps. The 10Base-T standard also called Twisted Pair
Ethernet is connected with RJ-45 connectors. The 100Base-TX is based on the older Ethernet standard. Because it is 10 times faster than
Ethernet, it is often referred to as Fast Ethernet. The built-in LAN module provides a standard RJ-45 connector.
To connect the twisted-pair cable to your LAN port:
1. Connect one end of the cable into the network wall outlet or HUB.
2. Connect the other end of the cable into the Panel PC RJ-45 LAN port.
