AcuPanel 12 User Manual
•
Save & Exit Setup
This option lets you saves all changes to CMOS while running the BIOS setup program and exit from the system setup program.
•
Exit Without Saving
This option allows you to discard all changes made while running the BIOS setup program and exit from the system setup program.
4.2. Standard CMOS Features

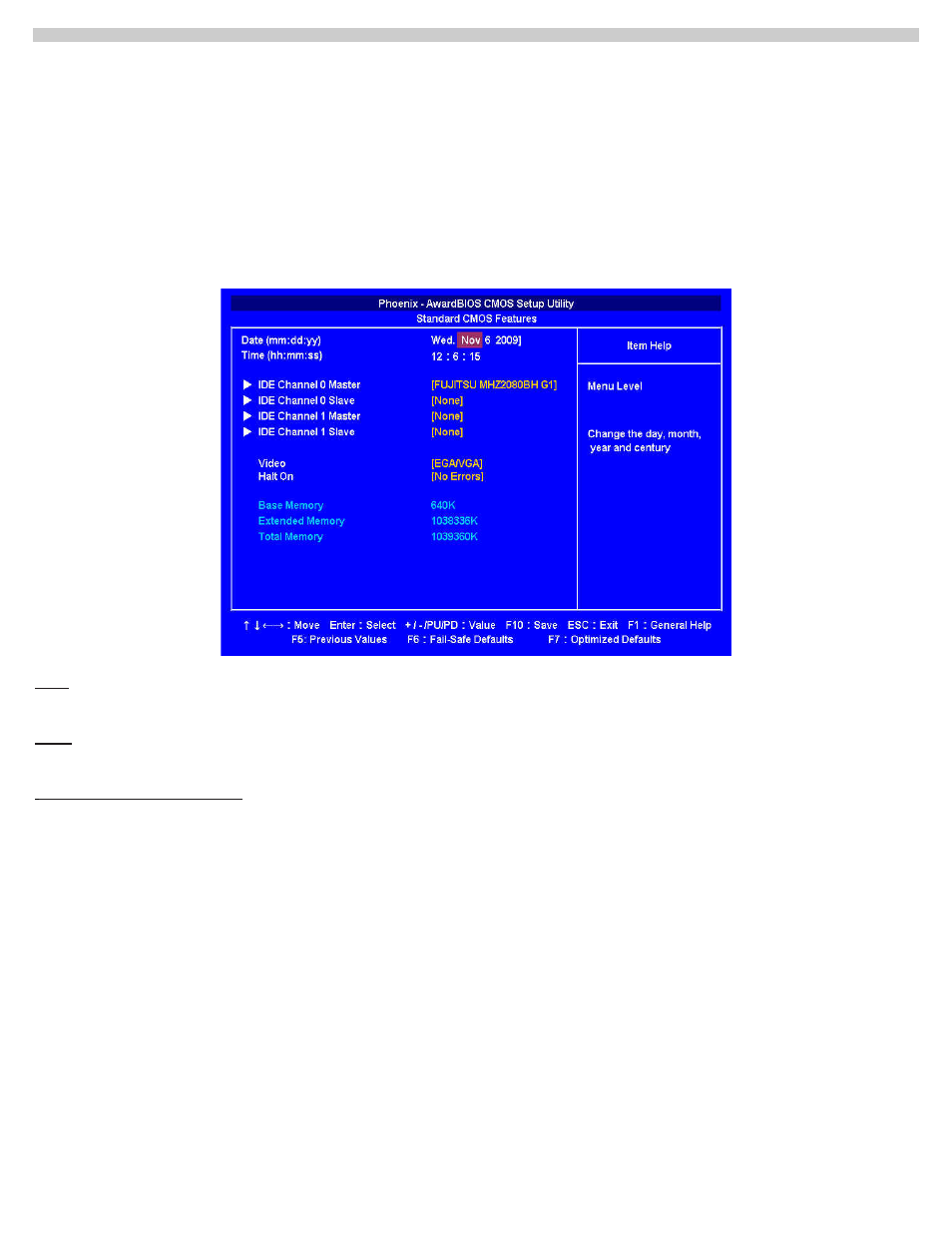

The Standard CMOS Setup screen is displayed below. Each feature may have one or more option settings. Use the arrow keys to highlight
the feature you want to change and then use PgUp/PgDn or +/- keys to select the value you want for that feature.
NOTE: The system BIOS automatically detects memory size, thus
no changes are necessary.
Date To set the date, highlight the Date field and then press PgUp/PgDn or +/- keys to set the current date. Follow the week, month, day and
year format.
Time To set the time, highlight the Time field and then press PgUp/PgDn or +/- keys to set the current time. Follow the hour, minute, and
second format.
IDE Channel 0/1, Master/Slave This field records the specifications for all non-SCSI hard drives installed in the system. Press "Enter" for
automatic device detection.
Hard Disk Configurations
IDE HDD Auto-Detection: BIOS CMOS Setup Utility will detect and configure had disk parameter automatically by pressing this item.
IDE Channel 0 Master: Options are: None, Auto and Manual.
Access Mode: Options are: CHS, LBA, Large and Auto.
Capacity: The hard disk size. The unit is Bytes.
Cylinder: The cylinder number of the hard disk.
Head: The read/write head number of the hard disk.
Precomp: The cylinder number at which the disk drive changes the write current.
Landing Zone: The cylinder number on which the disk drive heads (read/write) are seated when the disk drive is parked.
Sector: The sector number of each track defined on the hard disk.
