5
2. Setup
2.1 Unpacking and inspection
Open the shipping carton and carefully remove the contents:
• ATR 440
• ATR 440 User's Manual
• 2 extra fuses
• 2 keys
• 1 mounting template

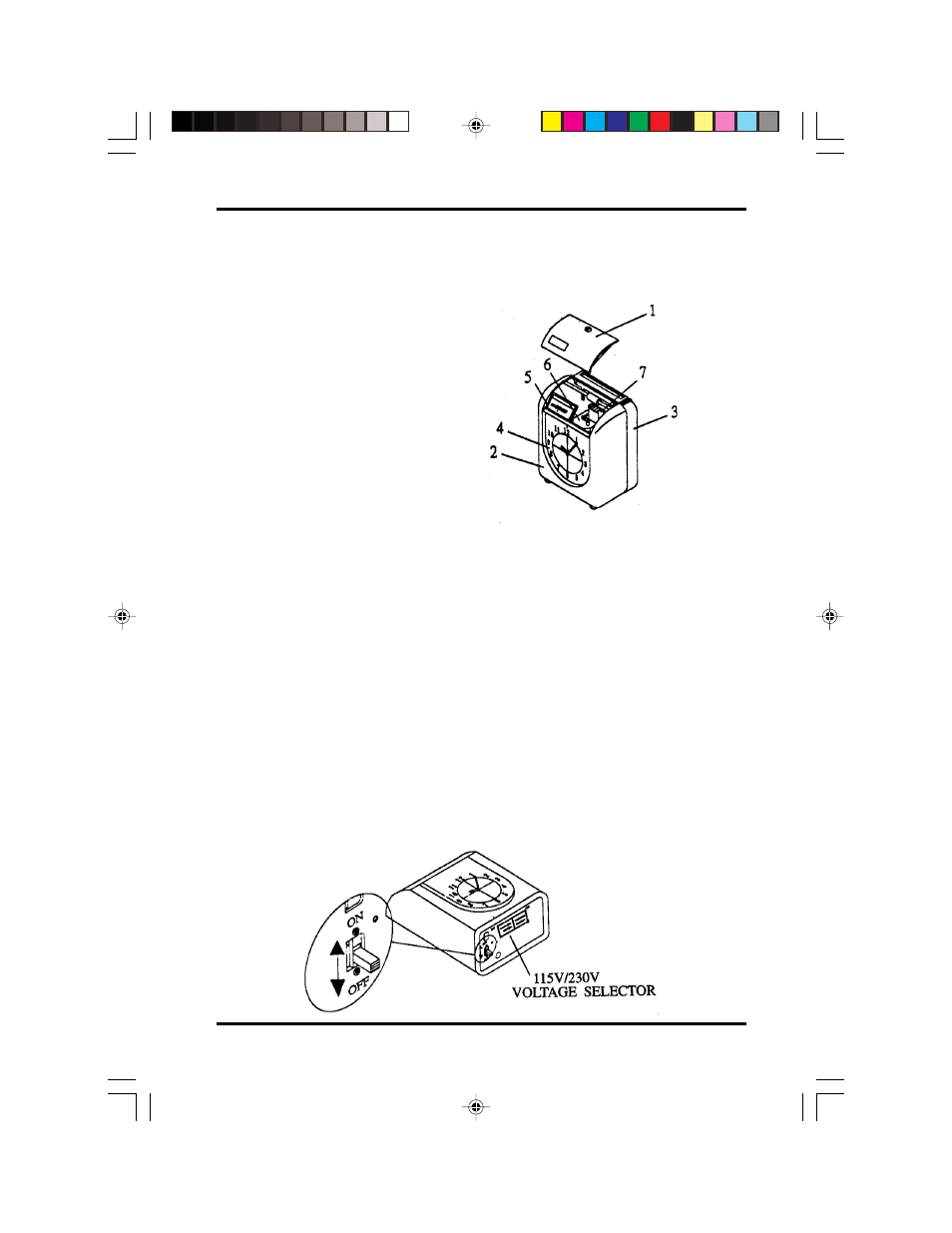

1 Top cover
2 Front housing
3 Back cover
4 Clock face
5 Digital display
6Two color ribbon cartridge
7 Print head
2.2 Voltage selector and battery switch
The voltage selector (115/230VAC) switch is located on the bottom
near the front. The ATR 440 allows the user to select the voltage that
will power the clock. The clock will automatically adjust for either 50
or 60 hertz. Before applying power, slide the switch to the appropriate
line voltage. The 230VAC operation may require a line plug adaptor,
not supplied. Check with your local electrical supply house.
The battery switch is located on the bottom left of the clock. When in
the ON position, it allows for the full operation of the ATR 440 when
the AC power is off. Slide the battery switch to the ON position when
installing the recorder.
Setup
