6. Replacing the ribbon cartridge

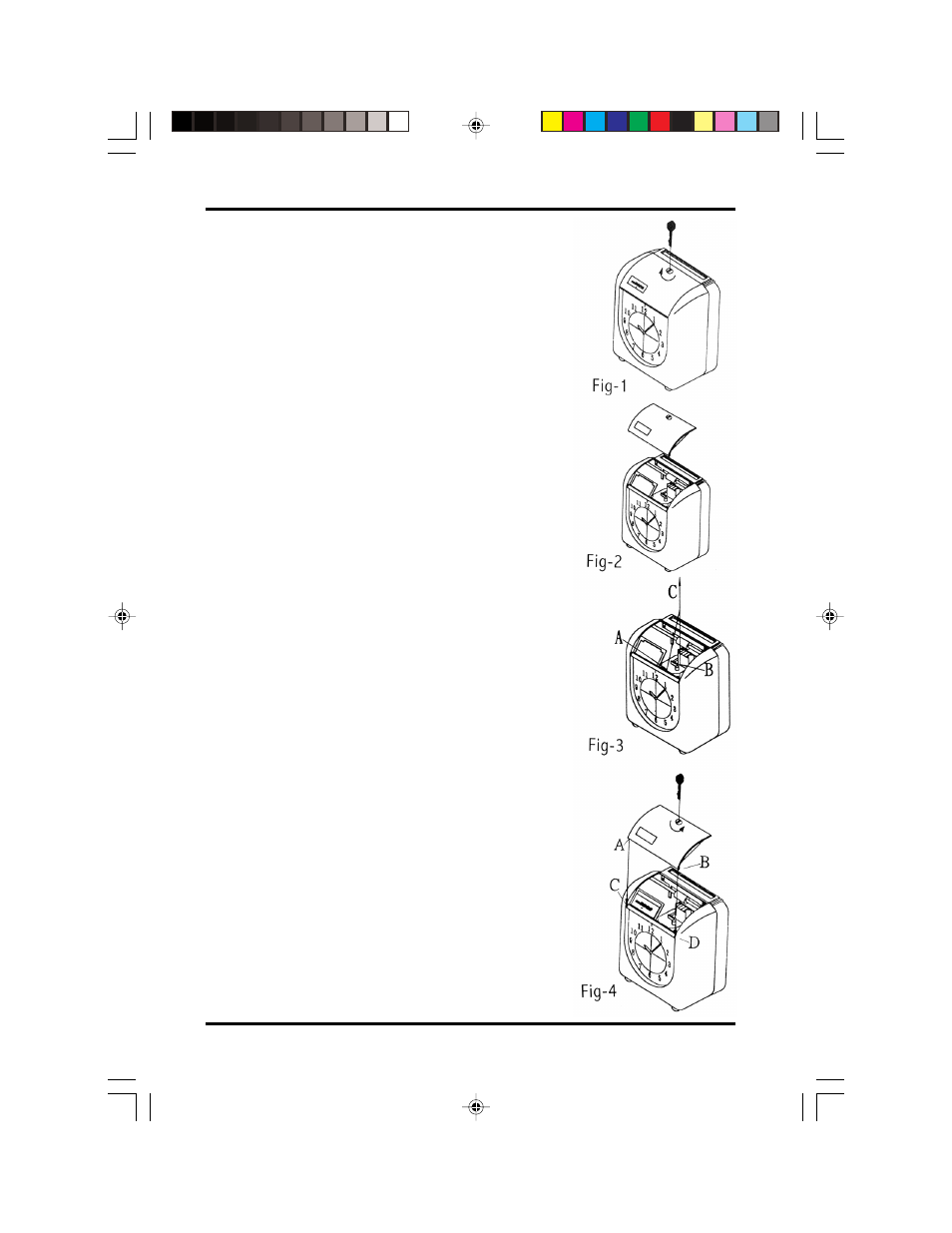

1) Insert the key in the keyhole. (Figure 1)
2) Turn the key clockwise. (Figure 1)
3) Remove the top cover. (Figure 2)
4) Hold the ribbon cartridge with your thumb
pressing at A and your first and middle
finger pressing B.
5) Pull the ribbon cartridge up in the
direction of C. (Figure 3)
6) Insert a new cartridge between the print
head and the guide plate and turn the knob
clockwise.
7) Connect the joints in the cartridge with
the slots in the ribbon base. Push the
cartridge head until it clicks into place.
8) Turn the knob clockwise to remove any
slack in the ribbon.
9) Connect the hooks in the top cover (A, B)
with the hooks in the case (C, D). Insert
the top cover into place. (Figure 4)
10) Insert the key and turn it counterclockwise
to lock the top cover in place.
