Accusys Acuta User’s Manual
24

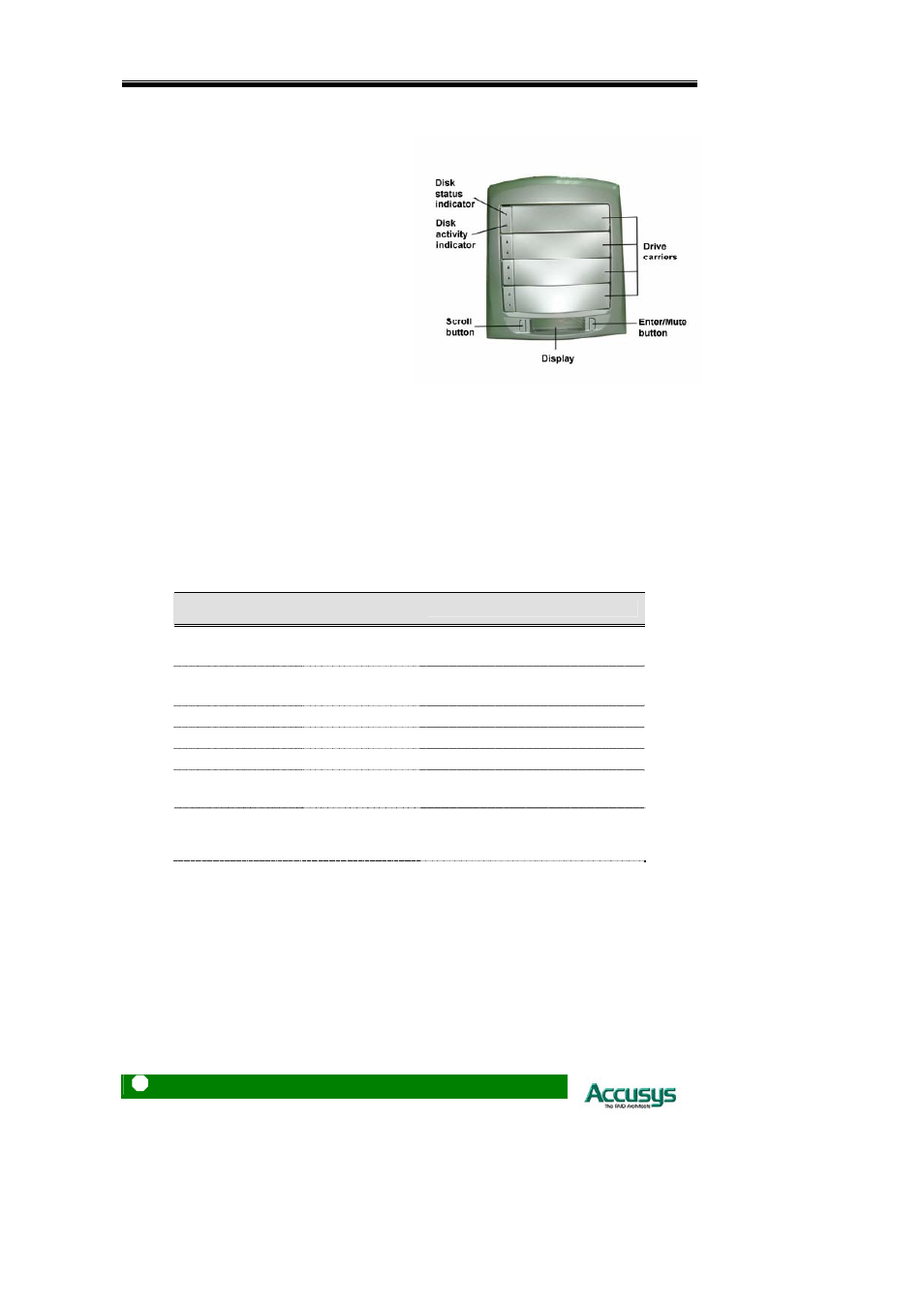

Front view
Drive carriers
Each drive carrier can hold a one-inch high
3.5-inch form factor parallel ATA IDE disk drive.
Display
The LCD displays status and configuration
information for the ACUTA 4/4S subsystem and
arrays. A full list of LCD display messages is
given in Appendix C.
Scroll button
The scroll button is used to scroll through
information on the display and to select settings
for the date and time.
Enter / Mute button
The Enter / Mute button is used to set date and
time and to mute the buzzer.
Disk status indicator
Each drive carrier features an indicator that
lights to show disk status
Disk activity indicator
Each drive carrier features a disk activity
indicator that lights when the drive is being
accessed.
Disk Status
Indicator
Disk Activity
Indicator
Controller Status
Alternating green
& amber
Flashing blue
RAID being initialized
Alternating green
& amber
Flashing blue
RAID being rebuilt
Solid green
Unlit
RAID initialization complete
Solid green
Unlit
RAID established / no activity
Solid green
Flashing blue
Data
being
accessed
Solid red
Unlit
Disk failure / disk not properly
installed
Solid amber
Unlit
Hot spare disk in R5+spare
mode
