English F.01U.028.289 Product description FPE-5000-UGM
13 / 32
ST - FIR / PRM1 / deh
BDL-F01U028306 / A3
Functional description
The communication module is used to connect the FPA-5000 fire panel to the parent UGM 2020
security system.
The module provides two bi-directional transmission paths.

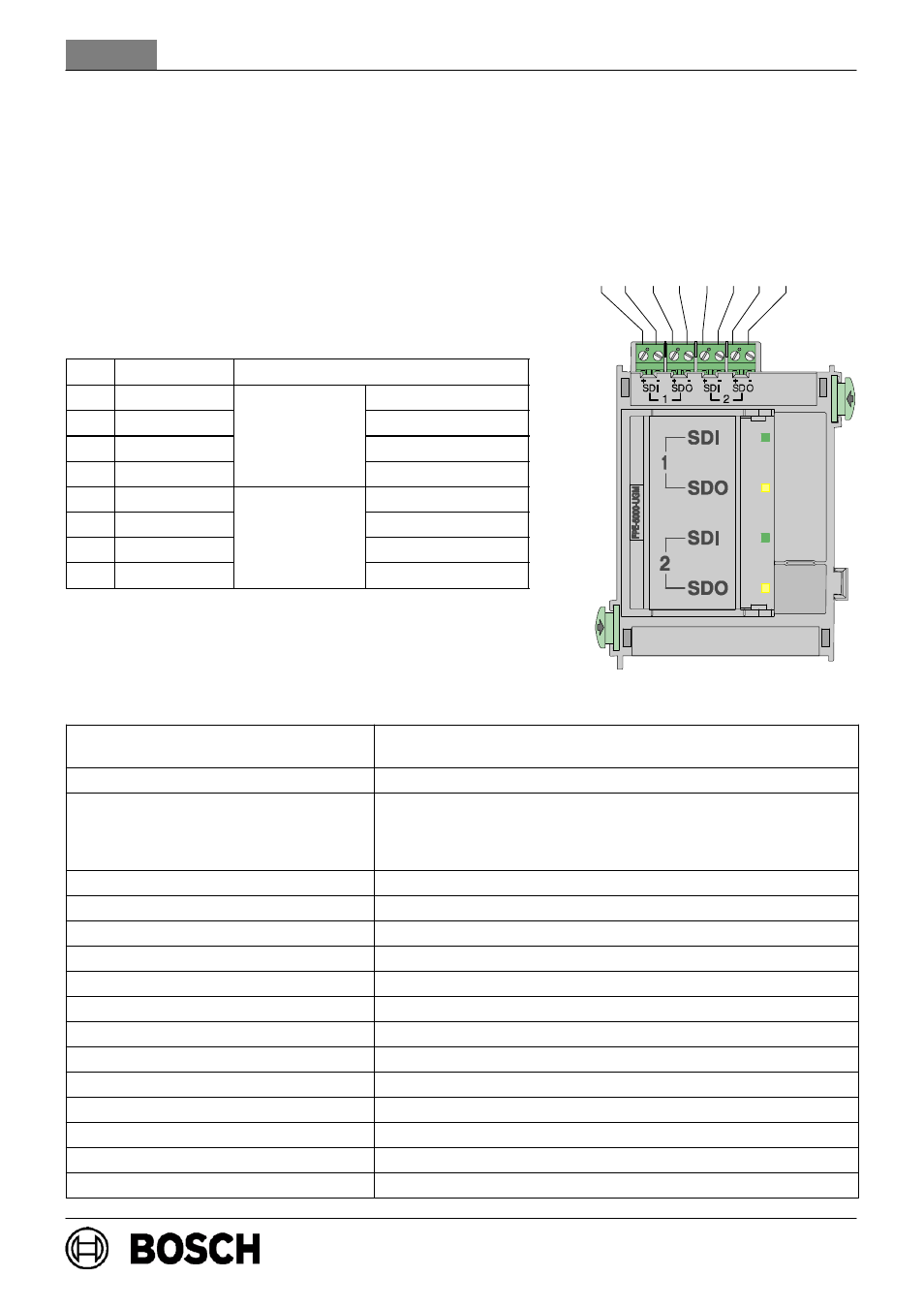

Terminal assignment
Pos. Labelling Connection
1 SDI 1 + Data input +
2 SDI 1 -
Transmission
Data input -
3 SDO 1 +
Transmission
path 1
Data output +
4 SDO 1 - Data output -
5 SDI 2 + Data input +
6 SDI 2 -
Transmission
Data input -
7 SDO 2 +
Transmission
path 2 Data output +
8 SDO 2 - Data output -
Technical specifications
Operating and display elements 4 bi-colour LEDs (green = transmission / yellow = fault)
1 key (LED test)
Input voltage 20 V DC–30 V DC (min–max) / 5 V DC ±5 %
Maximum current consumption
- Standby operation
- One transmission path active
- Both transmission paths active 7 mA (at 24 V DC)
10 mA (at 24 V DC)
13 mA (at 24 V DC)
Maximum line length 1000 m
Maximum line resistance 70 Ω
Baud rate 9600 bit/s for 1000 m – . . 38400 bit/s for 200 m
Protection class IP 30 / EN 60529
Safety class II in accordance with IEC 60950 / EN 60950
EMC immunity EN 50130-4 / FCC Part 15
EMC emission EN 61000-6-3 / FCC Part 15
Permissible operating temperature -5 _C . . . 50 _C
Permissible storage temperature -20 _C . . . 60 _C
Permissible relative humidity max. 95%, non-condensing
Housing material and colour ABS plastic (UL94 V-0), satin finish, anthracite, RAL 7016
Dimensions (h x w x d) approx. 110 x 90 x 60 mm
Weight approx. 150 g
1 2 3 4 5 6 7 8
