Gembird SIS-PMS-LAN - Manual (Page 41)

41
SIS-PMS-LAN PROGRAMMABLE SURGE
PROTECTOR WITH LAN INTERFACE
All brands and logos are registered trademarks of their respective owners

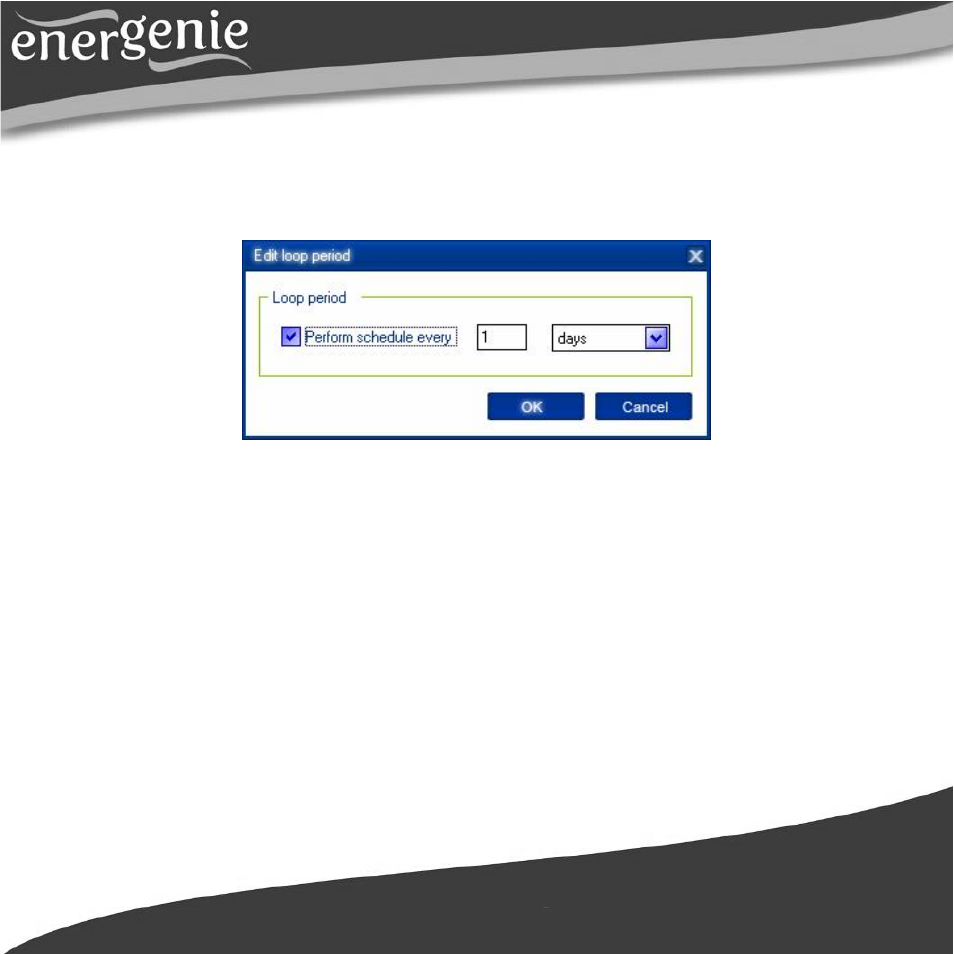

Figure #20
• After the schedule record has been created, click the Apply button
(see Figure #17 above) to save the hardware timer schedule
changes. In case of incorrect entries, these will be highlighted and
an error message will appear. Click the Apply button again after
correcting all the errors
• Use Sync button (see Figure #17 above) to synchronize device timer
with PC clock. Note that after synchronization past entries will be
removed from the schedule
HINT: Use the popup menu (see Figure #17 above) which can be
activated by the right mouse button click over the table.
The following are the rules for creating a correct schedule:
