York D2HE/D2HG060 - Manual (Page 22)

036-21216-003-A-0204
22 Unitary Products Group

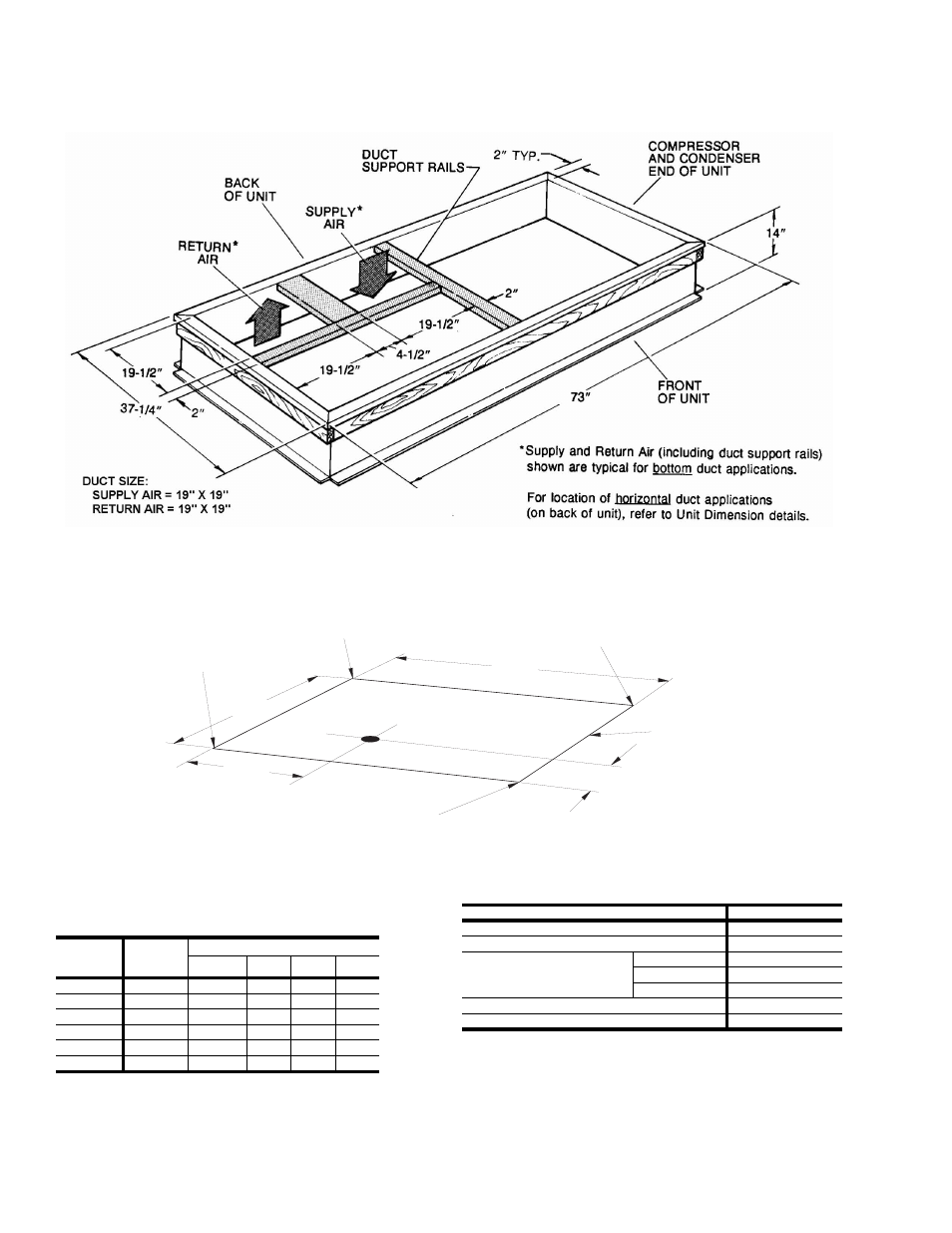

FIGURE 14 - ROOF CURB DIMENSIONS DHE/DHG 3, 4 & 5 TON
FIGURE 15 - CENTER OF GRAVITY AND CORNER WEIGHTS
8 2 - 1 / 4
1 9 - 3 / 4
4 4 - 7 / 8
4 0 - 3 / 4
C O R N E R " A "
C O R N E R " D "
C O R N E R " B "
C O R N E R " C "
C O N D E N S E R C O I L
E N D O F U N I T
TABLE 21: BASIC UNIT WEIGHT
UNIT
UNIT
WEIGHT
(lbs.)
CORNER WEIGHTS 1
1. Weight = Unit with economizer and high heat.
“A” “B” “C” “D”
DHG036 665 188 185 145 147
DHG048 680 192 189 148 152
DHG060 715 202 199 155 159
DHE036 565 160 157 123 125
DHE048 610 172 169 133 136
DHE060 645 182 179 140 144
TABLE 22: ACCESSORIES WEIGHT
DESCRIPTION WEIGHT (lbs.)
ECONOMIZER 50
MOTORIZED OUTDOOR AIR DAMPER 26
ELECTRIC HEAT
(nom. kW DHE only)
5-7 kW 18
10-15 kW 23
20-30 kW 28
ROOF MOUNTNG CURB 92
RELIEF/FIXED AIR DAMPER 10
