Overview
3
User Guide
SquareFold Trimmer Module
2.
1.
2.
1.
3.
4.
5.
6.
3.
5.
6.
4.

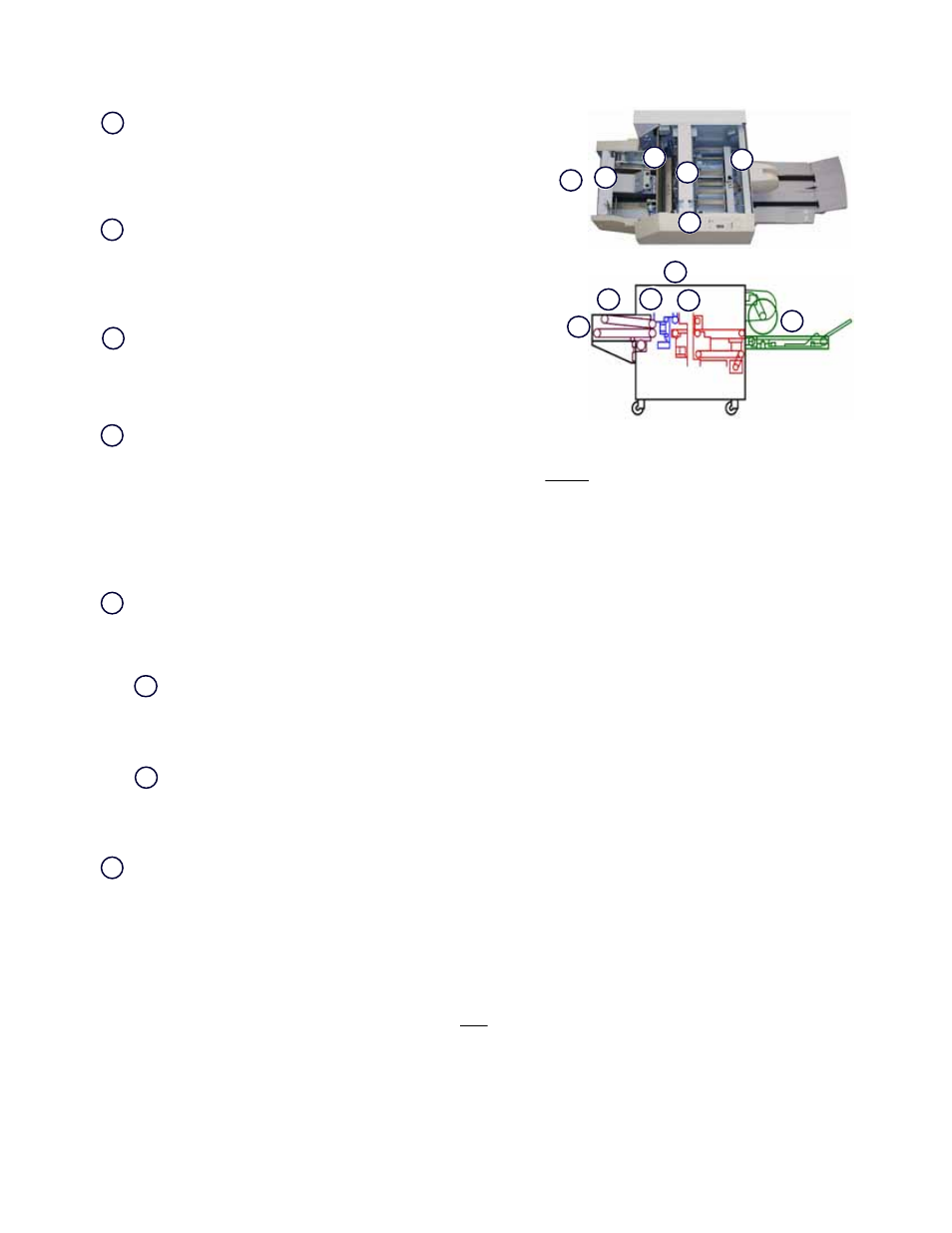

The booklet leaves the booklet area of the finisher and enters
SquareFold Trimmer Module.
Once the booklet spine reaches the square fold area, the booklet
is clamped and the square-folding operation begins.
The booklet is flattened and the spine squared according to the square-fold setting indicated on the control panel.
For detailed information on each of Square Fold settings, refer to page 7.
After the booklet is flattened and the spine squared, it is moved to the trimmer area.
The booklet then moves to the exit area where it is transported to the Booklet Output Tray.
The Booklet Exit sensor (in the SquareFold Trimmer Module)
detects the lead edge (spine) of booklet and moves the booklet
to square fold area.
Based on the finished booklet size, the booklet is moved until the trail edge reaches the trimmer cutter.
The trail edge is trimmed/cut (based on the finished booklet size entered for the Trimmer Mode Setting).
Booklets exiting/leaving the SquareFold Trimmer Module may contain trim remnants/scraps from the previously
trimmed booklet. This is due to static electricity build-up and is normal. If booklets contain trim remnants/scraps, simply
remove and discard them.
