25 Operation
Installing a Paper Roll
10/05/2009 TTP 7030™ Technical Manual P1003636-002
4.

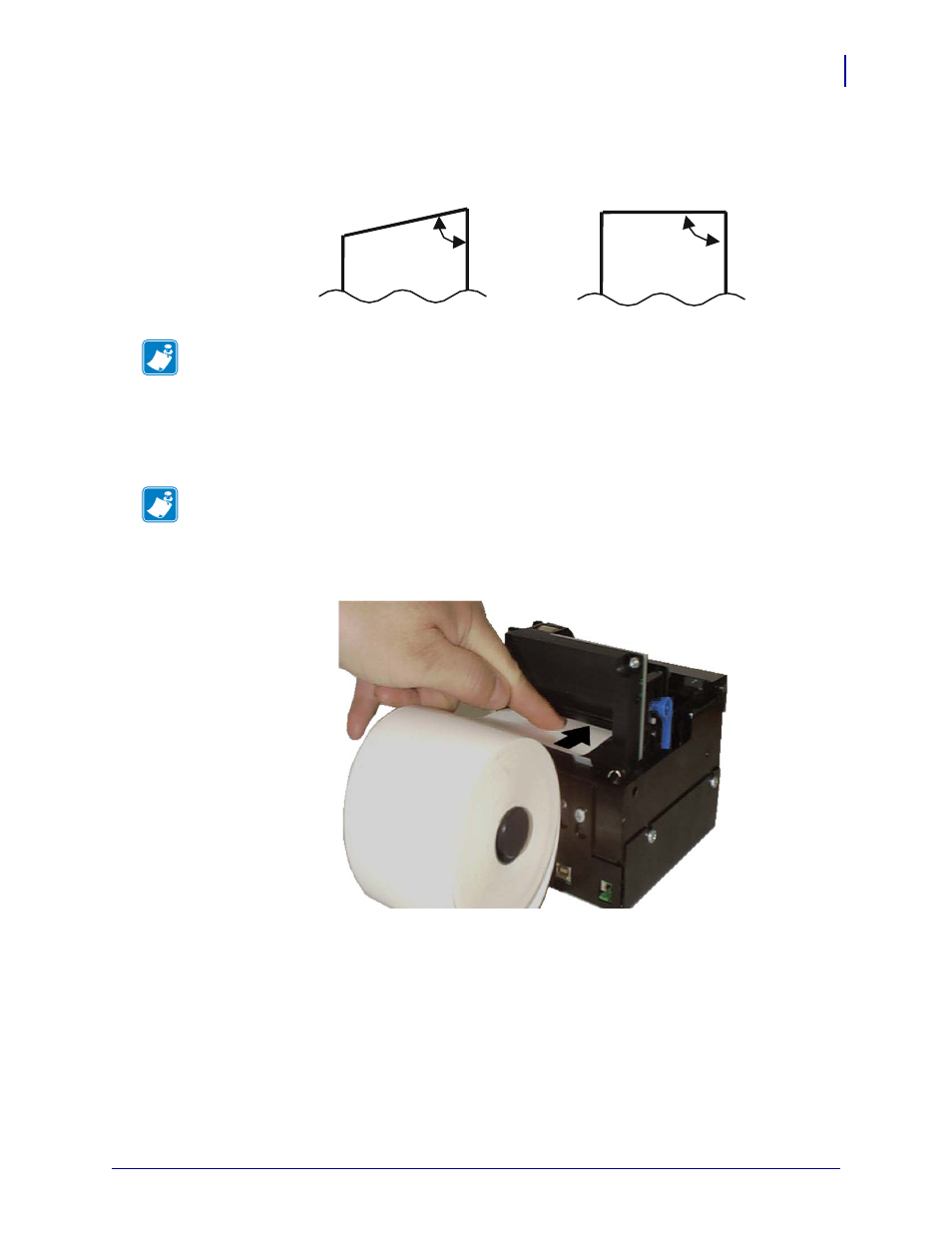

Cut the paper in a suitable angle. See Figure 11 .
Figure 11 • Suitable paper edge for auto load
5.
Insert the paper through the paper entry opening at the back of the printer.
The printer will now feed, cut and eject a printout, and then automatically go on-line.
Figure 12 • Insert the New Paper
Note • The paper sensor is on the same side as the blue paper release lever (where the arrow
points in Figure 12, Insert the New Paper, on page 25 ). If the paper is cut in a direction
opposite to that as shown in the figure above, the sensor will not detect the paper.
Note • In high temperature and high humidity, the paper may lose its stiffness resulting in
paper jam at automatic paper loading. In such cases, load paper manually.
90º
Thermal side (top)
70º
Thermal side (top)
Cut off at
a 70º-90º
angle
