Installation
Installation Considerations 14
P1003636-002 TTP 7030™ Technical Manual 10/05/2009
Installation Considerations
The TTP 7030 printer is designed to be installed in an enclosure such as a self-service kiosk.
The illustration below gives an example of a printer-mounting shelf. See also
Printer
dimensions on page 110
. 3D solid models and outline drawings for CAD are available in the
partner section of www.zebra.com .

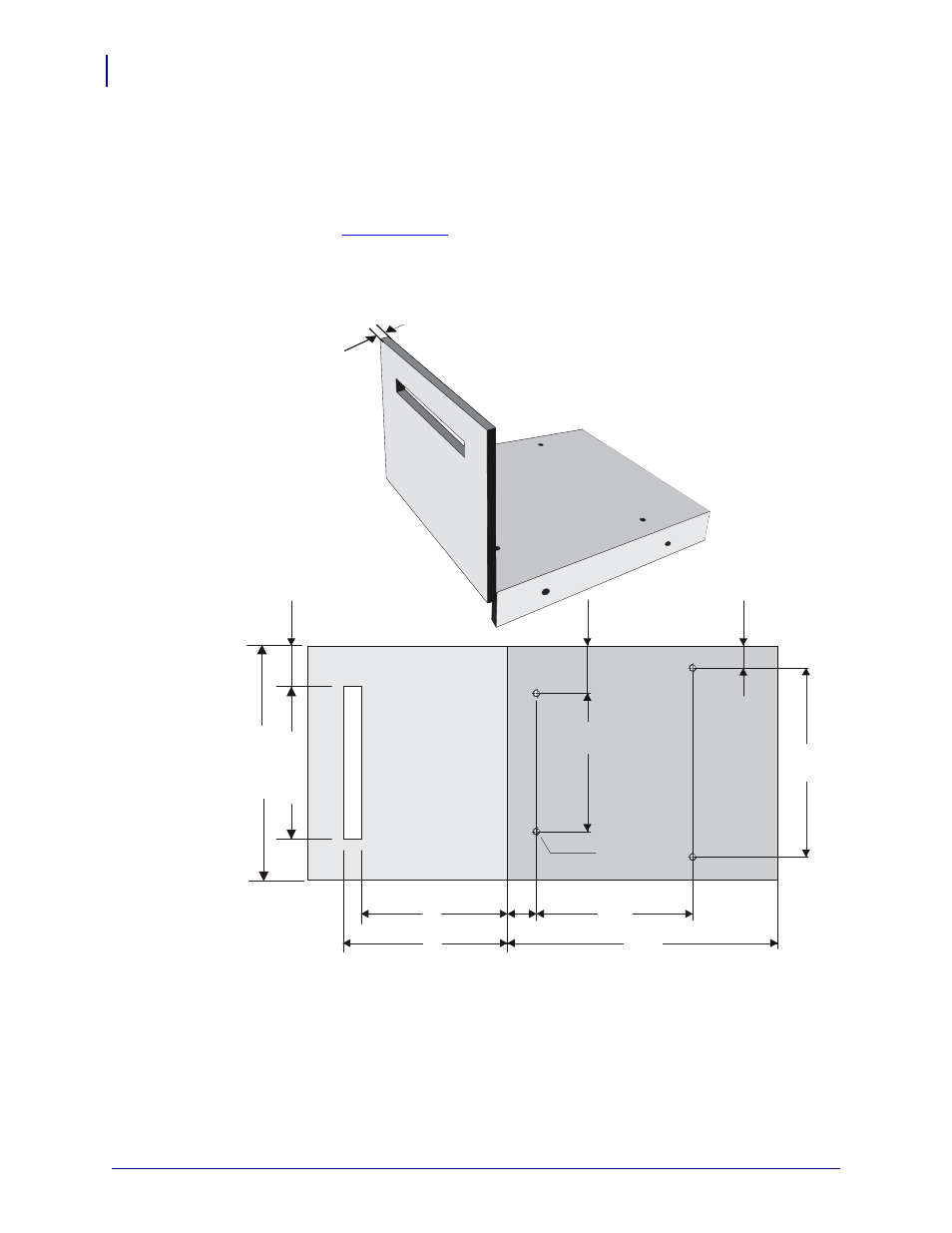

Figure 3 • Example of a Simple Shelf for Fastening a Standard Printer
Additional space is required for paper loading and paper jam removal. Consider mounting the
printer on a movable platform so that the printer can be maintained outside the kiosk
enclosure.
12.0 26
.0
16.0
4.2 (4x)
All measurements are in mm. Measurements in parentheses are for TTP 70x0/112. SW98056
81
91
84
.5
(1
16
.5)
128.5 (
160.5
)
1.5
86.0
148.8
104.0
76.0
19.0
Top view
