Installation
Connecting the Power 18
P1003636-002 TTP 7030™ Technical Manual 10/05/2009
Connecting the Power
Using the Zebra power supply (see Ordering Numbers
on page 127
for ordering number):
1.
Make sure the line voltage selector on the power supply is set to your local line voltage
(only PSU 01035-014).
2.
Connect the cable from the power supply to J8.
3.
Connect the power cable to the line outlet.
4.
Apply power to the printer.
If you use another type of power supply unit, connect the voltages as shown in Figure 6 .

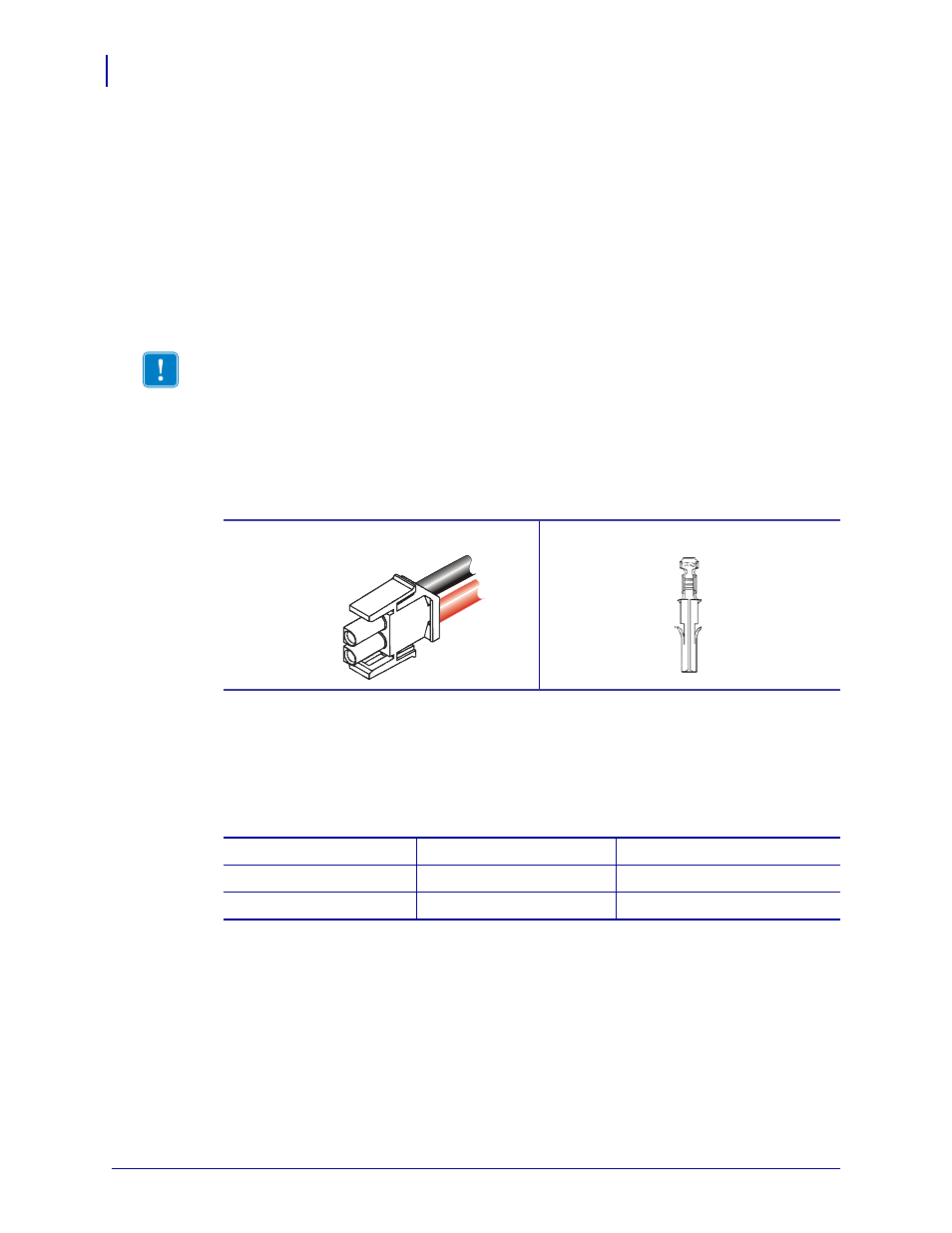

At the printer end of the cable, use an Tyco Mate-N-Lok connector housing and two contact-
sockets:
Figure 6 • Power Connection
Table 1 • Current Consumption
Important •
The protective ground and the 24V ground must be separated in the power
supply to avoid ground loops!
Tyco No. 350777-1 Tyco No. 350689-1
Idle 150 mA 150 mA
Standard text printing 2.5 A average 3.5 A average
All black printing 8.5 A 11 A
GND
+24 V
