Installation
Connecting To The Computer 16
P1003636-002 TTP 7030™ Technical Manual 10/05/2009
Connecting To The Computer
Connect the TTP 7030
1.
Connect J13 of the printer to the USB port of the computer or the USB hub to be used.
USB connectors can be recognized by the following symbol:
.

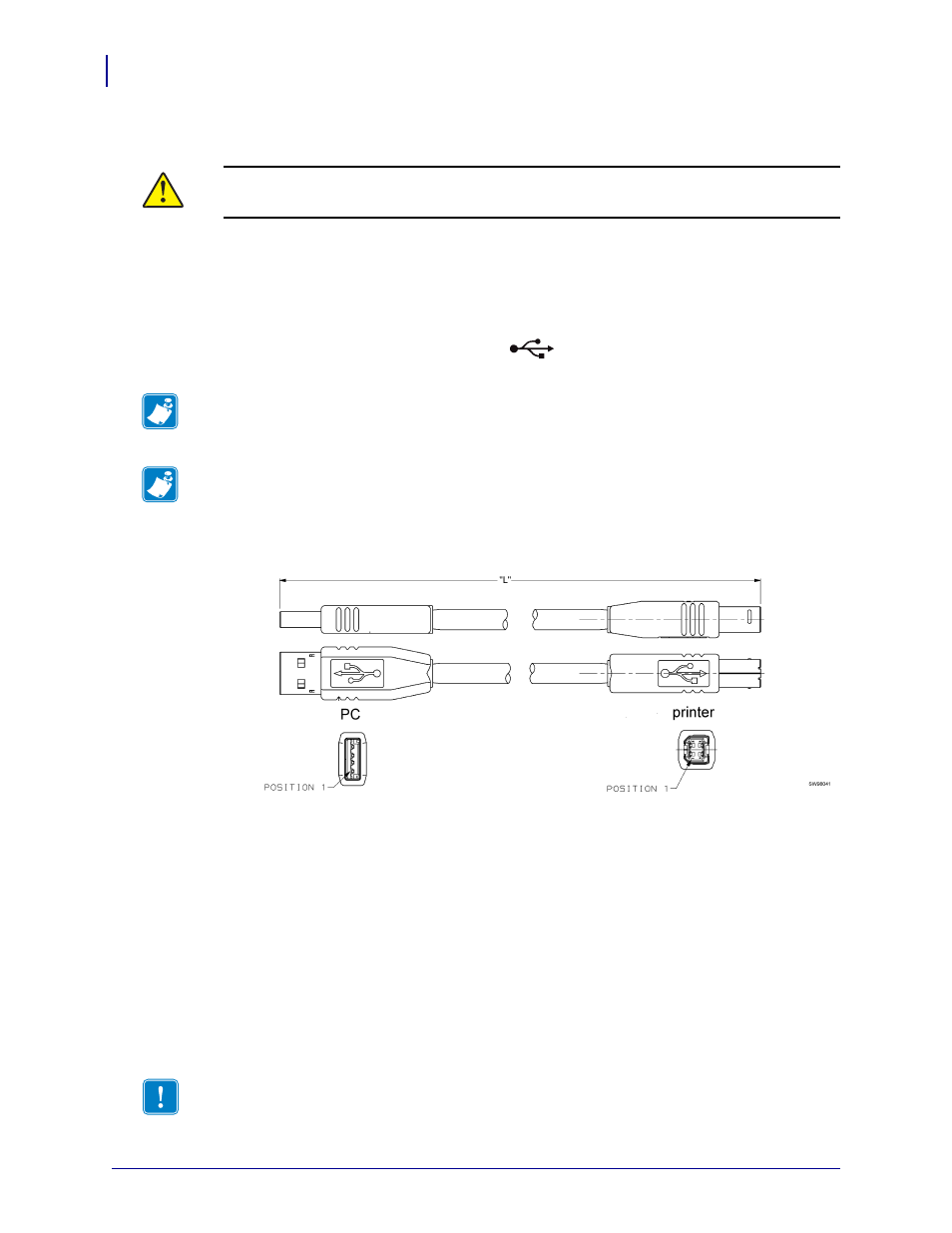

Figure 4 • USB Cable with Type A and Type B Connectors
Using a Serial Adapter
1.
Loosen the control board module; see Removal on page 110 .
2.
Connect the serial adapter to J4 on the control board.
3.
Fasten the control board module; see Removal on page 110 .
4.
Fasten the serial adapter with the two screws on the right hand side of the printer.
5.
Connect a Zebra serial cable, ordering No.10825-000, between the printer and the
computer to be used.
Caution • Using a non-Zebra power supply may cause excessive EMC interferences and
void the EMC certifications of the printer.
Note •
Connector J13 is a 4-pin USB type B connector. See
USB, TTP 7030 on page 87
7 for
pin assignment.
Note • A suitable cable is available from Zebra, see Ordering numbers on page 115 for
ordering number.
Important • We strongly recommend using the Zebra cable because many incompatible
cables are available.
