ExpWave 240B Secure Outdoor Ethernet Radio Link
11-6 System Maintenance
Figure 11-9 Menu 24.4 — System Maintenance — Diagnostic
11.4.1 WAN DHCP
DHCP functionality can be enabled on the LAN or WAN as shown in Figure 11-10 WAN & LAN DHCP. LAN DHCP
has already been discussed. The ExpWave can act either as a WAN DHCP client (IP Address Assignment field in
menu 4 or menu 11.3 is Dynamic and the Encapsulation field in menu 4 or menu 11 is Ethernet) or None, (when
you have a static IP). The WAN Release and Renewal fields in menu 24.4 conveniently allow you to release and/or
renew the assigned WAN IP address, subnet mask and default gateway in a fashion similar to winipcfg.

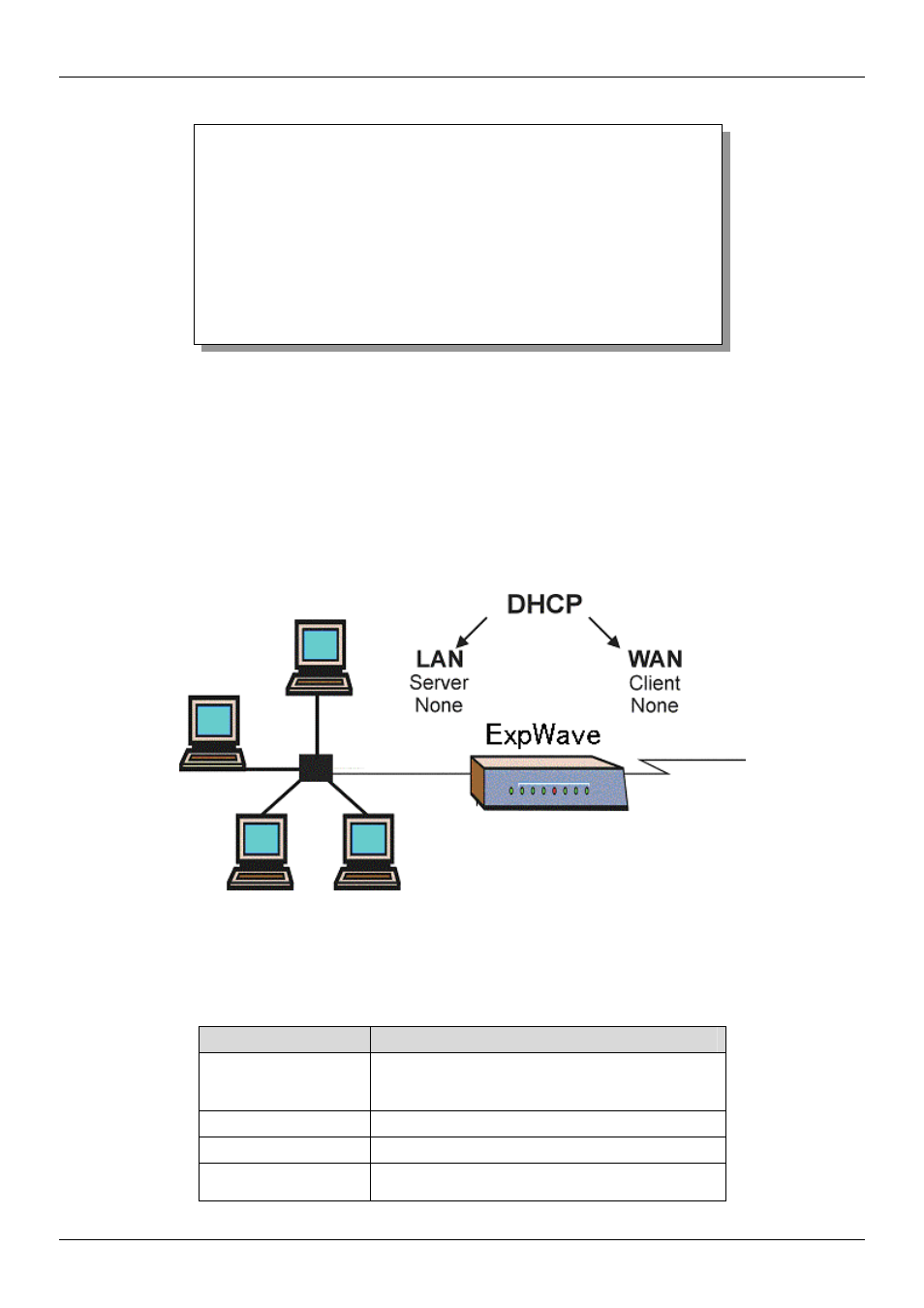

Figure 11-10 WAN & LAN DHCP
The following table describes the diagnostic tests available in menu 24.4 for your ExpWave and associated
connections.
Table 11-4 System Maintenance Menu Diagnostic
FIELD DESCRIPTION
Ping Host Enter 1 to ping any machine (with an IP address) on
your LAN or WAN. Enter its IP address in the Host IP
Address field below.
WAN DHCP Release Enter 2 to release your WAN DHCP settings.
WAN DHCP Renewal Enter 3 to renew your WAN DHCP settings.
Internet Setup Test Enter 4 to test the Internet setup. You can also test the
Internet setup in Menu 4 - Internet Access. Please
Menu 24.4 - System Maintenance - Diagnostic
TCP/IP
1. Ping Host
2. WAN DHCP Release
3. WAN DHCP Renewal
4. Internet Setup Test
System
11. Reboot System
Enter Menu Selection Number:
Host IP Address= N/A
