ExpWave 240B Secure Outdoor Ethernet Radio Link
Hardware Installation 2-5

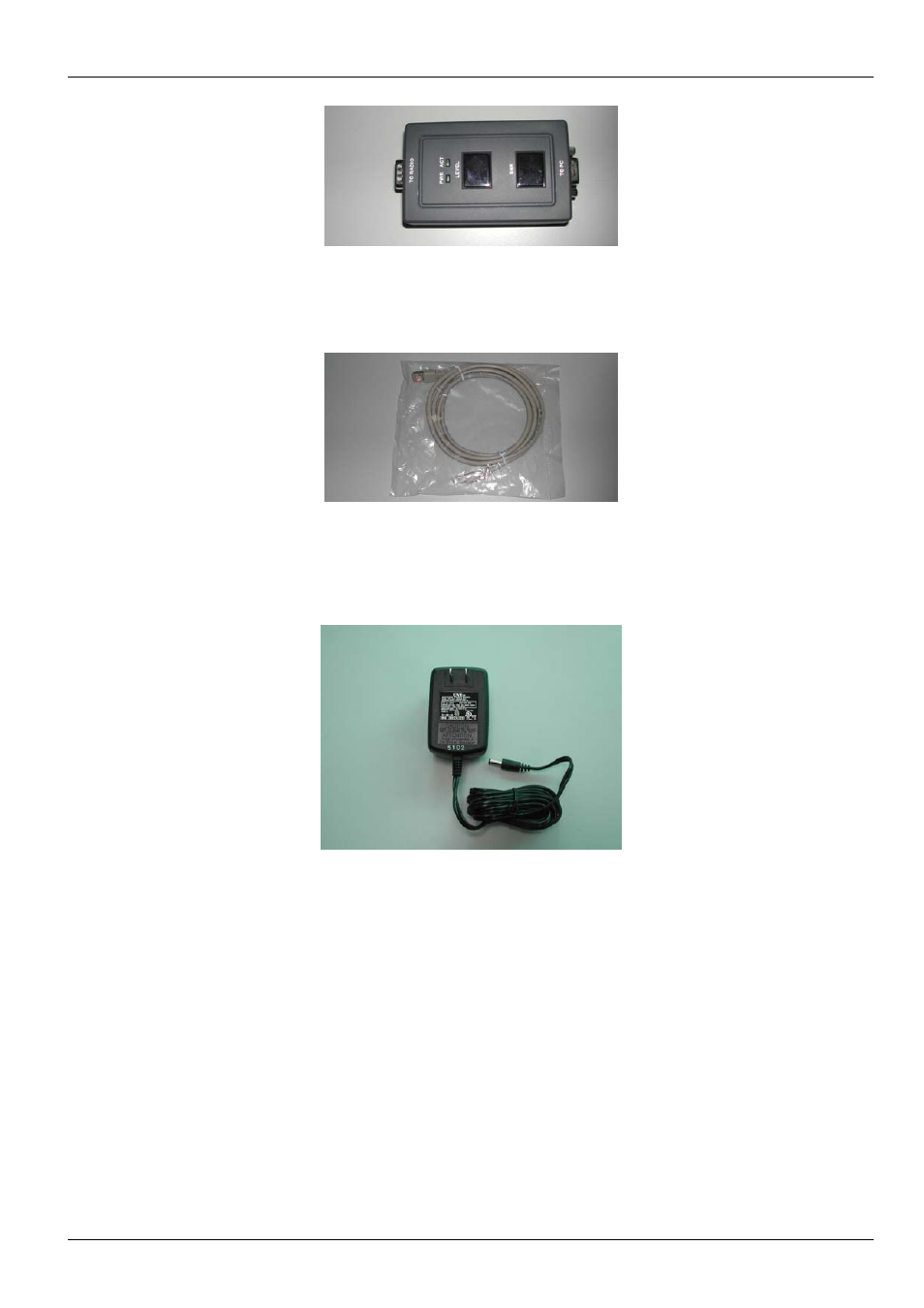

Figure 2-13 Antenna Alignment Kit
10. CAT-5 Straight-through Ethernet cable
The CAT-5 cable is 2m in length. This cable is used to connect the network/power injector and the CPE. The
picture of this cable is shown below.
Figure 2-14 Ethernet Cable
11. Switching Power Adapter
The switching power adapter is to supply the power for the outdoor unit. The input to this adapter is
100~240VAC and the output is 48VDC. The picture is shown below.
Figure 2-15 Switching Power Adaptor
2.2 ExpWave 240B Physical Connection
The physical cable connection of the ExpWave 240B will be shown by the following two pictures.
