3 installation procedure – ZyXEL Communications ZyXEL ExpWave 240B User Manual
Page 28
ExpWave 240B Secure Outdoor Ethernet Radio Link
2-6
Hardware
Installation

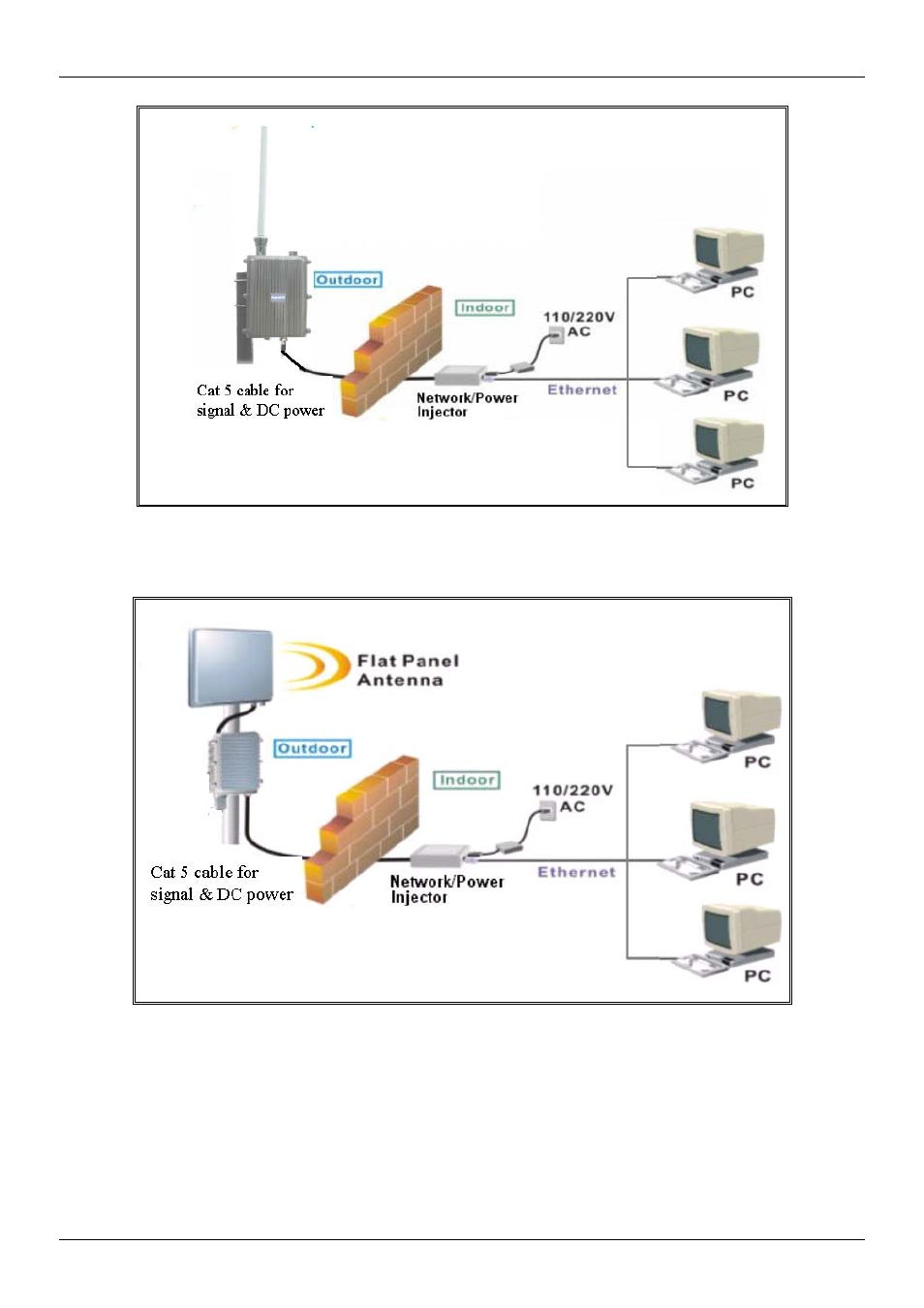

Figure 2-16 Physical Installation of ExpWave with Omni-directional antenna
Figure 2-17 Physical Installation of ExpWave with flat panel antenna
2.3 Installation
Procedure
The installation procedure of ExpWave is described as below:
Power
adaptor
Power
adaptor
