Connections
23
En
Prepara
tion
Be sure to connect the left channel (L), right channel (R), “+” (red line) and “–” (white line) properly. If the connections are faulty, this unit
cannot reproduce the input sources accurately.
• A speaker cord is actually a pair of insulated cables running side by side. Cables are colored or shaped differently, perhaps with a stripe, groove or ridge.
Connect the striped (grooved, etc.) cable to the “+” (red line) terminals of this unit and your speaker. Connect the plain cable to the “–” (white line)
terminals.
• You can also use the REAR ZONE/PRESENCE, FRONT ZONE/PRESENCE, and/or EXTRA SP speaker terminals for the Zone 2, Zone 3, and/or Zone 4
speakers (see page 139). You can also use all speaker terminals of this unit for the Zone 2, Zone 3, and/or Zone 4 speakers (see page 143).

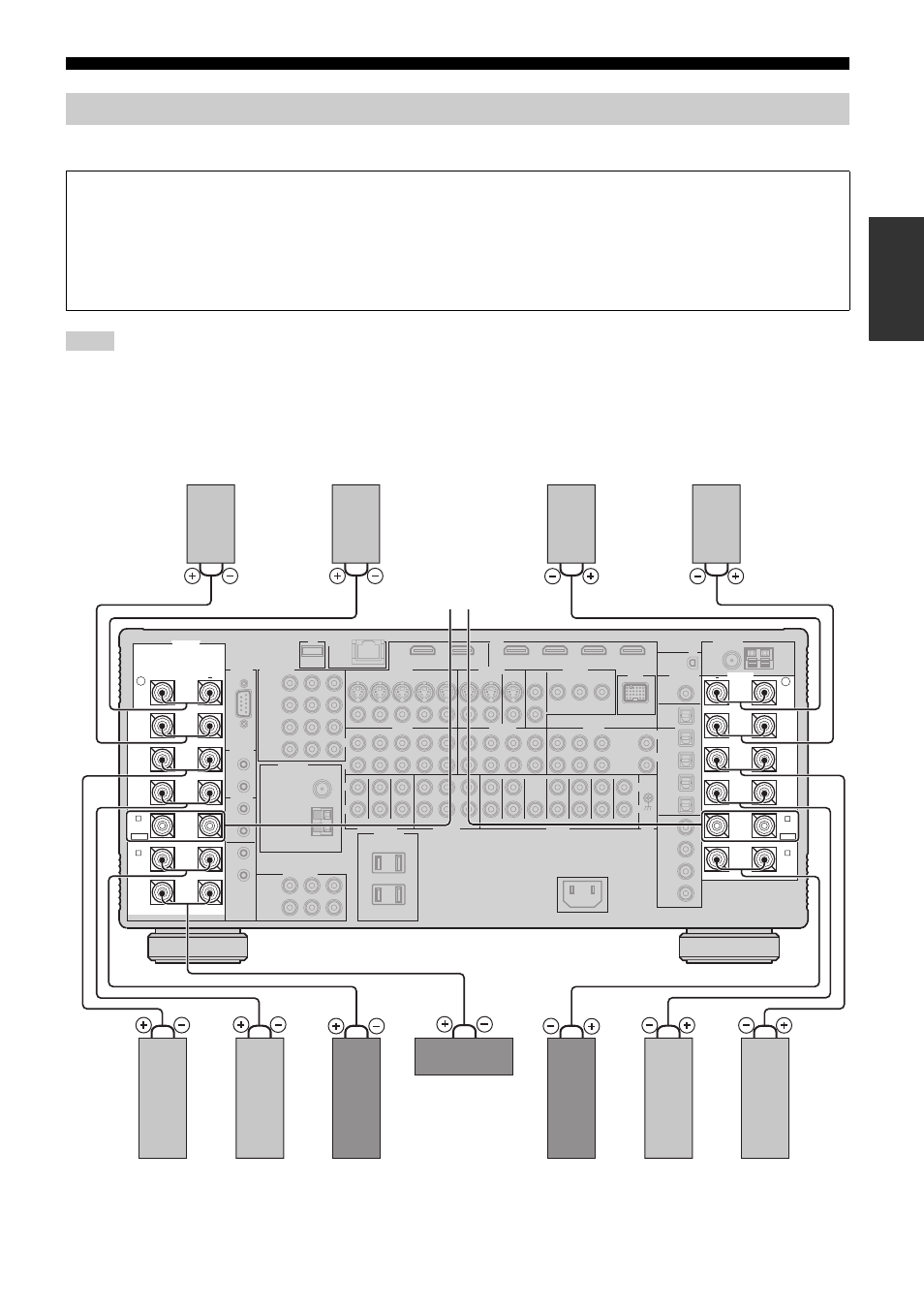

■ For the 11.2/11.1 (or 9.2/9.1) -channel speaker setting
Connecting speakers
Caution
• Before connecting the speakers, make sure that this unit is turned off (see page 43).
• Do not let the bare speaker wires touch each other or do not let them touch any metal part of this unit. This could damage this unit and/
or speakers.
• Use magnetically shielded speakers. If this type of speaker still creates interference with the monitor, place the speakers away from the
monitor.
• If you are to use 6-ohm speakers, be sure to set “SPEAKER IMP.” to “6
ΩMIN” before using this unit (see page 43).
Notes
SPEAKERS
SPEAKERS
REAR
PRESENCE /ZONE
FRONT
PRESENCE
/ZONE
SURROUND
(SINGLE)
SUR. BACK/
BI-AMP
FRONT B/
ZONE
FRONT A
EXTRA SP
REAR
PRESENCE /ZONE
FRONT
PRESENCE
/ZONE
SURROUND
SUR. BACK/
BI-AMP
FRONT B/
ZONE
FRONT A
CENTER
EXTRA SP
A
B
A
B
+ +
R L
Surround right
speaker
Center speaker
Right rear
presence
speaker
(U.S.A. model)
FRONT B speakers
Right front
presence
speaker
Left front
presence
speaker Left rear
presence
speaker
Surround back
right speaker
Front right
speaker
Front left
speaker
Surround back
left speaker
Surround left
speaker
