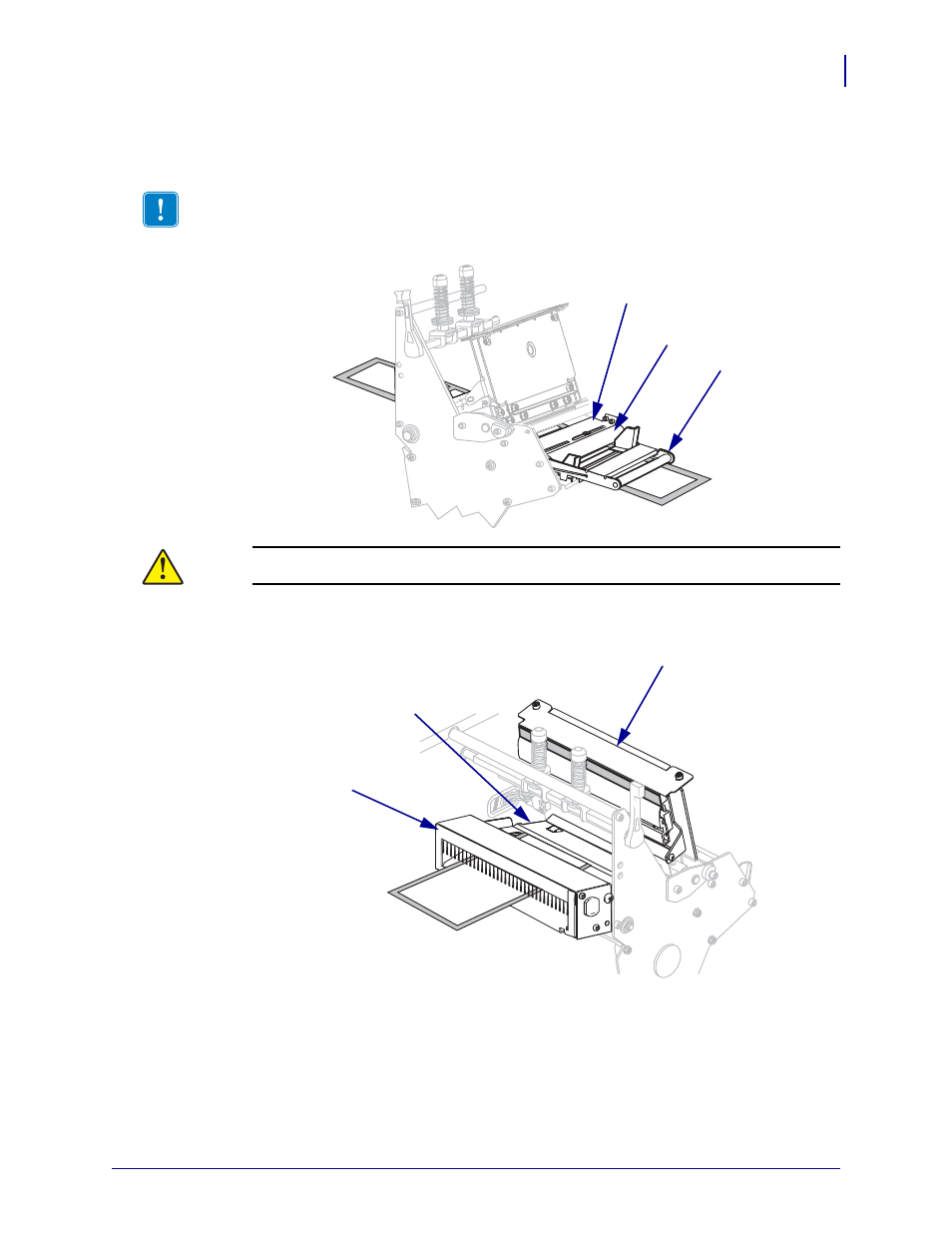

Load Media in Cutter Mode
1/7/10 Xi4™/RXi4™ User Guide P1009874-002
6. If your printer includes a media dancer assembly (
1
), thread the media under the media
dancer assembly roller. For all printers, thread the media under the media guide roller (
2
)
and then the upper media sensor (
3
).
7.
Important • Make sure that you thread the media under these components. If you thread
the media over them, the media obstructs the ribbon sensor and causes a false
RIBBON OUT error.
2
3
1
Caution • The cutter blade is sharp. Do not touch or rub the blade with your fingers.
Thread the media forward until it passes under the printhead assembly (
1
), under the
snap plate (
2
), and through the cutter assembly (
3
).
1
2
3
