A
A-2 Color Measurement Instruments

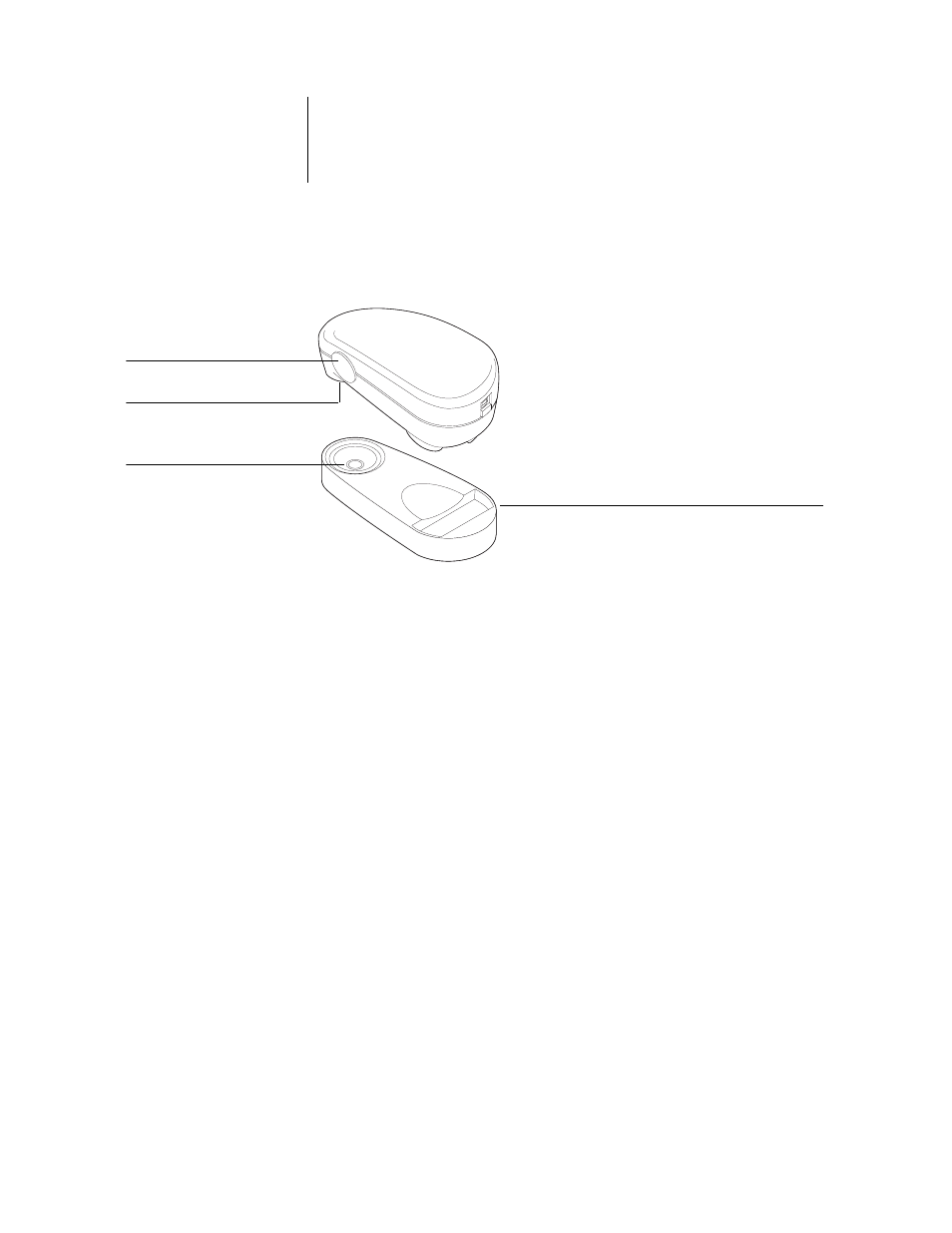

The following illustration shows the different parts of the ES-1000.
Calibrating the ES-1000
When you place the ES-1000 in the calibration cradle, white point calibration is used
to calibrate the spectrometer. Make sure the sample aperture is in full contact with the
white tile on the calibration cradle.
Using the X-Rite DTP41 spectrophotometer
ColorWise Pro Tools Calibrator supports the X-Rite DTP41 spectrophotometer, a
device that measures density and color data. The DTP41 communicates directly with
the Calibrator application in ColorWise Pro Tools, sending measurements to the
EX7750 automatically.
Setting up the DTP41
Before you calibrate the EX7750, you must connect, configure, and calibrate the
spectrophotometer to prepare for measuring the printed patches. For additional
information about setting up and using the DTP41, see the documentation that
accompanies the instrument.
Sample aperture
Measure button
White tile reference
Calibration cradle
