Test RD-9901 Remote Control Wallplate
To check the Remote Control Wall Plate, proceed as follows:
1. Check that telephone-type cable is plugged securely into jack on positioner
rear panel.
2. Check that telephone type cable is plugged securely into jack on side on
remote control wall plate.
3. Access Edit Menu; press [UP/DOWN] arrow buttons until Edit is displayed
on positioner display. See Figure 9.
4. Press [SELECT A or B] as appropriate to enter Edit Menu. See Fig. 9.
Model RD-9900 PINNACLE
POSITIONER
by WINEGARD
SELECT B
SELECT A
1. Press UP/DOWN arrow
buttons to get Manual Move
on screen

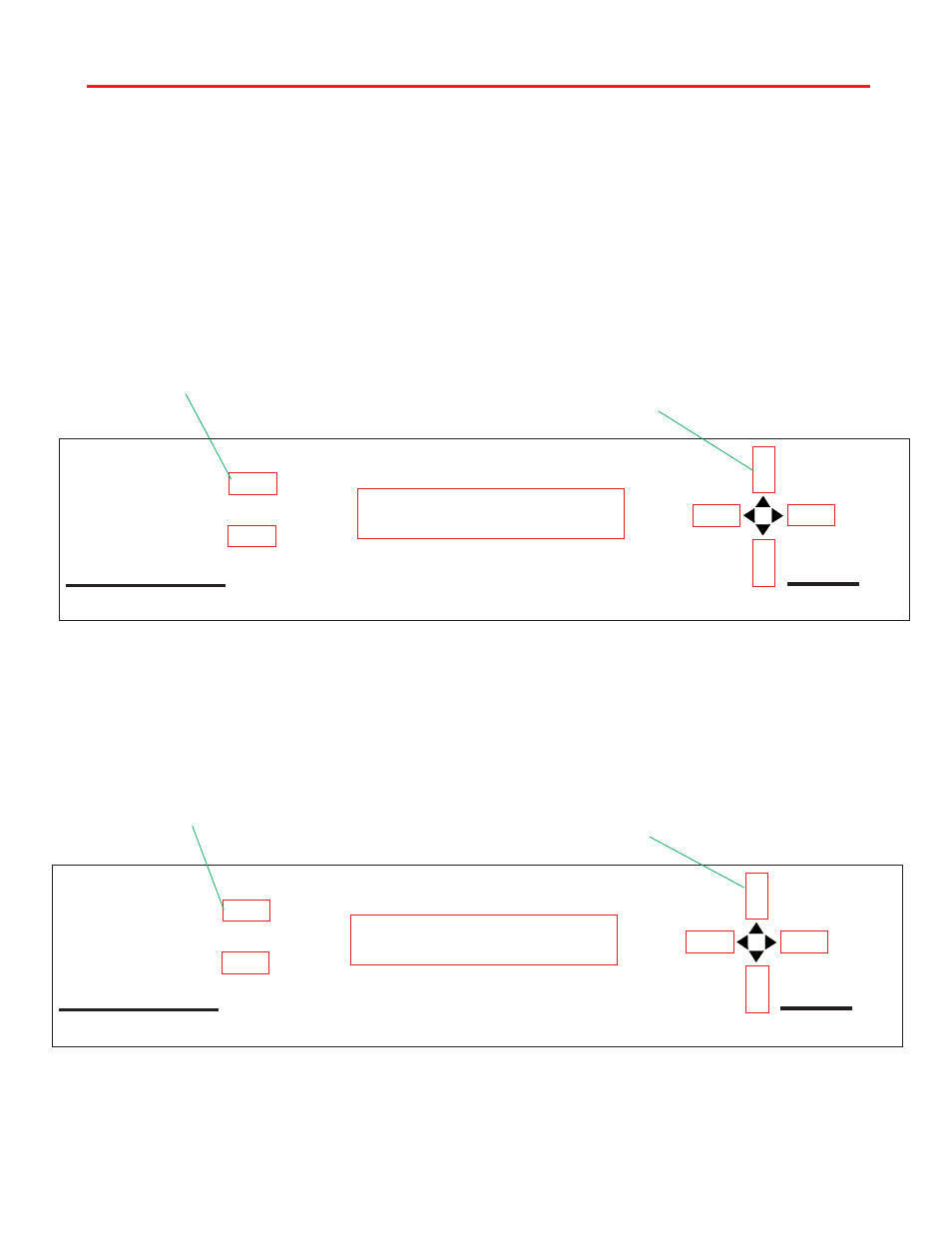

Figure 9
2. Press SELECT A or B as
appropriate
Edit
Search DSS
Model RD-9900 PINNACLE
POSITIONER
by WINEGARD
SELECT B
SELECT A
Figure 10
3. Press UP button until
3000 is displayed 4. Press SELECT A to enter
code
Enter Code: 3000
5. Press [UP] arrow button until 3000 is displayed. See Figure 10.
6. Press [SELECT A] to enter code. See Figure 10.
7. Press [SELECT B] Test Remote Panel, see Figure 11.
