Installation Requirements
To install the Winegard Pinnacle ® RV Satellite System, Model RD-9946, you
will need the following:
A. An area on the RV/coach large enough to allow free movement of the

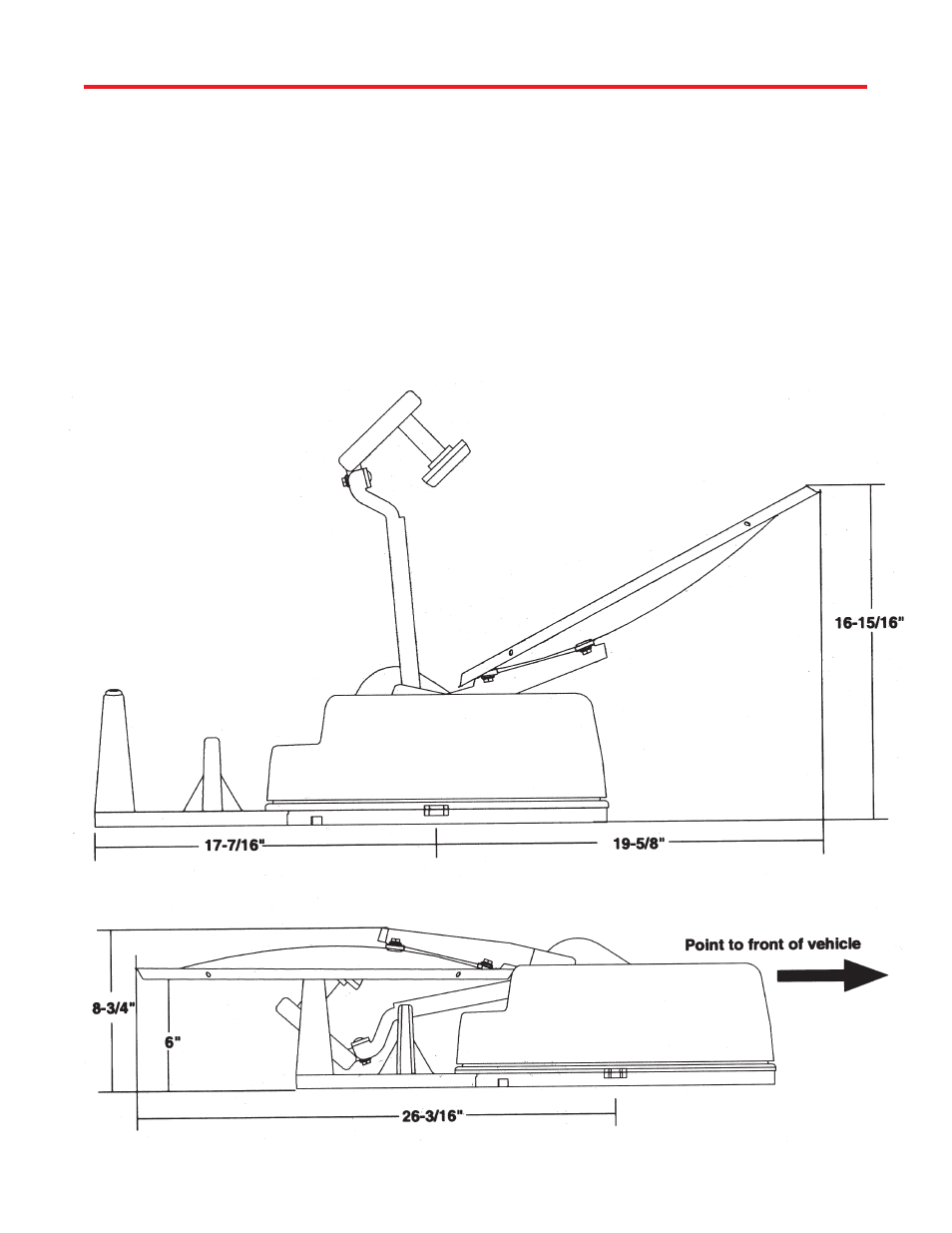

antenna/mount. See Figures 1, 2 and 3 for mount/antenna clearance.
If you do not have an area large enough, you can build up the mount
so that it will clear ALL obstructions.
B. A roof plan of your RV/coach showing the rib locations. This is required
so that you may anchor the mount securely. Figure 4 shows bolt hole
pattern and size.
C. You must level your RV/coach before you proceed to install the
mount. This is required to properly level the mount on the roof.
Figure 2
Rev 9/98
Figure 1
