29
Model RD-9900 PINNACLE
POSITIONER
by WINEGARD
SELECT B
SELECT A

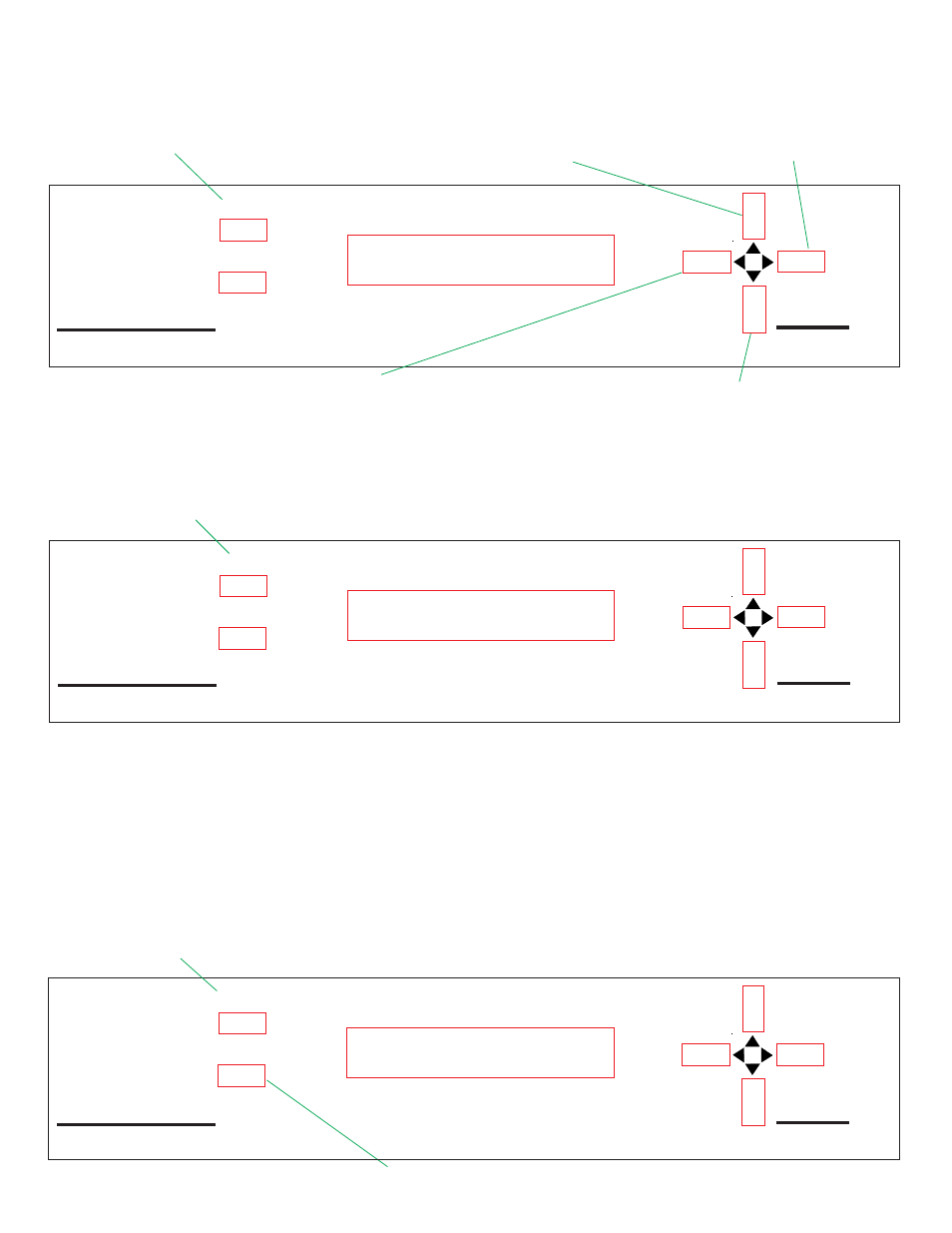

5. Press [ARROW BUTTONS] to enter correct elevation, Figure 14.
Figure 14
4. Press UP arrow button to
increase elevation by 1
o
increments
4. Press RIGHT arrow
button to increase elevation
by 5
o increments
5. Press SELECT A
Model RD-9900 PINNACLE
POSITIONER
by WINEGARD
SELECT B
SELECT A
7. Press SELECT A if correct satellite was found
Press SELECT B if correct satellite was not found
El Angle = 45
4. Press LEFT arrow button to decrease
elevation by 5
o increments
4. Press DOWN arrow button to
decrease elevation by 1
o increments
6. Press [SELECT A] Start Search, Figure 15. This will begin the search for
the satellite. If you selected the wrong elevation, press [SELECT B] Quit, this
will return you to step 3. Repeat 3 through 5 to select the correct elevation.
Model RD-9900 PINNACLE
POSITIONER
by WINEGARD
SELECT B
SELECT A
6. Press SELECT A
Start Search
Quit
Figure 15 7. Verify that system has found correct satellite (you will get a picture). Since
the DBS services use a digital signal and the satellites are only separated by
9
o , the system can find the wrong satellite. Press [SELECT A] if correct
satellite was found, Figure 16. You are now ready to watch satellite TV! If the
wrong satellite was found, press [SELECT B] to continue the search.
If no satellite was found, the message Satellite Not Found, Press Any
Button, will be displayed by the positioner. Press any button to return to the
menu shown in Figure 12, page 9.
Correct Satellite
Continue Search
Figure 16
