NOTE: This provides an alternative method
for identifying your door sections/stacking
position.

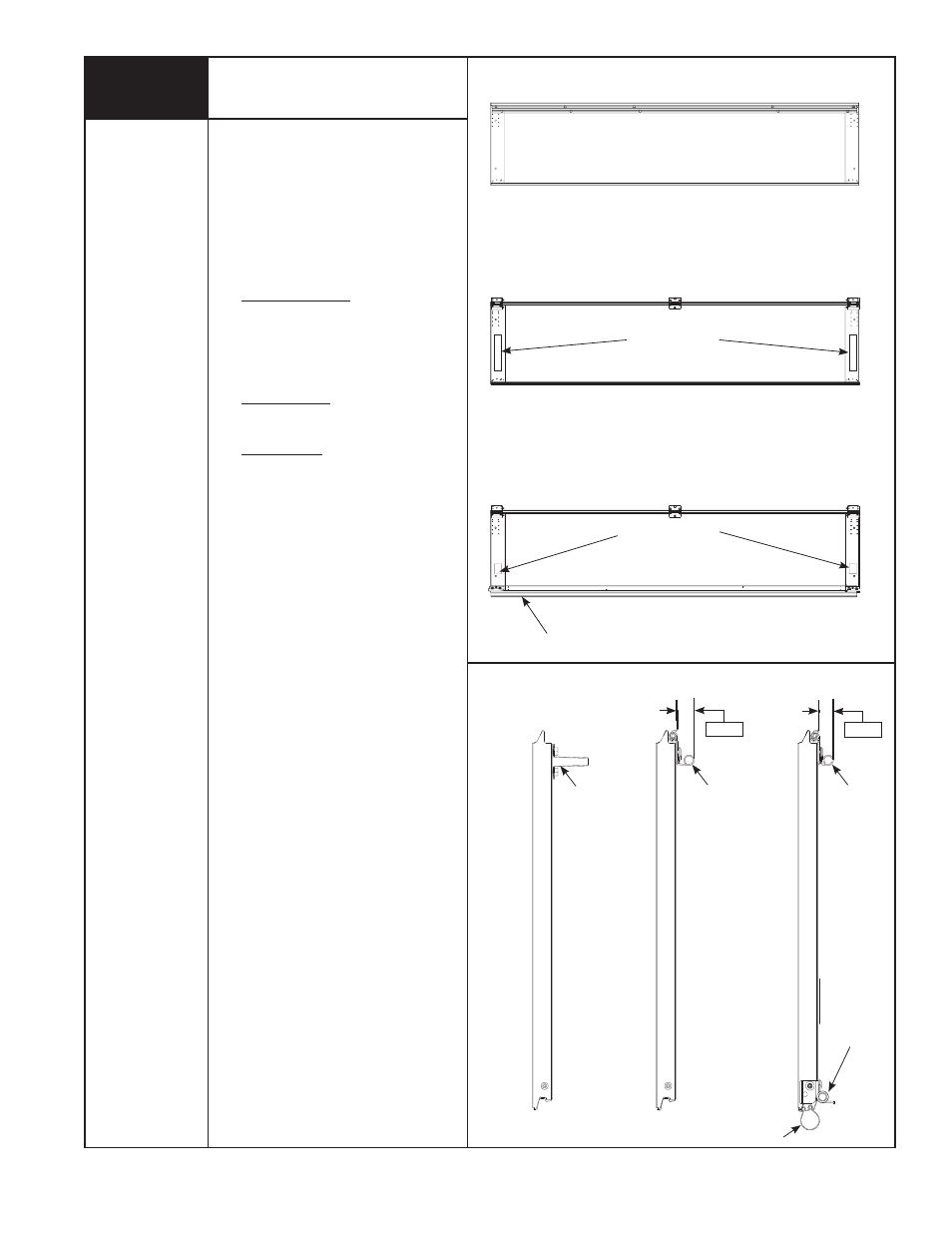

The section side view illustration shows
the end hinge profile of all the sections,
and can also be used in conjunction with
identifying each sections.
The BOTTOM SECTION can be identified
by a #1 single end hinge, the factory
attached bottom astragal, or by the
bottom bracket warning labels on each
end stile.
The LOCk SECTION can be identified by
a #3 single end hinge.
The TOP SECTION can be identified with
no pre-installed end or center hinges and
u-bar attached to the top section.
SECTION SIdE vIEw
Door Section Identification
TOP sECTION
lOCk sECTION
bOTTOM sECTION
bOTTOM bRaCkET
WaRNING labEls
asTRaGal
asTRaGal
bOTTOM
bRaCkET
bOT. lOCk TOP
#3 END
hINGE #1 END
hINGE
1 3/8” 7/8”
u-baR
WaRNING labEl
(May bE ON RIGhT OR lEFT haND sIDE)
