Attaching horizontal Track to
Adjustable flagangle
NOTE: If quick install flagangles were
installed in step 13, skip this step and
continue with step 15. If not, complete
this step.

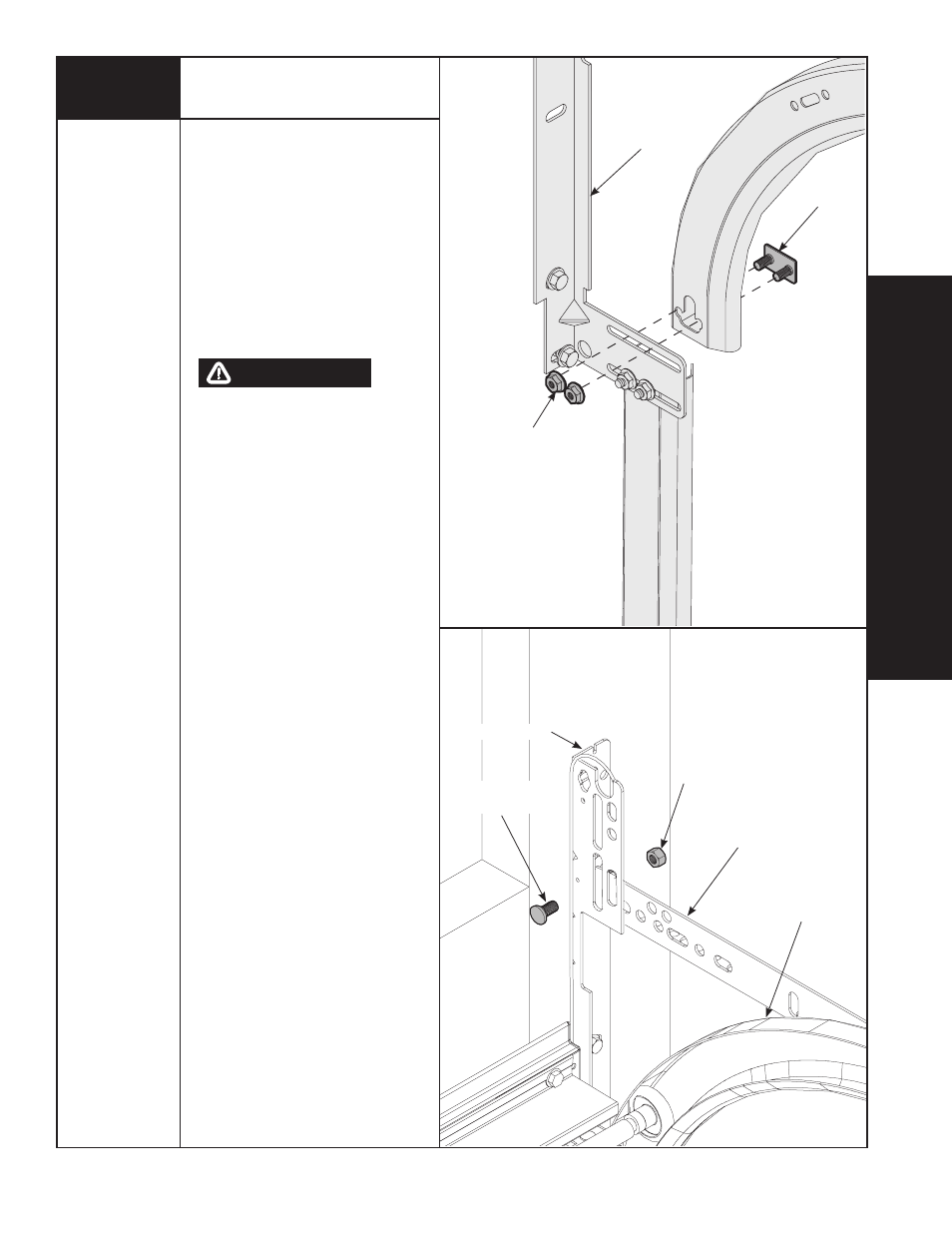

To install horizontal track, place the
curved end over the top roller. align
the bottom of the horizontal track with
the vertical track. hand tighten the
horizontal track to the flagangle with
(1) stud plate and (2) 1/4” - 20 flange
hex nuts.
DO NOT RaIsE DOOR uNTIl
hORIzONTal TRaCks aRE sE CuRED
aT REaR, as OuTlINED IN sTEP 33, OR
DOOR COulD Fall FROM OVERhEaD
POsI TION CausING sEVERE OR FaTal
INjuRy.
level the horizontal track assembly and
bolt the horizontal angle to the slot in
the flagangle using (1) 3/8” - 16 x 3/4”
truss head bolt and (1) 3/8” - 16 hex
nut. Repeat for other side. Remove the
nail that was temporarily holding the
top section in place, installed in step
12.
IMPORTANT: FaIluRE TO REMOVE NaIl
bEFORE aTTEMPTING TO RaIsE DOOR
COulD CausE PERMaNENT DaMaGE
TO TOP sECTION.
NOTE: If an
idrive ® opener will be
installed, position horizontal tracks
slightly above level.
14
9/16” socket
7/16” socket
Ratchet Wrench
9/16” Wrench
level
Flat tip
screwdriver
WARNING
1/4”-20 FlaNGE
hEx NuTs
FlaGaNGlE
3/8” - 16 x 3/4”
TRuss hEaD bOlT
3/8” - 16 hEx NuT
hORIzONTal
TRaCk
hORIzONTal aNGlE
FlaGaNGlE
INST
ALLA
TION
sTuD
PlaTE
