Tools Needed:

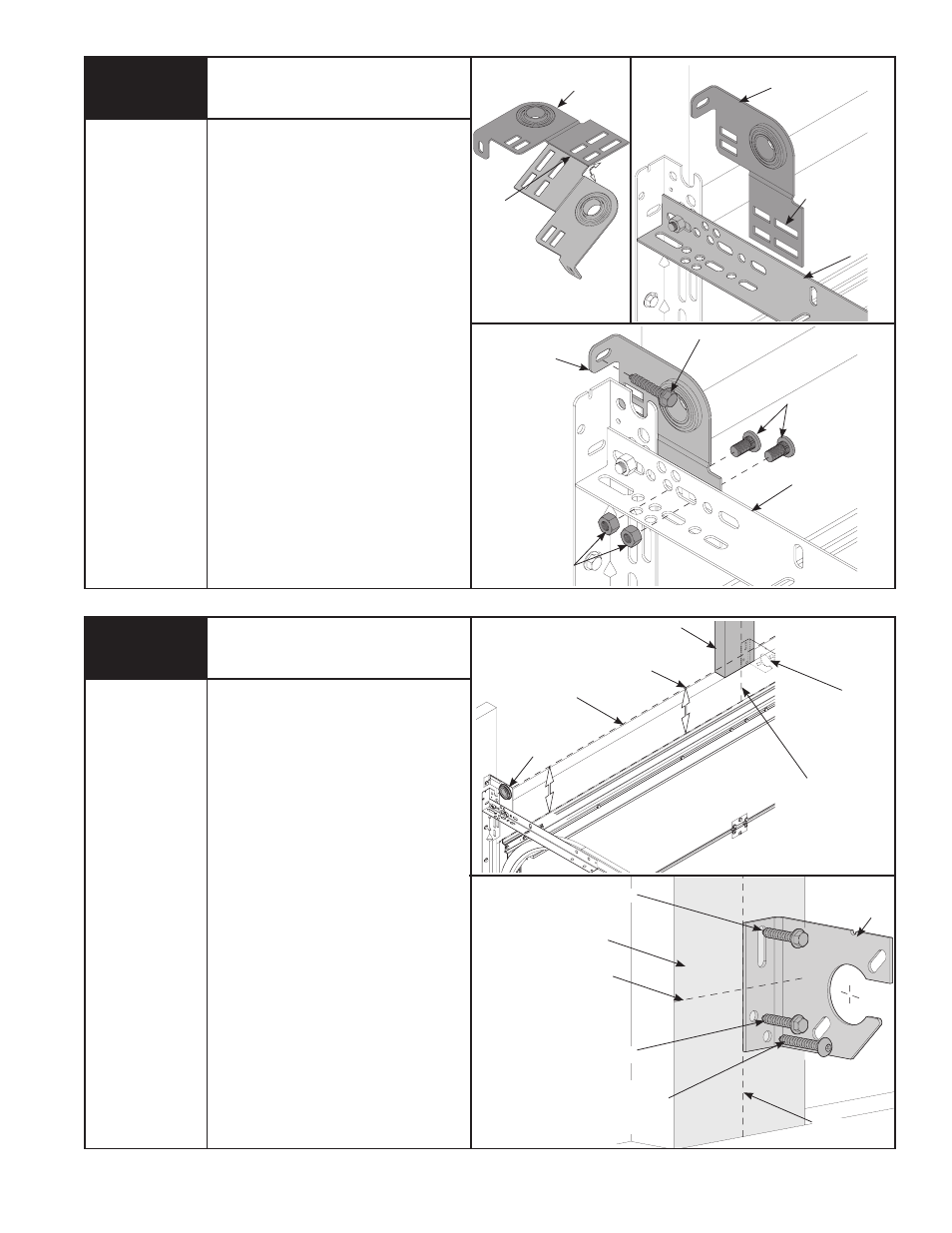

Torsion End Bearing Brackets
End bearing brackets are right and left
hand. break the end bearing brackets
apart.
starting on the left hand side and using
the upper slots in the end bearing
bracket, position above the flagangle
and secure the end bearing bracket to
the horizontal angle using (2) 3/8”-16
x 3/4” truss head bolts and (2) 3/8”-16
nuts.
IMPORTANT: END bEaRING bRaCkETs
MusT bE aTTaChED ThROuGh ThE
uPPER slOTs ON 15” RaDIus TRaCk.
Once the bracket is secured to the
horizontal angle, secure the top of the
end bearing bracket to the jamb using
(1) 5/16” x 1-5/8” lag screw. Repeat for
right hand side.
NOTE: Right and left hand is always
determined from inside the building
looking out.
step l
adder
Power Drill
Ratchet Wrench
7/16” socket
Driver
9/16” socket
Driver
9/16” Wrench
lEFT haND
END bEaRING
bRaCkET
uPPER slOTs
usED ON 15”
RaDIus TRaCk
(1) 5/16” x 1-5/8”
laG sCREW
(2) 3/8”-16 x 3/4”
TRuss hEaD bOlTs
(2) 3/8”-16 NuTs
Center Bearing Bracket
Power Drill
7/16” socket
Driver
level
Tape Measure
Pencil
1/4” Torx bit
Measure to locate the center of the door
and mark a vertical pencil line on the
mounting surface above the door, to
indicate the center line of the door. Then,
measure from the center of the bearing, in
one of the end bearing brackets, DOWN to
the top of the door. using that dimension,
measure uP from the top of the door
and mark a horizontal pencil line on the
mounting surface, intersecting the vertical
pencil line. Now align the edge of the center
bearing bracket along the vertical pencil
line on the mounting surface. Center the
bearing bracket on the horizontal line. This
will ensure the torsion tube is level between
the center and end bearing brackets. attach
the center bearing bracket, in this location,
to the mounting surface, using
(2) 5/16” x 1-5/8” lag screws and (1) 5/16”
x 2” tamper-resistant lag screw.
IMPORTANT: usE ThE 5/16” x 2” TaMPER-
REsIsTaNT laG sCREW ONly IF MOuNTING
suRFaCE MOuNTED OVER MasONRy.
TaMPER-REsIsTaNT laG sCREW MusT bE
aTTaChED ThROuGh ThE bOTTOM hOlE
OF ThE CENTER bEaRING bRaCkET.
VERTICal lINE
MOuNTING suRFaCE
Equal DIsTaNCE
CENTER OF
END bEaRING
bRaCkET
hORIzONTal lINE
CENTER bEaRING
bRaCkET
CENTER
bEaRING
bRaCkET
(1) 5/16” x 1-5/8” laG sCREW
(1) 5/16” x 1-5/8” laG sCREW
MOuNTING
suRFaCE
hORIzONTal lINE
VERTICal
lINE
15
16
(1) 5/16” x 2”
TaMPER-REsIsTaNT laG sCREW OR
(1) 5/16” x 1-5/8” laG sCREW
hORIzONTal
aNGlE
lEFT haND
END bEaRING
bRaCkET
RIGhT haND END
bEaRING bRaCkET
bREak
ThE END
bEaRING
bRaCkETs
aPaRT
hORIzONTal
aNGlE
