Side Lock

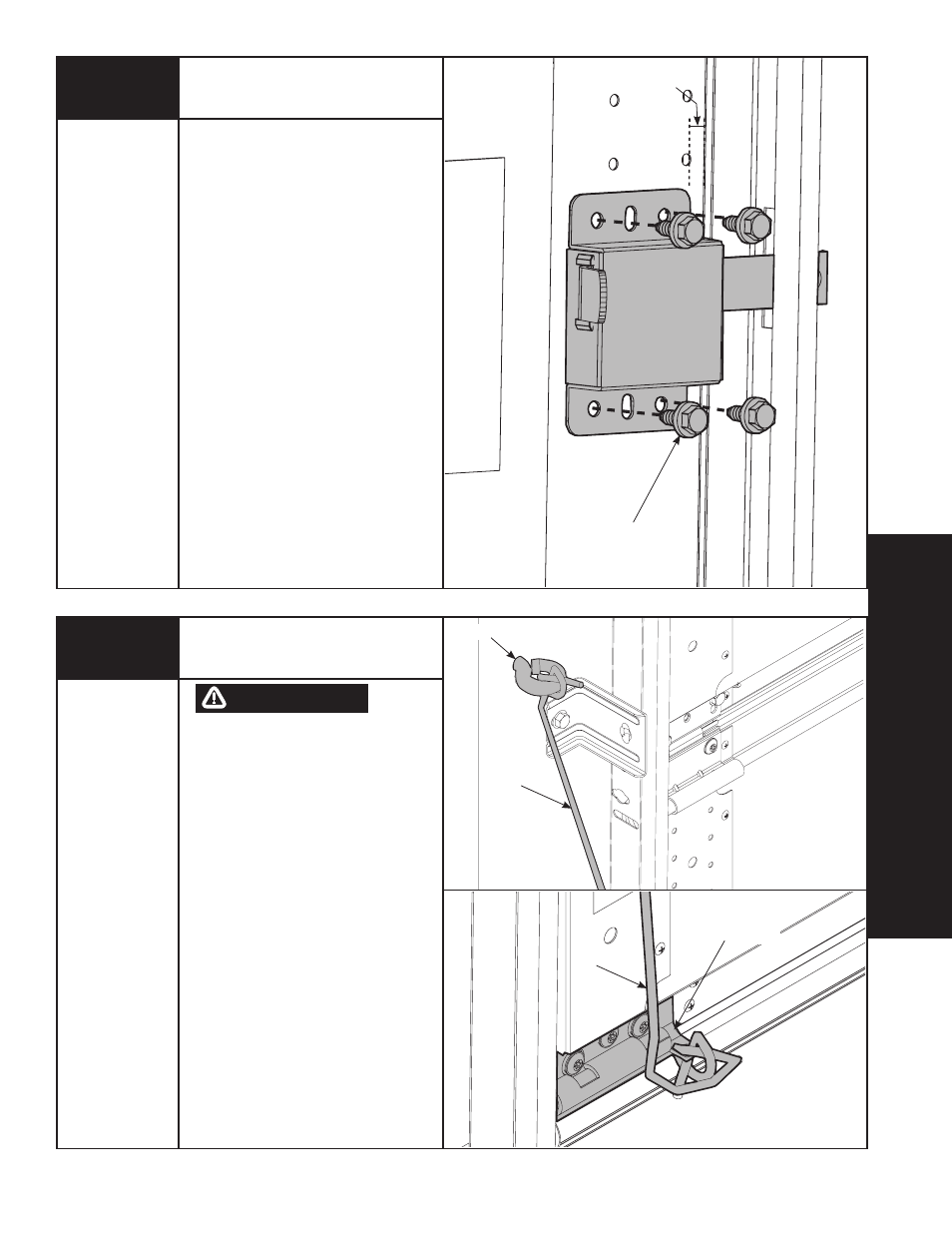

Install the side lock on the second
section of the door. secure the lock to
the section with (4) 1/4”- 20 x 11/16”
self drilling screws. square the lock
assembly with the door section and
align with the square hole in the vertical
track. The side lock should be spaced
in approximately 1/8” from the section
edge.
IMPORTANT: sIDE lOCks MusT bE
REMOVED OR MaDE INOPERaTIVE IN
ThE uNlOCkED POsITION IF aN
OPERaTOR Is INsTallED ON ThE DOOR.
NOTE: after completing this step,
continue with step 10 on page 17.
�
(4) 1/4”- 20 x 11/16”
sElF DRIllING sCREWs
1/8”
Power Drill
7/16” socket
Driver
Pull Rope
NO. 6 sCEW EyE
Pull ROPE
bOTTOM bRaCkET
Pull ROPE
WARNING
�
DO NOT INsTall Pull ROPEs
ON DOORs WITh ElECTRIC
OPERaTORs. ChIlDREN May
bECOME ENTaNGlED IN ThE
ROPE CausING sEVERE OR
FaTal INjuRy.
Measure and mark the jamb
approximately 48” to 50” (1220 to 1270
mm) from floor on the right or left side
of jamb. Drill 1/8” pilot hole for No. 6
screw eye. Tie the pull rope to the No.
6 screw eye and to the bottom bracket
as shown.
OPTIONAL
INST
ALLA
TION
Power Drill
1/8” Drill bit
