24

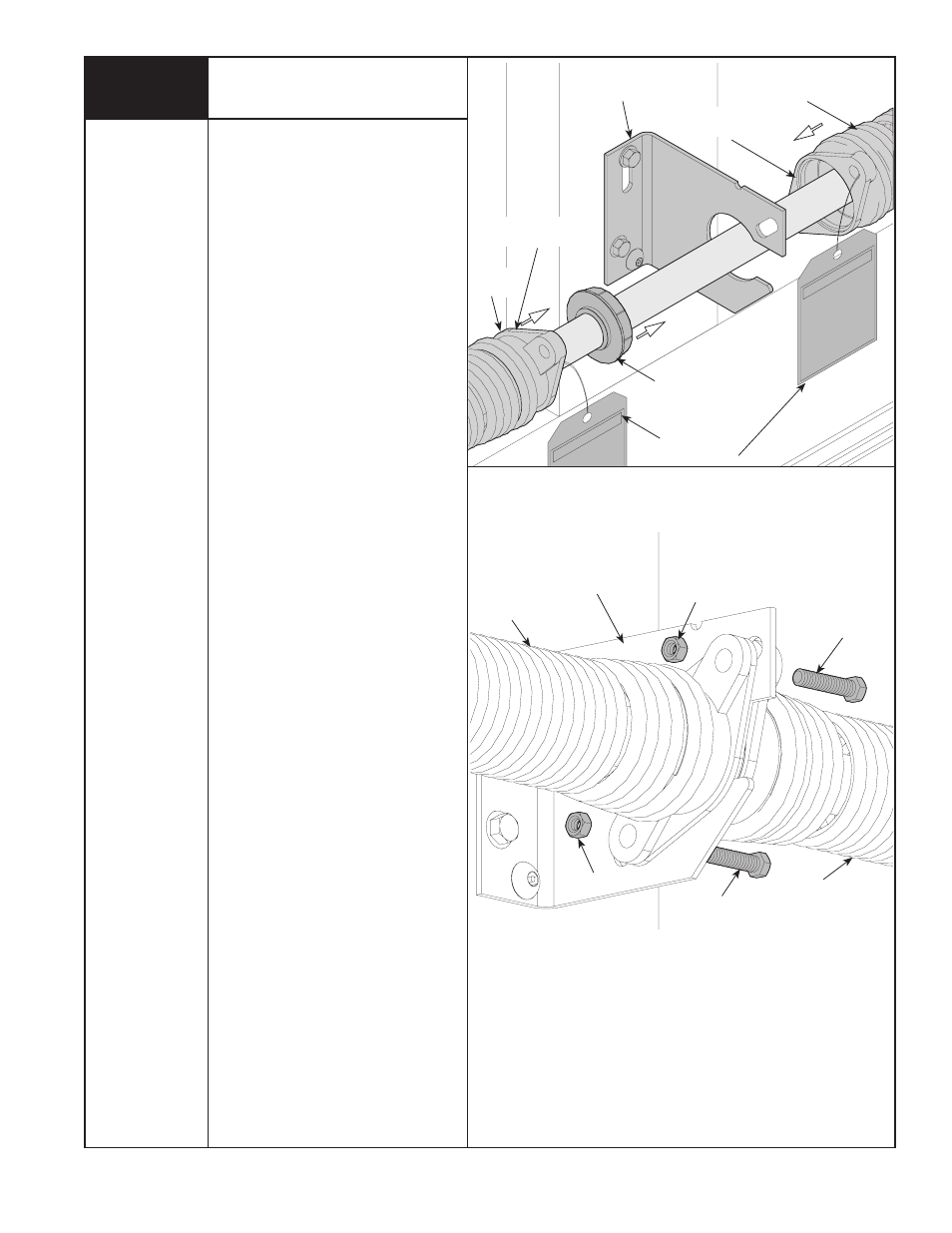

slide the nylon center bushing into the
stationary spring cone at the end of the
spring and align the stationary spring
cone(s) with the holes in the center
bearing bracket. secure the spring(s) to
the center bearing bracket with (2)
3/8”-16 x 1-1/2” hex head bolts and
3/8”-16 nuts.
IMPORTANT: sPRINGs uNDER TENsION
CaN bE DaNGEROus.
IMPORTANT: ThE sPRING WaRNING
TaG(s) suPPlIED MusT bE sECuREly
aTTaChED TO ThE sTaTIONaRy sPRING
CONE IN PlaIN VIEW. shOulD a
REPlaCEMENT sPRING WaRNING TaG
bE REquIRED, CONTaCT WayNE-
DalTON CORP. FOR FREE
REPlaCEMENTs.
18
Nylon Center Bushing
TORsION sPRING
TORsION sPRING
(1) 3/8”-16 x 1-1/2”
hEx hEaD bOlT
(1) 3/8”-16 NuT
(1) 3/8”-16 x 1-1/2”
hEx hEaD bOlT
(1) 3/8”-16 NuT
CENTER bEaRING
bRaCkET
TORsION
sPRING
TORsION sPRING
NylON CENTER
bushING
CENTER bEaRING
bRaCkET
sPRING
WaRNING TaG
sTaTIONaRy
sPRING CONE
sTaTIONaRy
sPRING CONE
