Tools Needed:
horizontal Angle
hammer
hORIzONTal
TRaCk
hORIzONTal
aNGlE
hORIzONTal aNGlE
hORIzONTal TRaCk
hOlE
hOlE
Tabs
kEy slOT
3
hORIzONTal
TRaCk
Tab
hORIzONTal
TRaCk
hORIzONTal
aNGlE
hOlE
alIGNED

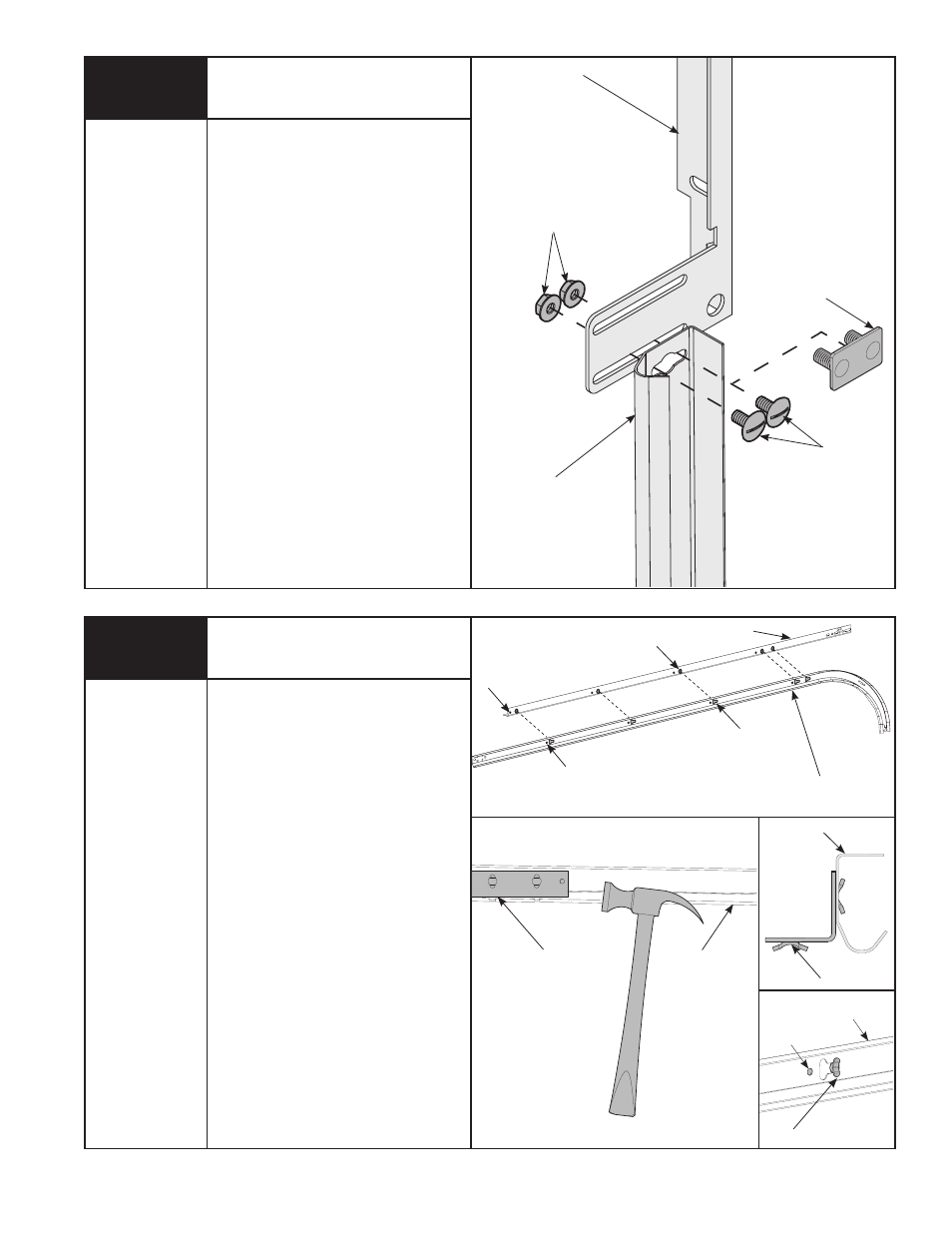

Position the horizontal angle as shown.
Place tabs of horizontal angle in the key
slot of horizontal track. using a hammer,
tap the horizontal angle towards the
curved end of the track until the hole in
track and angle are aligned. set tracks
aside.
NOTE: For some doors, a full length
horizontal angle may be spot welded to
the horizontal track. If the horizontal angle
is not welded, the horitzontal angle must
be installed as shown.
Attaching fully Adjustable
flagangle to Vertical Track
1/4”- 20
FlaNGE hEx
NuTs
NOTE: If quick install flagangle was
installed in step 1, skip this step and
continue with step 3. If not, complete
this step.
hand tighten the flagangle to the vertical
track using (2) 1/4” - 20 x 9/16” large
head ribbed track bolts (or stud plate if
included) and (2) 1/4” - 20 flange hex
nuts. Repeat for other side.
secure the flange nuts after flagangle
spacing is complete (step 12).
Fully aDjusTablE FlaGaNGlE
1/4” - 20 x 9/16”
laRGE hEaD RIbbED
TRaCk bOlTs
None
VERTICal TRaCk
2
sTuD PlaTE
(IF INCluDED)
