Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your

local yellow pages/business listings or go to the

Find a Dealer section online at www.wayne-dalton.com

Tools Needed:

�

OPTIONA

INST

All

ATION

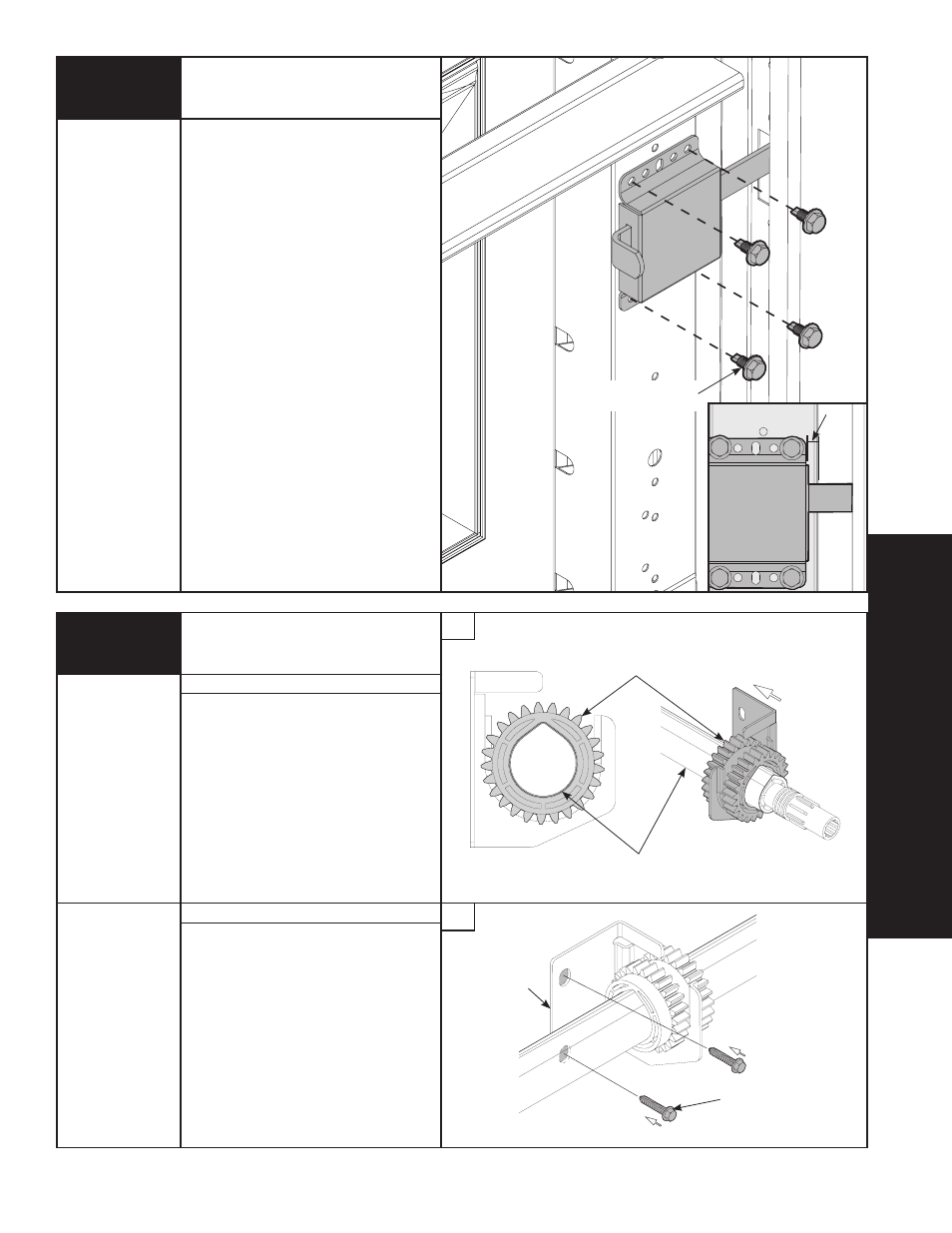

Side lock

Install the side lock on the second
section of the door. Secure the lock to
the section with (4) 1/4”- 20 x 11/16”
self drilling screws. Square the lock
assembly with the door section and
align with the square hole in the vertical
track. The side lock should be spaced
in approximately 1/8” from the section
edge.

IMPORTANT: SIDE LOCkS MuST BE
REMOVED OR MADE INOPERATIVE IN
ThE uNLOCkED POSITION If AN
OPERATOR IS INSTALLED ON ThE
DOOR.

NOTE: After completing this step,
continue with Step 13 on page 19.

(4) 1/4”- 20 x 11/16”

SELf DRILLING SCREWS

Power Drill

7/16” Socket

Driver

Tape Measure

1/8”

DoorMaster

bracket

NOTE: When installing a DoorMaster

operator use the center bracket and

drive gear supplied with your operator

(located in DoorMaster

package).

Slide the DoorMaster

bracket/drive

gear assembly onto the TorqueMaster

spring tube, so that the drive gear/center

bracket assembly are in the center of

the TorqueMaster

spring tube.

NOTE: After completing this step,

continue with step 20 on page 23.

DOORMASTER

BRACkET/ DRIVE

GEAR ASSEMBLy

TORquEMASTER

TuBE

DOORMASTER

BRACkET/

DRIVE GEAR ASSEMBLy

Locate the center bracket, mark the

header halfway between the flagangles

and level the TorqueMaster

spring

tube. Drill 1/8” pilot holes for the lag

screws. fasten the metal bracket to the

header using (2) 1/4” x 1-1/2” hex head

lag screws.

NOTE: After completing this step,

continue with step 29 on page 29.

Tools Needed:

Power Drill

1/8” Drill Bit

7/16” Socket

Driver

Tape Measure

Level

(2) 1/4” x 1-1/2” hEx

hEAD LAG SCREWS
