23
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
INST
All
ATION
20
Shake the TorqueMaster ® spring tube
gently to extend the winding shafts out
about 5" on each side.
NOTE: for single spring applications,
there will be no left hand spring in the
TorqueMaster
® spring tube.
Lift the TorqueMaster ® spring tube and
rest it on the top of the flagangles.
For idrive ® operated doors: Orient
TorqueMaster ® spring tube so that back
of opener is flat against header/
mounting surface.
NOTE: Cable drums are marked right
and left hand. Cable drums and
TorqueMaster
® spring tube are cam
shaped to fit together only one way.
To install the cable drum, slide the
correct cable drum over the winding
shaft until the cable drum seats against
the TorqueMaster
® spring tube. The
winding shaft must extend past the
cable drum far enough to expose the
splines and the groove.
Align the winding shaft groove with
the round notch in the flagangle.
For double spring applications:
Repeat for opposite side.
For single spring applications: Insert
the loose winding shaft into the left
hand cable drum prior to sliding the
cable drum over the TorqueMaster
®
spring tube.
NOTE: On single spring applications,
take care in handling the loose winding
shaft (left side) so that it does not slide
back into the TorqueMaster
® spring
tube.
None

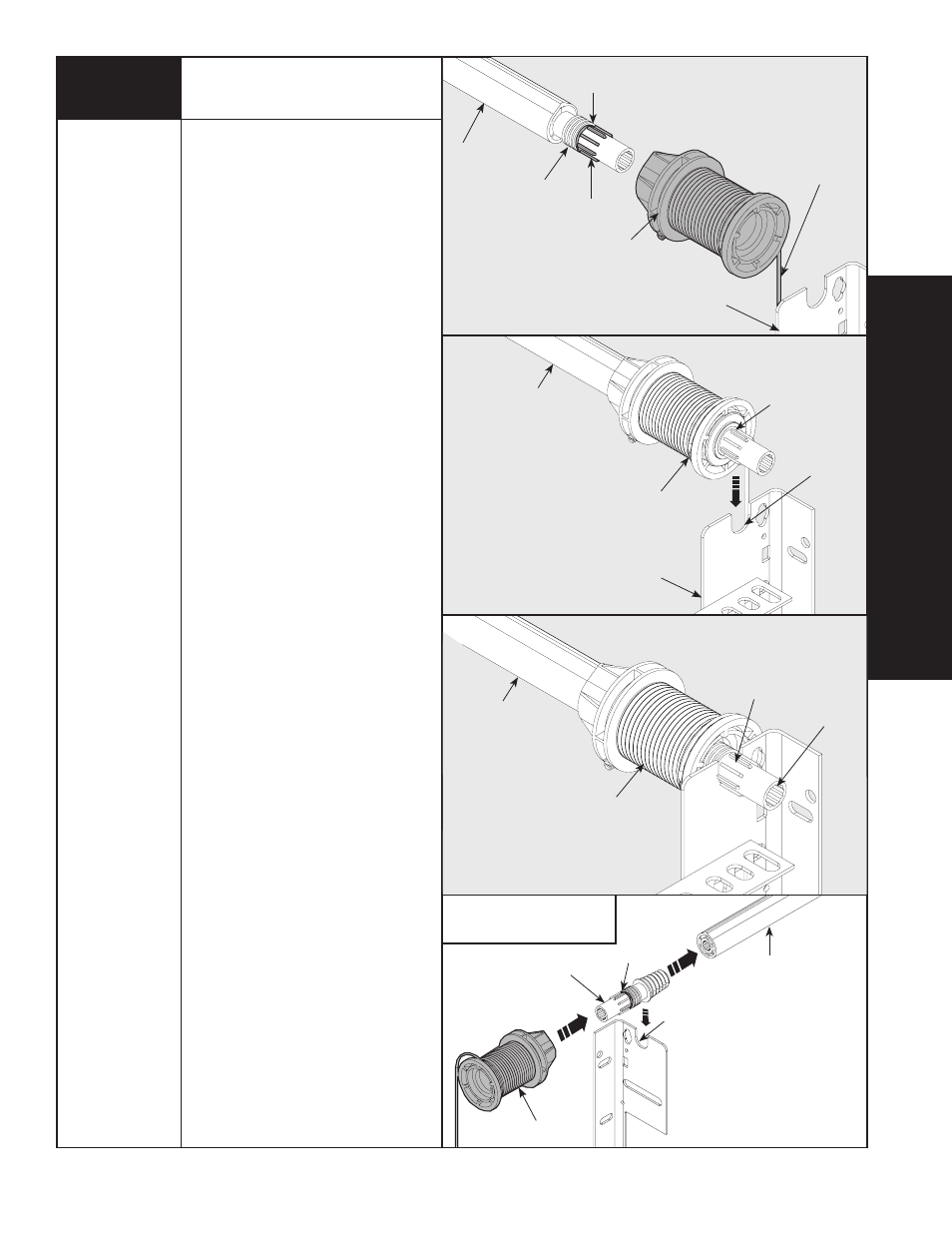

Cable Drum Installation
LOOSE
WINDING
ShAfT
left hand Side
Single Spring Application
GROOVE
TORquEMASTER ®
SPRING TuBE
TORquEMASTER ®
SPRING TuBE
WINDING
ShAfT
RIGhT hAND
CABLE DRuM
COuNTERBALANCE
CABLE
TORquEMASTER ®
SPRING TuBE
ROuND
NOTCh
WINDING
ShAfT GROOVE
SPLINES
GROOVE
fLAGANGLE
ROuND
NOTCh
TORquEMASTER ®
SPRING TuBE
ROuND
NOTCh
WINDING
ShAfT
fLAGANGLE
RIGhT hAND
CABLE DRuM
RIGhT hAND
CABLE DRuM
LEfT hAND
CABLE DRuM
